Home / Pilz / PNOZmulti 2 - communication modules / Pilz 772130

PilzUsed

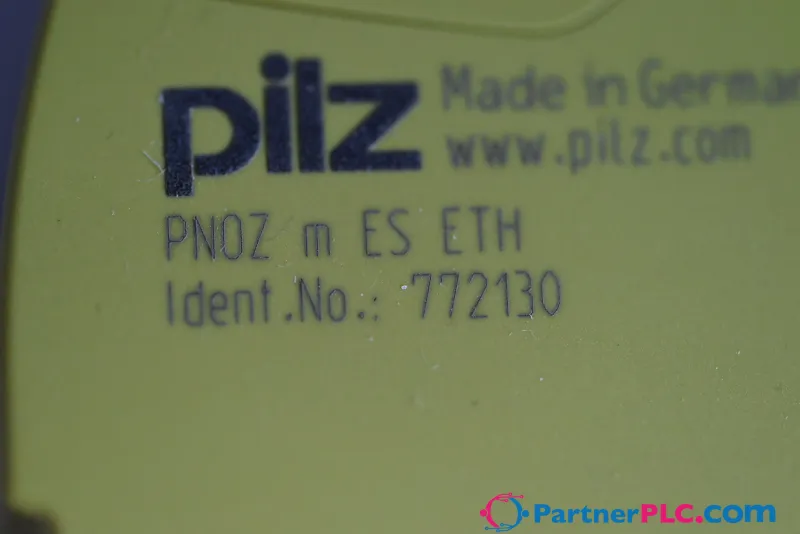

Pilz 772130

PNOZmulti 2 - communication module

MPN: 772130
EAN: 4046548069471
Category: PNOZmulti 2 - communication modules

€136.74excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

3-month warranty
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the Pilz 772130?

PNOZmulti 2 - communication module

Specifications

General data

Product ID (Pilz order number)	772130
Approval	CE, UKCA, cULus Listed, EAC (Eurasian)
Application range	Standard
Lifecycle	Active (current Pilz product)

Electrical data

Purpose of UINT1	Versorgung des Moduls
Source of internal voltage	über Basisgerät
Voltage type of UINT1	DC
Tolerance of UINT. Module	-2 %/+2 %

Ethernet interface

Ethernet IP address	169.254.60.1
Connector type ETHERNET int.	RJ45
Ethernet transmission rate	10 MBit/s, 100 MBit/s
Number of Ethernet interfaces	2

Fieldbus interface

Fieldbus interface	Modbus/TCP
Fieldbus device type	Slave
Connection fieldbus	RJ45
Galv. isolation fieldbus	ja

Environmental data

Ambient temperature standard	EN 60068-2-14
Ambient temperature	0 °C
Storage temperature standard	EN 60068-2-1/-2
Climatic suitability standard	EN 60068-2-30, EN 60068-2-78
Condensation permitted?	unzulässig
Perm. operating height ASL	2000 m
EMC to standard ...	EN 61131-2
Vibration to standard ...	EN 60068-2-6
Acc. shock to standard1	15g
Clearance & creepage dist. to	EN 61131-2
Overvoltage category	II
Pollution degree clear.&creep.	2
Protection type standard	EN 60529
Protection type, mounting	IP54
Protection type, housing	IP20
Terminal protection type	IP20

Potential separation

Potential isolation 1 between	Feldbus und Modul
Type of potential isolation 1	Funktionsisolierung

Mechanical data

Mounting position	waager. auf Hutschiene
DIN-rail dimensions	35 x 7,5 EN/IEC 60715, 35 x 15 EN/IEC 60715
Housing material lower section	PC
Housing material front plate	PC
Housing material upper part	PC
Height dimension	101.4 mm
Width dimension	22.5 mm
Depth dimension	111 mm
Net weight	80 g
Gross weight	90 g

Environment

RoHS directive	2011/65/EU, 2015/863/EU
RoHS conformity	yes
RoHS exceptions	no
REACh compliance	Contains no SVHC substances
WEEE classification (08/2018)	5 devices (feed size < 50cm)

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27242208
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000024
ETIM Reference Feature	EC001423
UNSPSC 25	39122331
GTIN	4046548069471
Volume	0.343 dm3
Harmonized System Code	85176200
Quantity per packaging unit	1

Downloads & documentation

Official documents from Pilz, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

Certificates (8)

772130: frequently asked questions

When can 772130 be shipped?

772130 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up 772130 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 772130.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 772130, subject to availability and destination.
