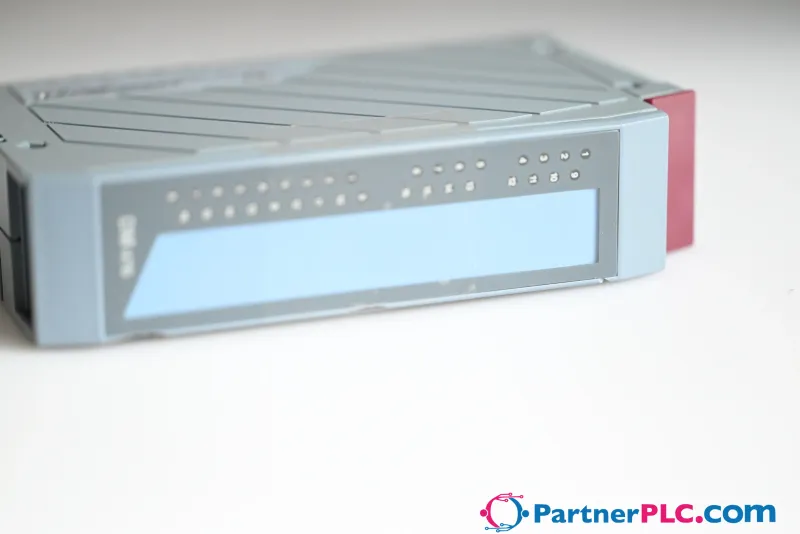

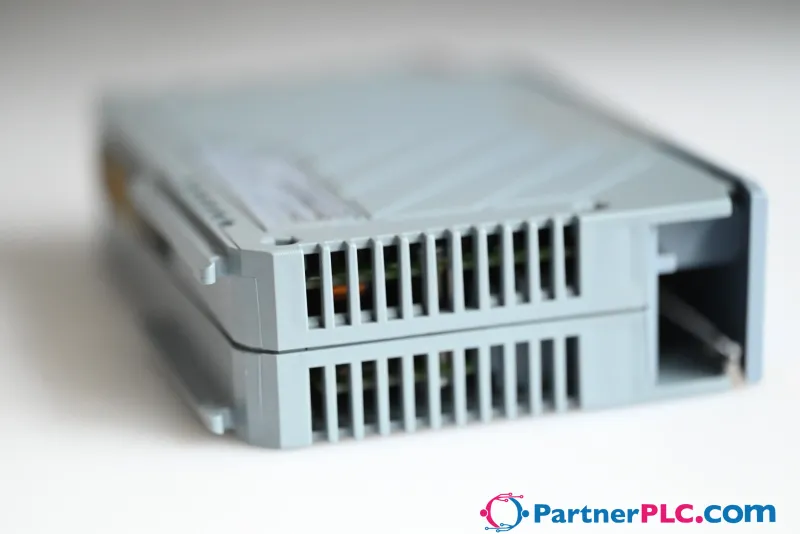

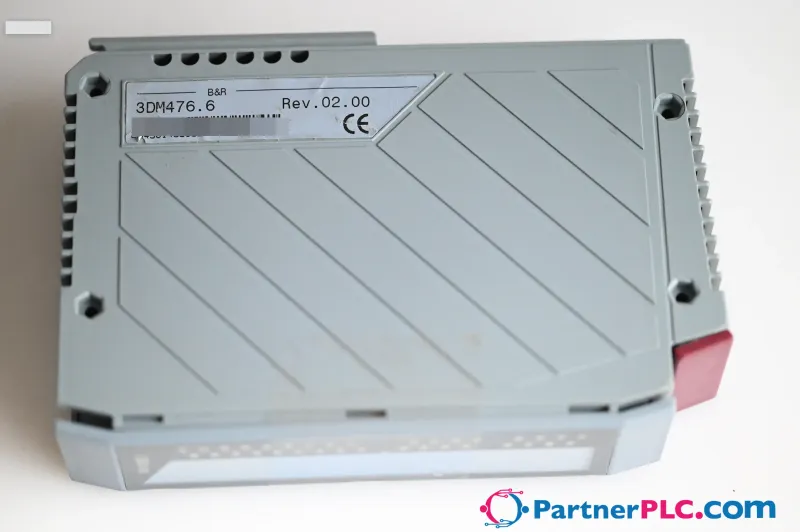

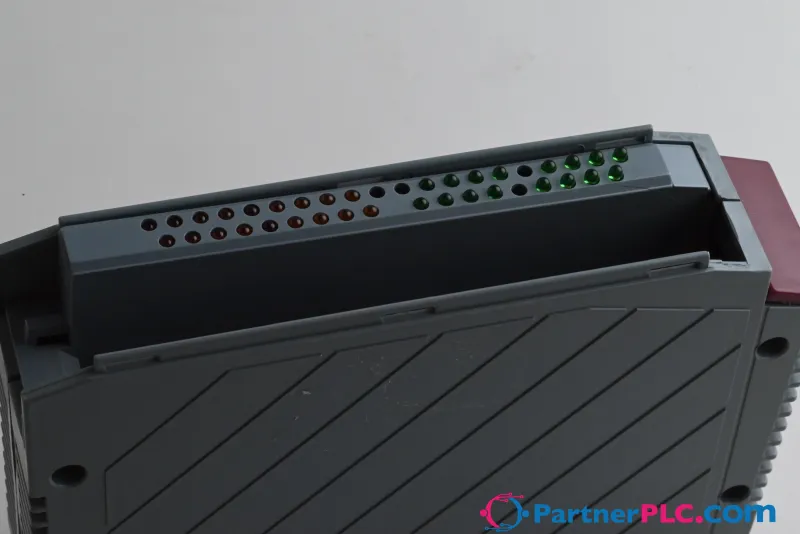

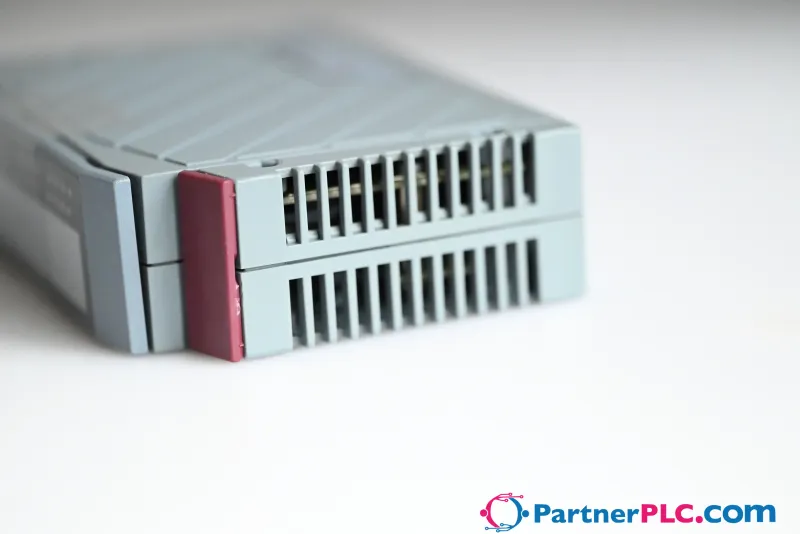

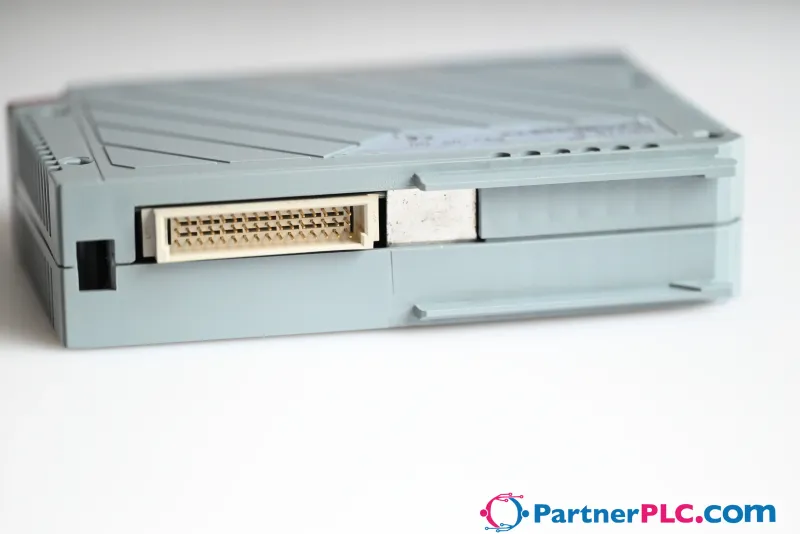

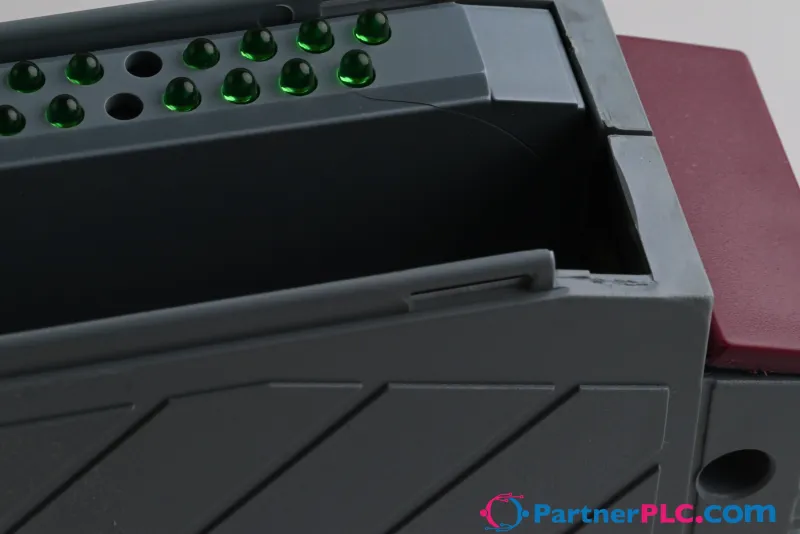

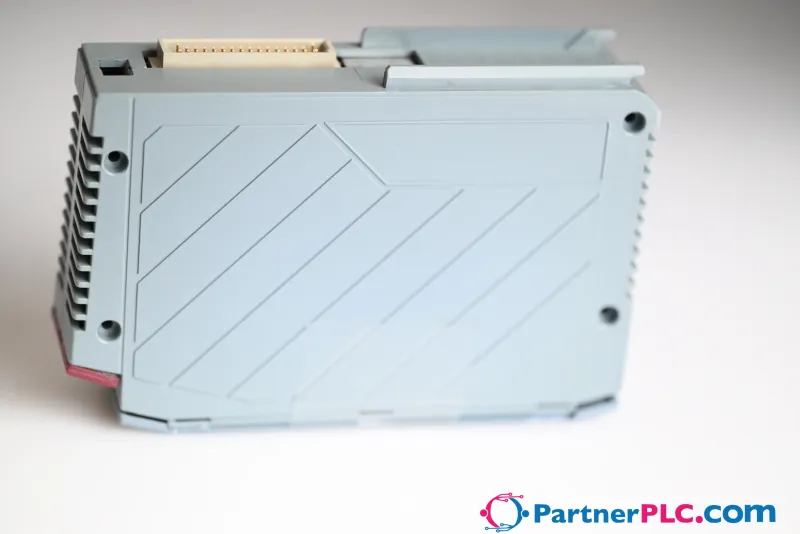

B&R 3DM476.6 Used - With Damage Rev. 02.00
Request a Quote
Quick facts
| Availability | In stock — 1 available |
| Category | Servo & Motion Control |
| Warranty | 3-month |
| Weight | 0.3 kg |
| Country of origin | AT |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 3DM476.6 be shipped?
3DM476.6 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up 3DM476.6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 3DM476.6.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3DM476.6, subject to availability and destination.
2005 digital mixed module, 16 inputs, 24 VDC / 24 VAC, 1 ms, DC: Sink/Source, 4 electrically isolated input groups, 16 transistor outputs, 24 VDC, 0.4 A
Specifications
Short description
| I/O module | 16 digital inputs, 16 digital outputs |
General information
| Diagnostics – Outputs | Yes, using LED status indicator |
| Diagnostics – Operating state of outputs | Yes, using LED status indicator and software |
| Power consumption – 24 VDC | - |
| Power consumption – 5 VDC | 2.5 W |
| Power consumption – Total | 2.5 W |
| Power consumption – External 24 V (DO) | 2.0 W |
| Electrical isolation – Group isolation | Input group - Input group input group - Output group |
| Electrical isolation – Channel - Channel | No |
| Electrical isolation – Channel - PLC | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Status indicators | I/O function per channel, operating state of the outputs |
Digital inputs
| Input filter – Hardware | ≤1 ms |
| Input filter – Software | - |
| Nominal voltage | 24 VDC |
| Input circuit | Sink or source |
Digital outputs
| Nominal voltage | 24 VDC |
| Nominal output current | 0.4 A |
| Total nominal current | 4.8 A |
| Output circuit | Source |
| Output protection | Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads, reverse polarity protection of the output power supply |
| Sensor power supply | External |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 60°C |
| Temperature – Storage | -25 to 70°C |
| Relative humidity – Operation | 5 to 95% |
Mechanical properties
| Dimensions – Width | System 2005 single-width |
| Can be installed on – Base unit | Yes |
| Can be installed on – Expansion unit | Yes |
| Note | The connection is made via DSUB connectors and ribbon cable. |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 3DM476.6 | PDF · 539 KB · 1.0 (06/08/2004) - EN |
