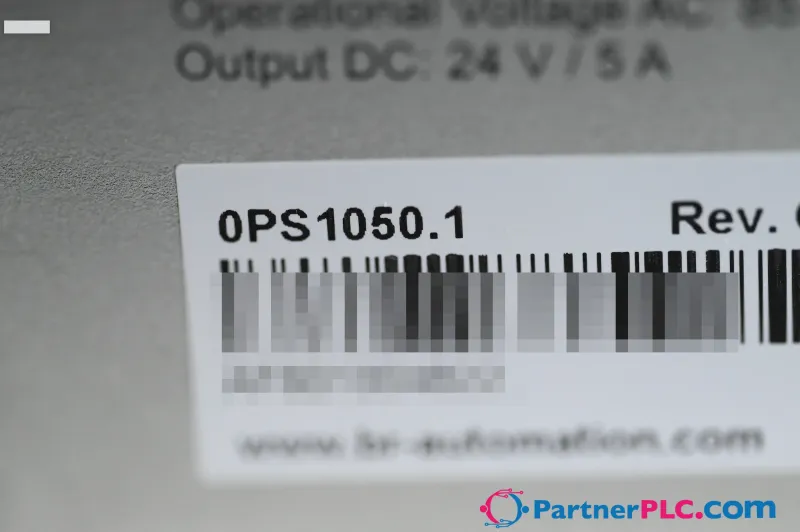

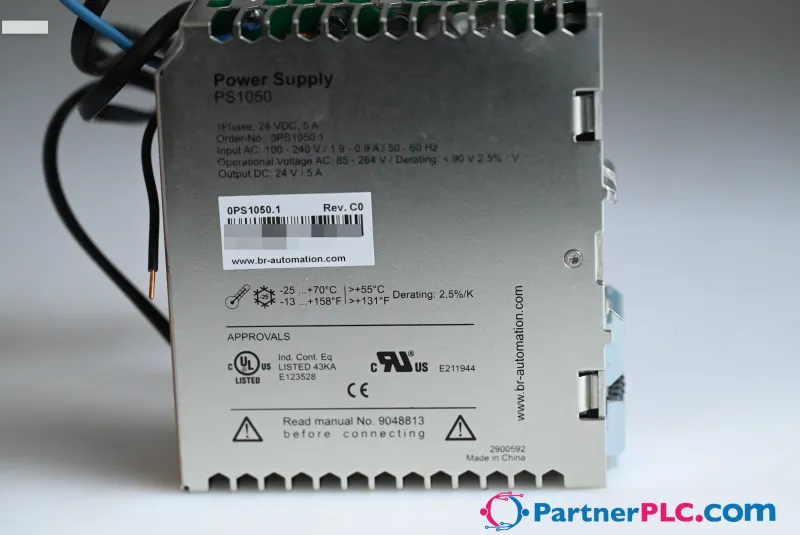

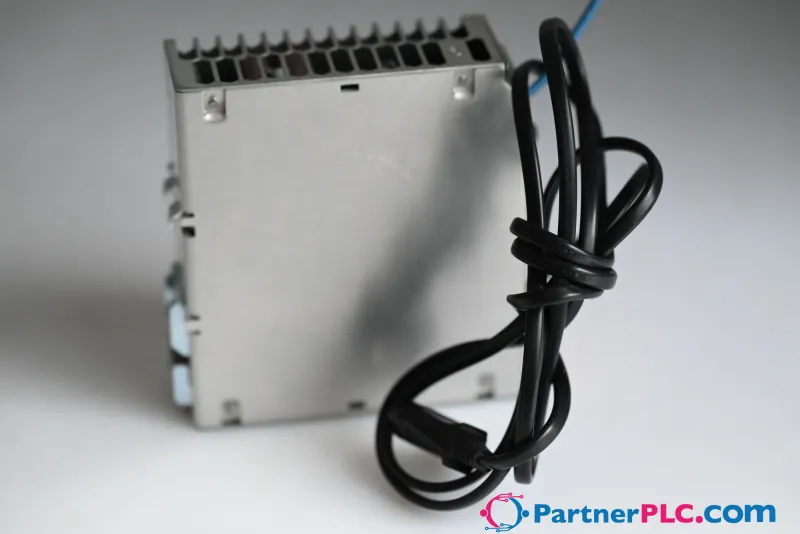

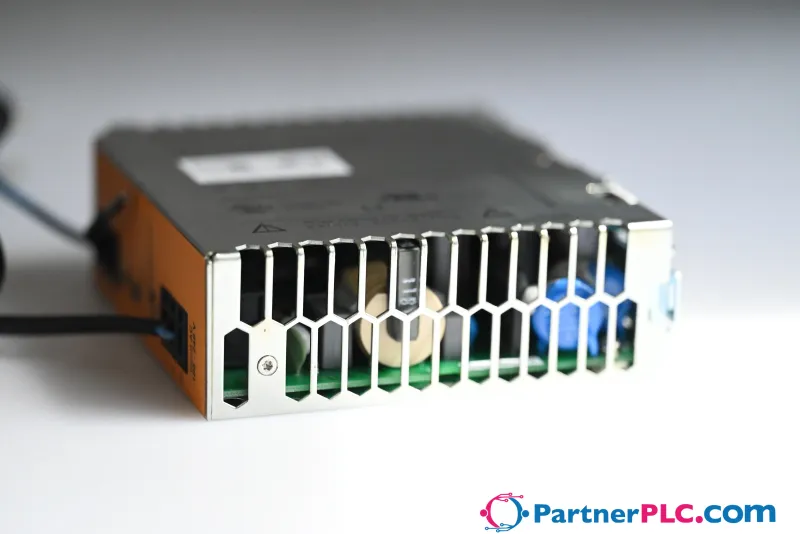

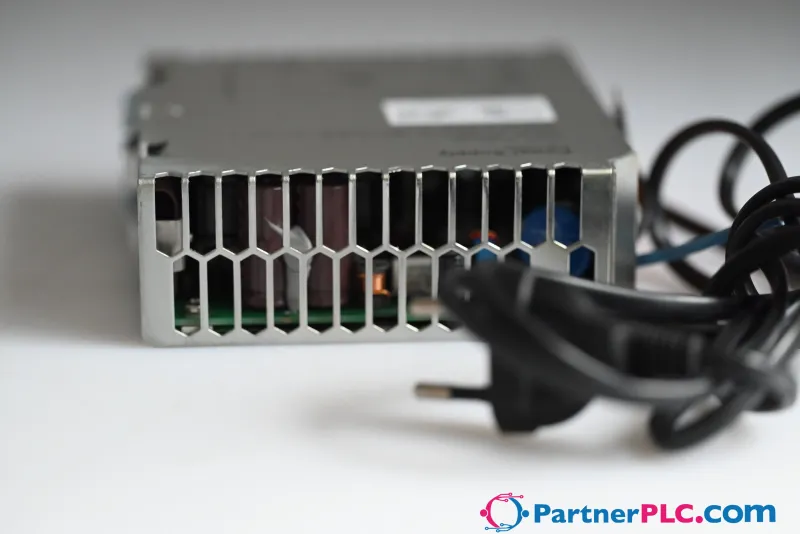

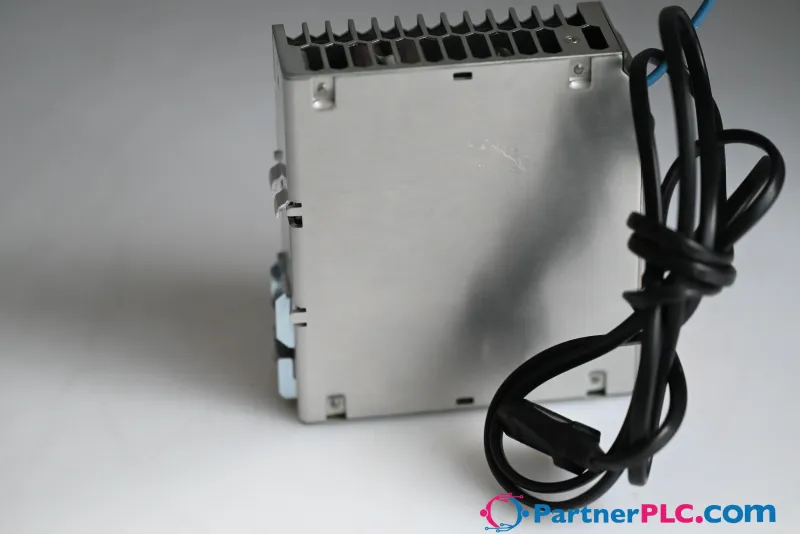

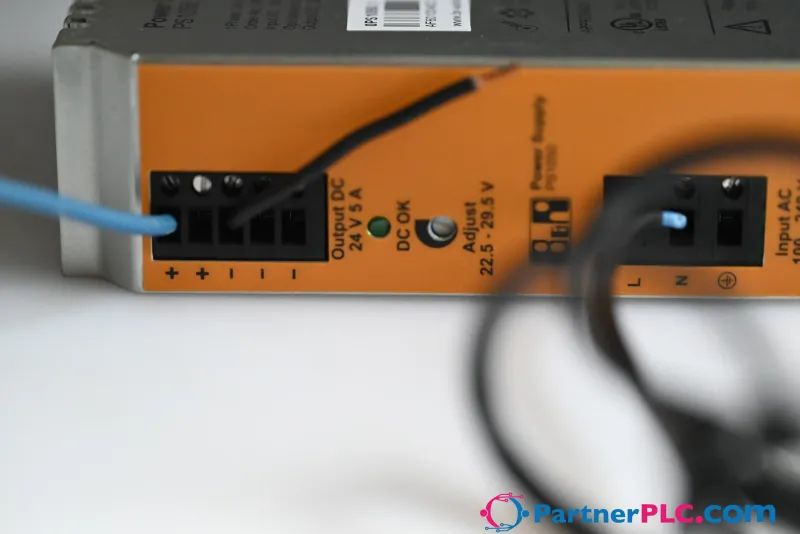

B&R 0PS1050.1 Used Rev. C0
Request a Quote
Quick facts
| Availability | In stock — 1 available |
| Category | Power Supplies |
| Warranty | 3-month |
| Weight | 0.63 kg |
| Country of origin | AT |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 0PS1050.1 be shipped?
0PS1050.1 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up 0PS1050.1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 0PS1050.1.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0PS1050.1, subject to availability and destination.
• 100 to 240 VAC wide-range input
• High dielectric strength
• Can be connected in parallel for increased capacity and redundancy
• Reliable operation due to long power failure bypass function under full load and high MTBF (>500,000 h)
• International certification package
• Wide temperature range from -25 to 70°C
• Slender design
• Closed metal housing
24 VDC power supply, 1-phase, 5 A, input 100 to 240 VAC, wide range, top-hat rail installation
Specifications
General information
| Isolation voltage – Input - Output | 4 kV AC (type test); 2 kV AC (routine test) |
| Isolation voltage – Input - PE | 2 kV AC (type test); 2 kV AC (routine test) |
| Isolation voltage – Output - PE | 500 VDC (type test) |
| Connection cross section – Wire end sleeves | Flexible cables require wire end sleeves in order to fulfill EN 62368 / UL 60950 |
| Connection cross section – Flexible | 0.2 to 2.5 mm² / 24 to 14 AWG |
| Connection cross section – Inflexible | 0.2 to 2.5 mm² / 24 to 14 AWG |
| Certification – CE | Yes |

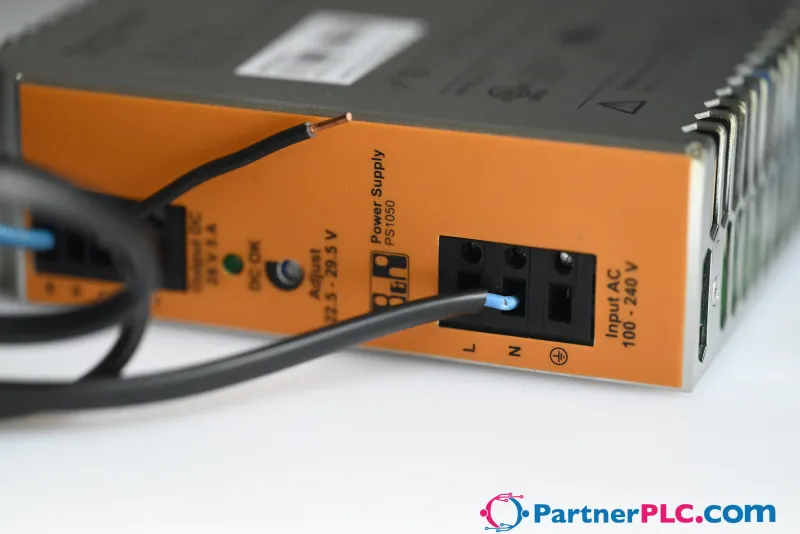

| Status display | Green LED (DC OK), threshold value U out = 21.5 V |
| Type of connection | Screw terminal |
| Wire stripping length | 9 mm (input/output) |
Input
| Nominal input voltage | 100 to 240 VAC |
| Input voltage | AC 85 to 264 V (wide range), 45 to 65 Hz |
| Input current | Approx. 1.65 A (120 VAC) ; Approx. 0.9 A (230 VAC) |
| Starting current limitation | <15 A |
| I 2t | 1.1 A 2s |
| Power failure bypass | >20 ms (120 VAC); >110 ms (230 VAC) |
| Turn-on time | <1 s |
| Power factor (cos φ) | 0.72 |
| Discharge current to PE | <3.5 mA |
| Protective circuit | Transient surge protection with varistor |
| Internal fuse | 3.15 A slow-blow |
| Required line fuse for line protection | 6 A ; 10 A ; 16 A (characteristic B) |
Output
| Output current – -25 to 55°C | 5 A |
| Output current – >55°C | Derating: 2.5% per °C |
| Nominal voltage | 24 VDC ±1% |
| Output power | 120 W |
| Setting range for output voltage | 22.5 to 29.5 VDC |
| Current limitation | Approx. 10 A (for short circuit) |
| Control deviation | <1% (static load change 10 to 90%); <2% (dynamic load change 10 to 90%); <0.1% (input voltage change ±10%) |
| Rise time | <2 ms (U OUT (10 to 90%)) |
| Residual ripple | <20 mV SS |
| Switching spikes | <30 mV SS |
| Can be connected in parallel | Yes, to establish redundancy and increase capacity |
| Can be connected in series | Yes |
| Max. capacitive load | Unlimited |
| Protection against internal overvoltages | Yes, limited to <35 VDC |
| Protection functions | Output protected against continuous short circuit, open circuit and overload |
| Power back immunity | Max. 35 VDC |
| Output noise suppression | Device complies with EN 55011 (class B) |
Efficiency, reliability
| Power loss – Rated load | Max. 18 W |
| Power loss – No-load operation | Max. 1.1 W |
| Effectiveness | >89% |
| MTBF | >500,000 h, per IEC 61709 (SN 29500) |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | No |
| Installation at elevations above sea level – Maximum | 4000 m |
| Ventilation / Cooling | Normal convection, no fan required |
| EN 60529 protection | IP20 |
| Rated protection | I, with PE connection |
Environmental conditions
| Temperature – Operation | -25 to 70°C (>55°C derating) |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | Max. 95%, non-condensing |
| Vibration – Operation | <15 Hz, amplitude ±2.5 mm, per IEC 60068-2-6; 15 to 150 Hz, 2.3 g, 90 min |
| Shock – Operation | 15 g in each direction, per IEC 60068-2-27 |
| Degree of pollution | 2, per EN 50178 |
| Climate category | 3K3, per EN 60721 |
Mechanical characteristics
| Housing – Materials | Steel sheet, galvanized; Side panels: Aluminum |
| Dimensions – Width | 40 mm |
| Dimensions – Height | 130 mm |
| Dimensions – Depth | 115 mm |

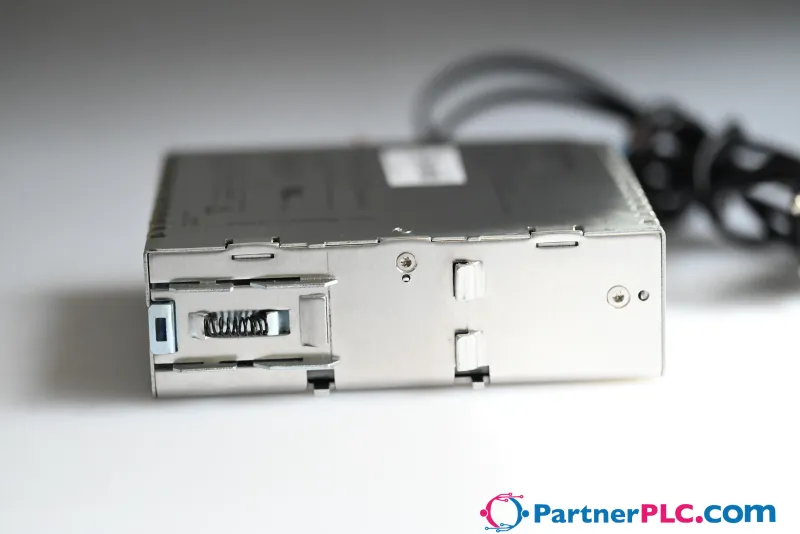

| Installation | Easy top-hat rail installation (NS 35 rails, EN 60715) |
| Weight | 600 g |
