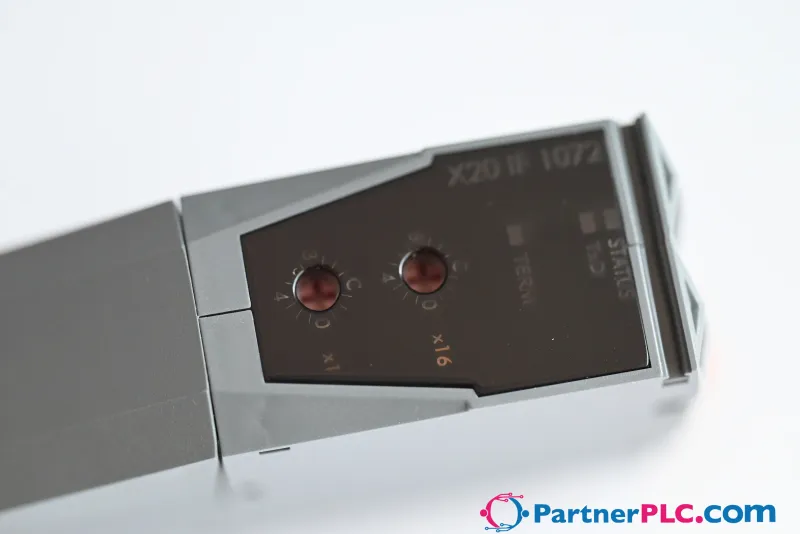

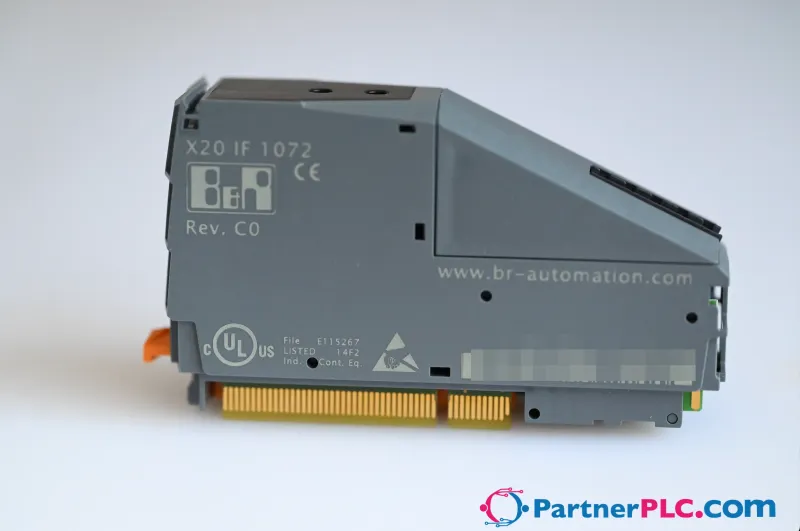

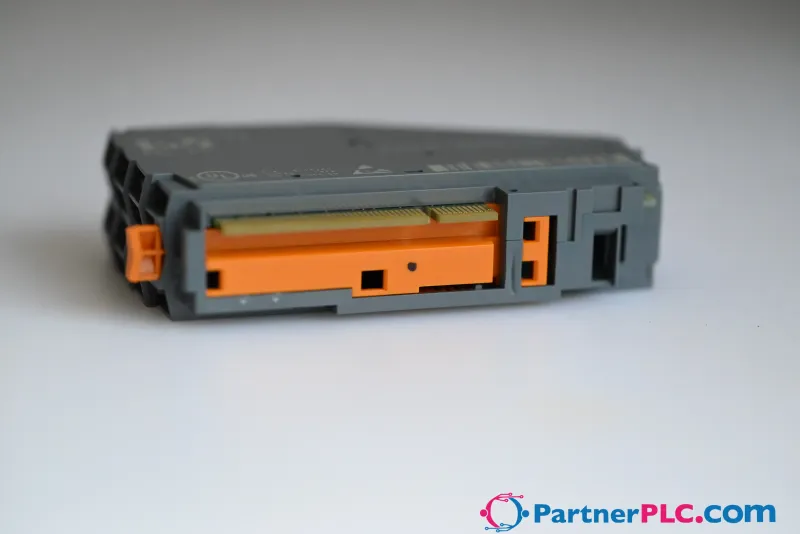

B&R X20IF1072 New Rev. C0 – CAN bus connection; Integrated terminating resistor The…
MPN: X20IF1072 · Brand: B&R
€397.50 excl. VAT & shipping
Request a Quote
12-month warranty
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | In stock — 1 available |
| Category | Communication Modules |
| Warranty | 12-month |
| Weight | 0.2 kg |
| Country of origin | AT |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can X20IF1072 be shipped?
X20IF1072 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up X20IF1072 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20IF1072.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20IF1072, subject to availability and destination.
• CAN bus connection
• Integrated terminating resistor
The interface module is used for application-specific expansion of the X20 controllers. It is equipped with a CAN bus interface.
Accessories
Required accessories (order separately)
| 0TB2105.9110 | Terminal blocks — The single-row 5-pin terminal block 0TB2105 is used as the connection terminal for fieldbuses among other things. |
| 0TB2105.9010 | Terminal blocks — The single-row 5-pin terminal block 0TB2105 is used as the connection terminal for fieldbuses among other things. |
Specifications
Short description
| Communication module | 1x CAN bus |
General information
| Diagnostics – Module status | Yes, using LED status indicator |
| Diagnostics – Data transfer | Yes, using LED status indicator |
| Diagnostics – Terminating resistor | Yes, using LED status indicator |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck |
| Certifications – KC | Yes |
| B&R ID code | 0x1F20 |
| Status indicators | Module status, data transfer, terminating resistor |
| Power consumption | 0.79 W |
| Additional power dissipation caused by actuators (resistive) [W] | - |
Interfaces
| Interface IF1 – Signal | CAN bus " data-placement="top" data-html="true" data-container="body" data-content="This CAN bus interface can be configured as a CANopen master in Automation Studio 3.0 and later."> |
| Interface IF1 – Variant | 5-pin male multipoint connector |
| Interface IF1 – Max. distance | 1000 m |
| Interface IF1 – Transfer rate | Max. 1 Mbit/s |
| Interface IF1 – Terminating resistor | Integrated in module |
| Interface IF1 – Controller | SJA 1000 |
Electrical properties
| Electrical isolation | PLC isolated from CAN (IF1) |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | - |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Note | Order 1x terminal block TB2105 separately. |
| Slot | In the X20 PLC |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet X20(c)IF1072 | PDF · 2 MB · 2.40 (02/05/2025) - EN |
| X20 Package leaflet ATEX/CSA | PDF · 2 MB · 1.4 (09/17/2024) |
| X20 System User´s Manual | PDF · 50 MB · 4.40 (03/10/2026) - EN |
CAD & dimension drawings
| 3D File DXF/STEP X20 Bus Controller CAN/DeviceNet | ZIP · 28 KB · 1.0 (05/16/2006) |
| 3D File DXF/STEP X20 Interface module CAN/DeviceNet | ZIP · 946 KB · 2.0 (05/20/2019) |
| Dimensions PDF X20 Interface Module CAN/DeviceNet | PDF · 4 KB · 1.0 (05/23/2006) |
