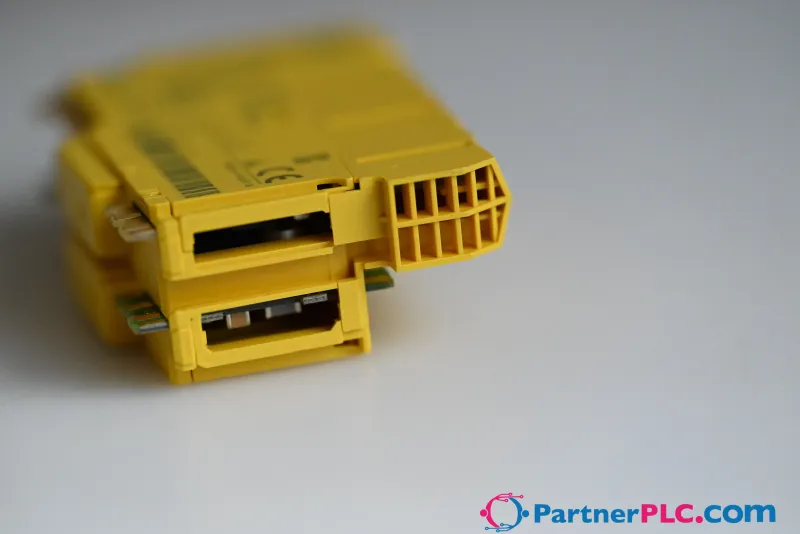

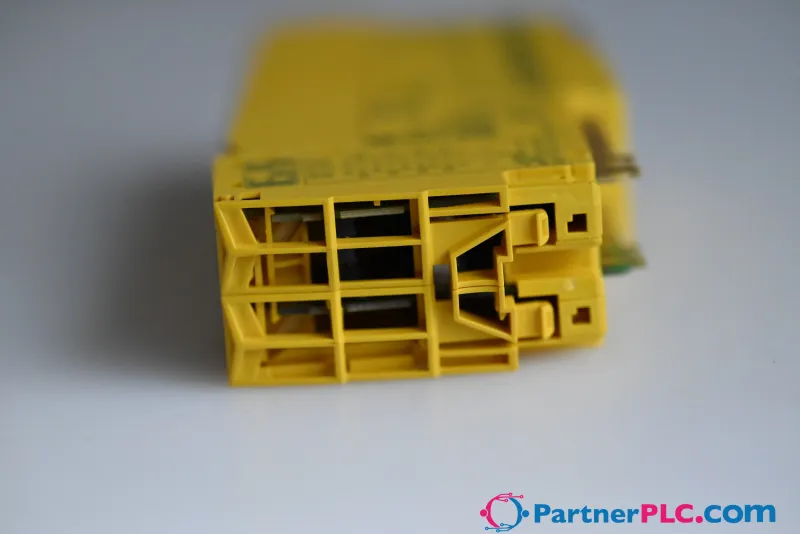

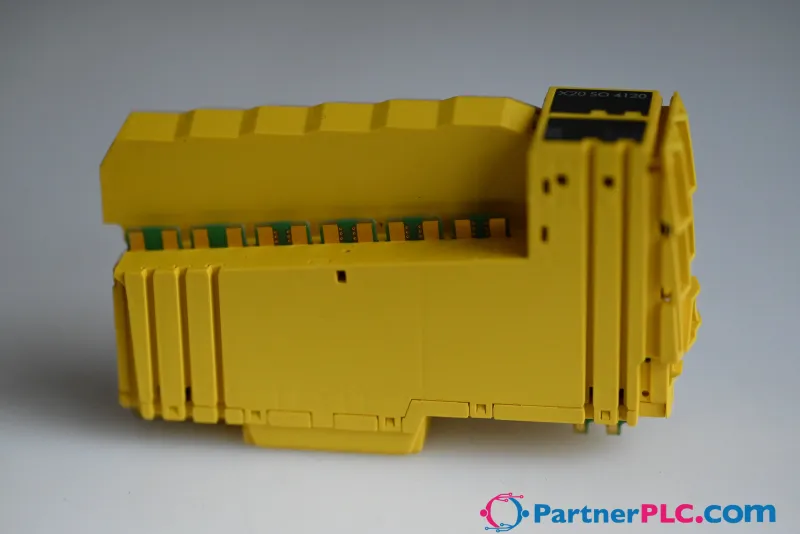

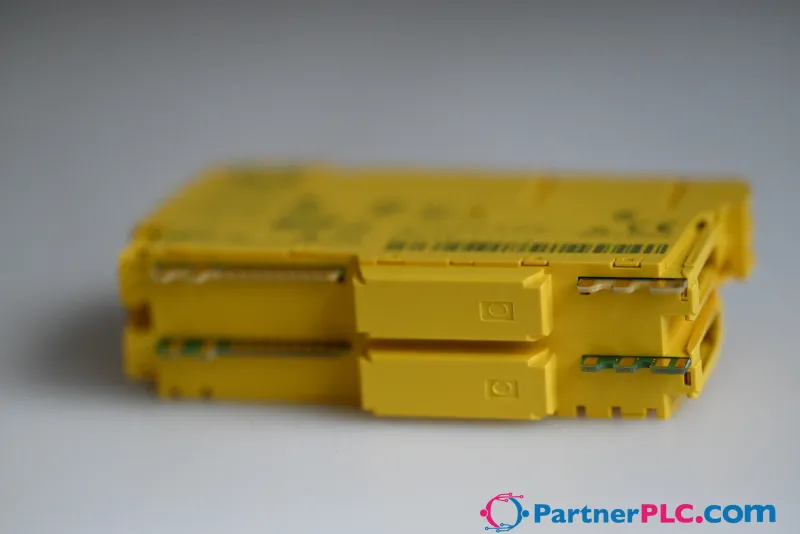

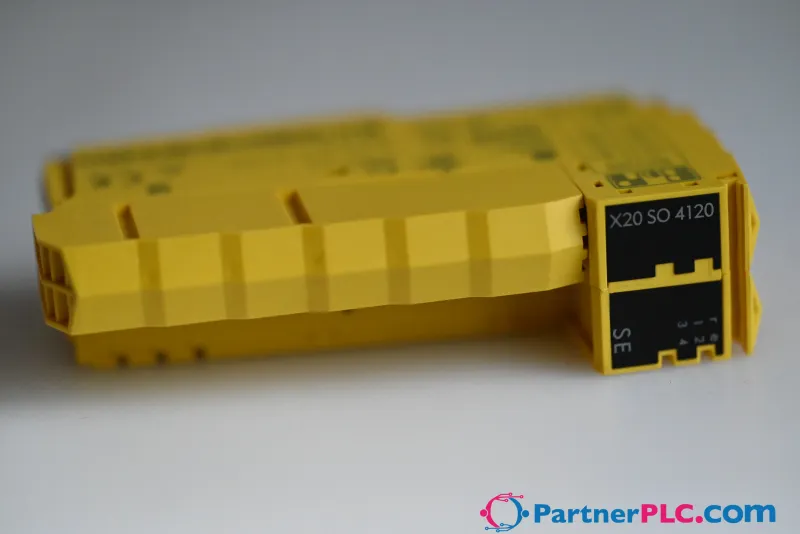

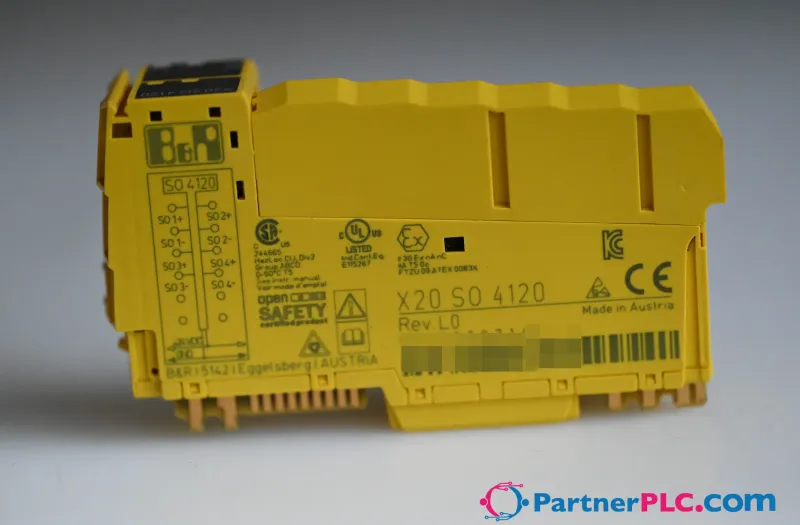

B&R X20SO4120

Servo & Motion Control

MPN: X20SO4120
Category: Servo & Motion Control

€179.14excl. VAT & shipping

In stock — 3 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

3-month warranty
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R X20SO4120?

Servo & Motion Control

Specifications

Short description

I/O module

4 safe type A digital outputs, with current monitoring, 24 VDC, 2 A, OSSD <500 µs

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Outputs	Yes, using LED status indicator and software
Blackout mode – Scope	Module
Blackout mode – Function	Module functionality
Blackout mode – Standalone mode	No
Power consumption – Bus	0.25 W
Power consumption – Internal I/O	1.3 W
Electrical isolation – Channel - Bus	Yes
Electrical isolation – Channel - Channel	No
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – Functional safety	cULus FSPC E361559; Energy and industrial systems; Certified for functional safety; ANSI UL 1998:2013
Certifications – Functional safety	IEC 61508, up to SIL 3 ; IEC 62061, up to SIL 3 ; ISO 13849-1, up to Cat. 4 / PL e ; IEC 61511, up to SIL 3
Certifications – Functional safety	EN 50156-1
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment; cULus E537419; Engine generator controller
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: A (0 to 45°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC21B ; Temperature: 5 - 45°C; Vibration: 0.7 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0x2007
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]Mechanical and electrical configuration" in the X20 system user's manual.">	2.16 (note: Number of outputs x R DS(on) x Nominal output current 2 . For a calculation example, see section)

Safety characteristics

Note	See section "Safety characteristics".

I/O power supply

Nominal voltage	24 VDC
Voltage range	24 VDC -15% / +20%
Integrated protective function	Reverse polarity protection

Safe digital outputs

Quantity	4
Variant	FET, 1x positive switching, 1x negative switching, type A, output level readable, open-circuit detection
Nominal voltage	24 VDC
Nominal output current	2 A
Total nominal current	5 A
Output protection	See section "Inrush current behavior for output channels".
Braking voltage when switching off inductive loads	Max. 90 VDC (note: Due to the internal protective circuit, this braking voltage only takes effect starting at a load of typ. 250 mA.)
Open-circuit detection	Via internal current measurement, ; output current <10 mA: Signal "CurrentOK" = FALSE, ; output current 10 to 50 mA: Signal "CurrentOK" = Undefined, ; output current >50 mA: Signal "CurrentOK" = TRUE
Error detection time	1 s
Insulation voltage between channel and bus	500 V eff
Peak short-circuit current	See section "Inrush current behavior for output channels".
Leakage current when the output is switched off	<10 µA
R DS(on)	240 mΩ
Switching voltage	I/O power supply minus voltage drop due to R DS(on)
Max. switching frequency	See section "Inrush current behavior for output channels".
Test pulse length	Max. 500 µs
Time between two test pulses	Min. 49.5 ms
Max. capacitive load	100 nF

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level	0 to 2000 m, no limitation
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	0 to 60°C
Temperature – Vertical mounting orientation	0 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x safety-keyed terminal block separately.; Order 1x safety-keyed bus module separately.
Pitch	25 +0.2 mm

Accessories

Required accessories (order separately)

X20BM36	Bus modules — Bus module for SafeIO modules; The internal I/O power supply is continuous.; Manual node number assignment; Independent from the electronic…
X20BM33	Bus modules — Bus module for SafeIO modules; The internal I/O power supply is continuous. The bus module is the base for all SafeIO modules. The internal…
X20TB52	Terminal blocks — Tool-free wiring using push-in technology; Simple wire release using a lever; Labeling option for each terminal connection; Plain text labe…
