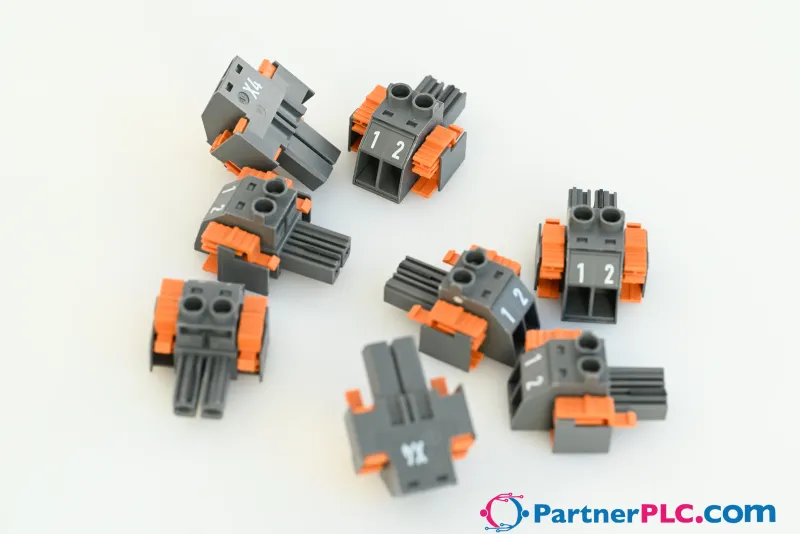

B&R 0TB3102-7011

Terminal Blocks & Connector

MPN: 0TB3102-7011
Category: Terminal Blocks & Connectors

€15.90excl. VAT & shipping

In stock — 20 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R 0TB3102-7011?

Terminal Blocks & Connector

Specifications

Terminal block

Connection cross section – AWG wire	22 to 10 AWG
Connection cross section – Wire end sleeves with plastic covering	0.25 to 4 mm²
Connection cross section – Single-wire	0.20 to 6 mm²
Connection cross section – Fine-stranded wires	0.20 to 6 mm²
Connection cross section – With wire end sleeve	0.25 to 6 mm²
Note	Multifunction flange for secure, fast and tool-free locking ; Nominal data per UL
Number of pins	2
Type of terminal block	Screw clamp terminal block variant
Cable type	Only copper wires (no aluminum wires!)
Coding	A
Pitch	7.62 mm

Electrical properties

Nominal voltage	600 V
Nominal current	31 A (note: The respective limit data of the I/O modules must be taken into account!)
Contact resistance	≤4.5 mΩ

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Certificates (1)

E537419 UL Certificate of Compliance X20PDF · 153 KB · 2026-07 (07/27/2026)

0TB3102-7011: frequently asked questions

When can 0TB3102-7011 be shipped?

0TB3102-7011 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up 0TB3102-7011 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 0TB3102-7011.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0TB3102-7011, subject to availability and destination.
