B&RNew

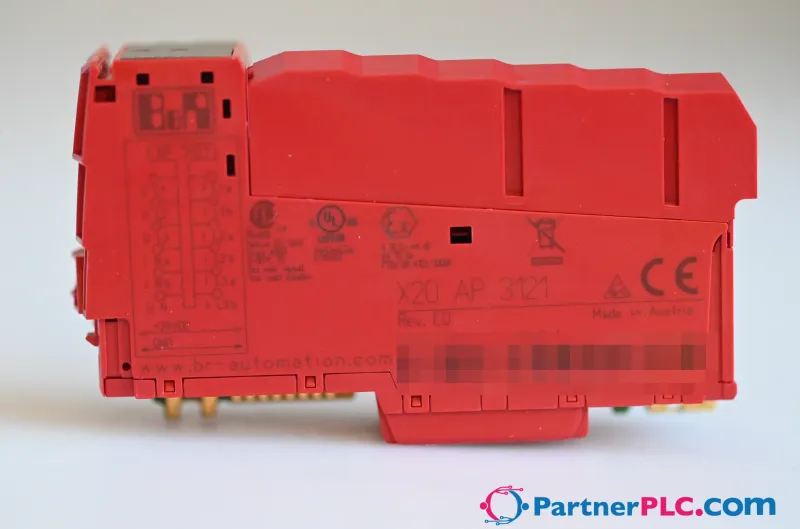

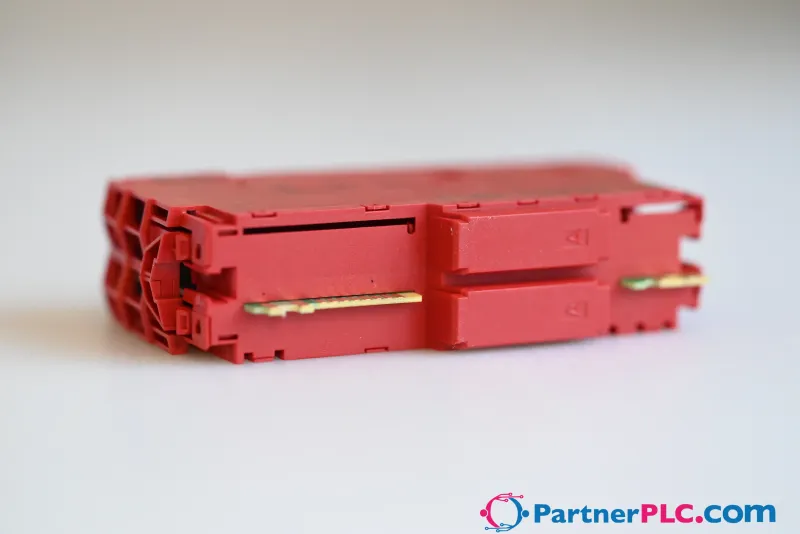

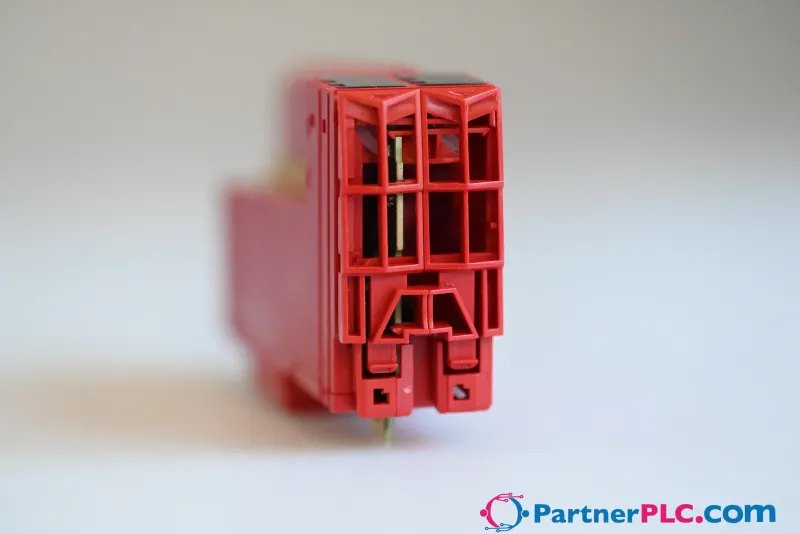

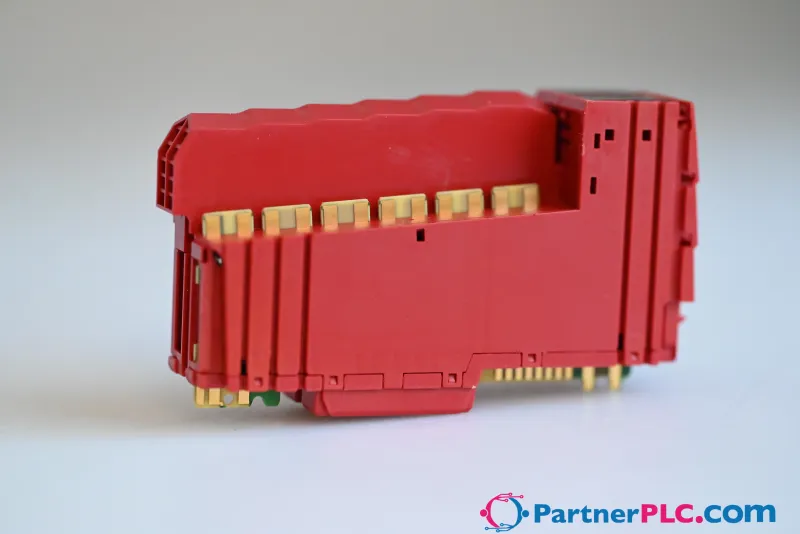

B&R X20AP3121

Accessory

MPN: X20AP3121
Category: Accessories

€583.00excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R X20AP3121?

Accessory

Specifications

Short description

I/O module

3-phase power and energy metering module for current transformers

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Inputs	Yes, using LED status indicator and software
Power consumption – Bus	0.85 W (Rev. <D0); 0.50 W (Rev. =D0); 0.45 W (Rev. >D0)
Power consumption – Internal I/O	-
Insulation voltages – Inputs - Bus / I/O power supply	Tested at 5500 VDC, 1 min
Insulation voltages – Inputs - Ground	Tested at 5500 VDC, 1 min
Insulation voltages – Bus / I/O power supply - Ground	Tested at 510 VAC, 1 min
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
B&R ID code	0xC9DB
Status indicators	I/O function per channel, operating state, module status
Additional module power dissipation [W]	2 W (note: Power dissipation of current measurement shunts)

Voltage inputs

Nominal voltage U N – Between phases	Max. 480 VAC (note: The design of the module allows 480 VAC to be applied to the terminal block.)
Nominal voltage U N – Phase to N	Max. 277 VAC
Measurable frequency – Measurement range	45 to 65 Hz
Measurable frequency – Resolution	0.01 Hz
Number of phases	3
Input impedance	1.68 MΩ
Max. display value	655 VAC
Resolution	10 mV, with voltage connected directly
Rated frequency	50 and 60 Hz

Current inputs

Nominal current I N – Secondary	1 A
Nominal current I N – Primary	65 A directly configurable, larger values through conversion in the applicationCurrent transformer - Pinout"."> (note: For measuring higher current values, see section)
Quantity	4 AC inputs
Max. overload current	8 x I N for 0.5 s
Max. measuring current	1 A
Resolution	1 mA, based on the primary currentCurrent transformer - Pinout"."> (note: For measuring higher current values, see section)
Load	500 mΩ

Measurement accuracy

Apparent energy – Per phase and arithmetic total	±0.50% (note: With drift of 60 ppm/K)
Apparent energy – Vector sum	±0.80% (note: With drift of 60 ppm/K)
U RMS	±0.65% (note: With drift of 25 ppm/K)
I RMS	±0.65% (note: With drift of 35 ppm/K)
Effective, reactive and apparent power	±0.80% (note: With drift of 60 ppm/K)
Frequency, power factor and phase angle	±0.50%Helv","sans-serif"; mso-fareast-font-family:"Arial Unicode MS";mso-bidi-font-family:Helv; color:black;mso-ansi-language:DE;mso-fareast-language:DE;mso-bidi-language: AR-SA'>In power systems with approximately sinusoidal voltage starting at 10 VAC.</SPAN>"> (note: <SPAN style='font-size:10.0pt;font-family:)
Active energy per phase and total	±0.40% (note: At power factor cos ϕ = 1, 0.5L and 0.8C)
Active energy of fundamental frequency per phase and total	±0.50% (note: At power factor cos ϕ = 1, 0.5L and 0.8C)
Active energy of harmonics per phase and total	±0.80% (note: At power factor cos ϕ = 1, 0.5L and 0.8C)
Reactive energy per phase and total	±0.50% (note: At reactive power factor sin ϕ = 1, 0.5L and 0.8C)

Electrical properties

Electrical isolation

Channel isolated from bus; Channel not isolated from channel

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Not permitted
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB32 separately. ; Order 1x bus module X20BM32 separately.
Pitch	25 +0.2 mm

Accessories

Required accessories (order separately)

X20BM32	Bus modules — Bus module for double-width 240 VAC I/O modules; The internal I/O supply is interconnected; 240 V coding for bus module, electronic module…
X20TB32	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D File STEP X20AP3xxxZIP · 866 KB · 1.00 (03/03/2015)

Certificates (15)

X20AP3121: frequently asked questions

When can X20AP3121 be shipped?

X20AP3121 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up X20AP3121 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20AP3121.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20AP3121, subject to availability and destination.
