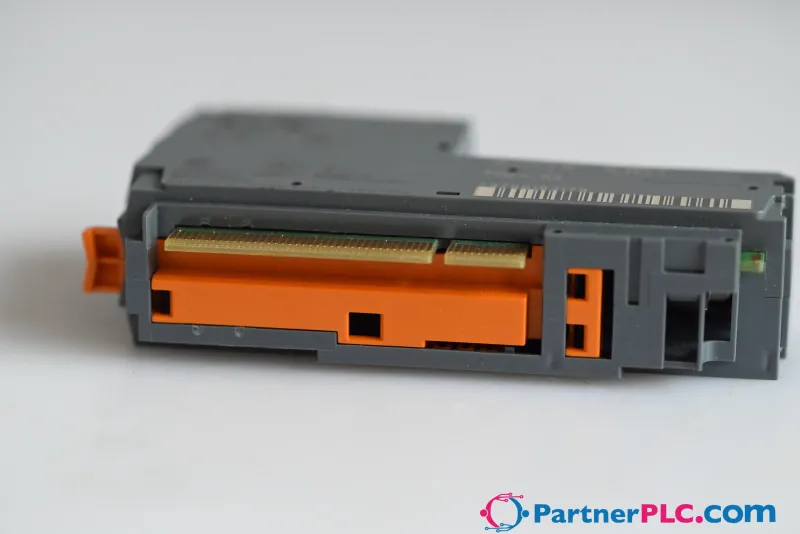

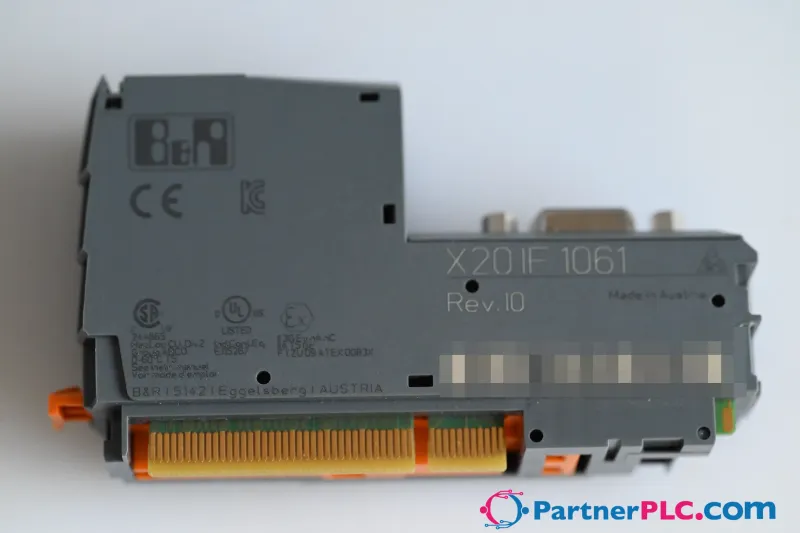

B&R X20IF1061 New Rev. I0 – PROFIBUS DP V1 master The interface module can be used to…
MPN: X20IF1061 · Brand: B&R
€422.94 excl. VAT & shipping
Request a Quote
12-month warranty
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | In stock — 1 available |
| Category | Communication Modules |
| Warranty | 12-month |
| Weight | 0.6 kg |
| Country of origin | AT |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can X20IF1061 be shipped?
X20IF1061 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up X20IF1061 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20IF1061.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20IF1061, subject to availability and destination.
• PROFIBUS DP V1 master
The interface module can be used to expand the X20 CPU for specific applications. It is equipped with a PROFIBUS DP V1 master interface.
Accessories
Optional accessories (1)
| 0G1000.00-090 | Infrastructure components — The RS485 bus connector is used to connect a controller to a Profibus network or an RS485 network. The terminating resistor is integrated i… |
Specifications
Short description
| Communication module | PROFIBUS DP V0/V1 master |
General information
| Diagnostics – Module status | Yes, using LED status indicator and software |
| Diagnostics – Bus status | Yes, using LED status indicator and software |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – KC | Yes |
| B&R ID code | 0x1F22 |
| Status indicators | Module status, bus status |
| Power consumption | 1.4 W |
| Additional power dissipation caused by actuators (resistive) [W] | - |
Interfaces
| Interface IF1 – Input data | 3.5 kB |
| Interface IF1 – Output data | 3.5 kB |
| Interface IF1 – Fieldbus | PROFIBUS DP V0/V1 master |
| Interface IF1 – Variant | 9-pin female DSUB connector |
| Interface IF1 – Max. distance | 1200 m |
| Interface IF1 – Transfer rate | Max. 12 Mbit/s |
| Interface IF1 – Terminating resistor | External using T-connector (0G1000.00-090) |
| Interface IF1 – Controller | EC1 |
| Interface IF1 – Memory | 8 MB SDRAM |
Electrical properties
| Electrical isolation | PLC isolated from PROFIBUS (IF1) |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | - |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Slot | In the X20 PLC |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet X20IF1061 | PDF · 136 KB · 2.22 (05/26/2017) - EN |
| X20 Package leaflet ATEX/CSA | PDF · 2 MB · 1.4 (09/17/2024) |
| X20 System User´s Manual | PDF · 50 MB · 4.40 (03/10/2026) - EN |
Certificates (5)
| 2226379 CSA Certificate of Compliance X20 X67 | PDF · 205 KB · 2026_09 (09/21/2026) |
| E115267 UL Certificate of Compliance X20 | PDF · 3 MB · 2026_08_27 (08/27/2026) |
| EU Data Act - X20 IO - Connected Product Information Notice | PDF · 92 KB · 1.00 (09/30/2025) |
| FTZU 09 ATEX 0083X | PDF · 771 KB · 3.00 (10/12/2021) |
| X20, X67 KC certificates | PDF · 7 MB · 2.00 (08/17/2026) |
