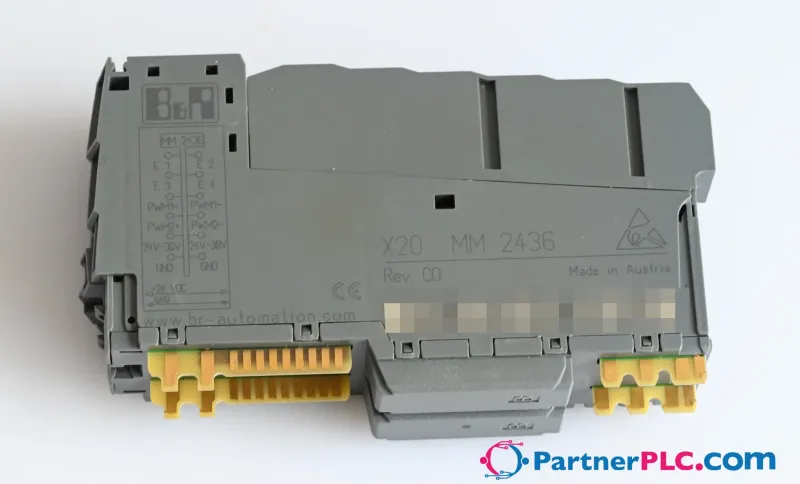

B&R X20MM2436 Used Rev. C0
Request a Quote
Quick facts
| Availability | In stock — 3 available |
| Category | Analog I/O Modules |
| Warranty | 3-month |
| Weight | 0.07 kg |
| Country of origin | AT |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can X20MM2436 be shipped?
X20MM2436 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up X20MM2436 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20MM2436.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20MM2436, subject to availability and destination.
• 2x outputs (H bridge) with PWM control and 24 to 39 VDC ±25% supply
• 3 A nominal current (3.5 A max current)
• 15 Hz to 50 kHz frequency, 16-bit
• Frequency mode with 10 to 6553.5 Hz or 1 to 655.35 Hz resolution.
• PWM resolution, 15-bit + sign, minimum 10 ns
• Configurable dither
• 2x 2 inputs 24V, can be configured as AB
• Sink connection
• 1-wire connections
The motor bridge module is used to control 2 DC motors with a nominal voltage of 24 to 39 VDC ±25% at a nominal current up to 3 A. The module can be reconfigured and used in current controller mode for controlling inductive loads. The module is also equipped with 4 digital inputs, which can be used as incremental counters. Each motor is controlled with a full-bridge (H-bridge). This enables the motors to be moved in both directions.
Accessories
Required accessories (order separately)
| X20BM31 | Bus modules — Bus module for double-width I/O modules; The internal I/O supply is interconnected The bus module serves as a basis for all double-width X2… |
| X20TB12 | Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl… |
Specifications
Short description
| I/O module | 2-channel PWM motor bridge, 2 AB incremental encoders |
General information
| Diagnostics – Module run/error | Yes, using LED status indicator and software |
| Diagnostics – Output | Yes, using LED status indicator and software |
| Diagnostics – I/O power supply | Yes, using software |
| Power consumption – 24 VDC | 2.45 W |
| Power consumption – 48 VDC | 3.15 W |
| Power consumption – Bus | 0.01 W |
| Power consumption – Internal I/O | - |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cURus E225616; Power conversion equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck |
| Certifications – KC | Yes |
| B&R ID code | 0x26B5 |
| Status indicators | I/O function per channel, operating state, module status |
| Additional power dissipation caused by actuators (resistive) [W] | - |
Digital inputs
| Input filter – Hardware | <5 µs |
| Input filter – Software | - |
| Switching threshold – Low | <5 VDC |
| Switching threshold – High | >15 VDC |
| Quantity | 4 |
| Nominal voltage | 24 VDC |
| Input voltage | 24 VDC (-15% / +20%) |
| Input current at 24 VDC | Approx. 1.3 mA |
| Input circuit | Sink |
| Connection type | 1-wire connections |
| Input resistance | Typ. 18 kΩ |
| Additional functions | 2x AB incremental encoder, 1x ABR counter, 2x event counter, 2x period duration/gate measurement |
| Insulation voltage between channel and bus | 500 V eff |
AB incremental encoder
| Quantity | 2 |
| Encoder inputs | 24 V, asymmetrical |
| Counter size | 16-bit |
| Input frequency | Max. 50 kHz |
| Evaluation | 4x |
| Signal form | Square wave pulse |
PWM output
| Actuator power supply – Supply | External |
| Actuator power supply – Fuse | Required line fuse: Max. 10 A, slow-blow |
| Quantity | 2 |
| Nominal voltage | 24 to 39 VDC ±25% " data-placement="top" data-html="true" data-container="body" data-content="The tolerance value is composed of the voltage tolerances and permissible total AC voltage component with a peak value of 5% of the rated voltage."> |
| Nominal current | 3 A |
| Maximum current | 3.5 A (2 s) |
| PWM frequency | Standard operating mode: 15 Hz to 50 kHz; Frequency operating mode: 1 Hz to 6553.5 Hz; SuperVibe operating mode: 1 Hz to 50 kHz |
| Output protection | Thermal shutdown in the event of overcurrent or short circuit |
| Variant | H bridge |
| Configurable dither | Amplitude, frequency |
| Period duration resolution (PWM/current operating mode) | 16-bit, min. 20 μs |
| Frequency resolution | Frequency mode ; Scaling 0.1 Hz <3000 Hz: 0.1 Hz; 3000 to 6553.5 Hz: 0.1 to 0.4 Hz; Scaling 0.01 Hz <300 Hz: 0.01 Hz; 300 to 655.35 Hz: 0.01 to 0.04 Hz; ; SuperVibe mode ; Scaling 1 Hz <10 kHz: 1 Hz; 10 to 50 kHz: 1 to 40 Hz; Scaling 0.1 Hz <1000 Hz: 0.1 Hz; 1000 to 6553.5 Hz: 0.1 to 4 Hz |
| Phase shift PWM1 to PWM2 | 180° - if possible (according to operating mode) |
| DC bus capacitance | 100 μF |
| PWM pulse width | 15 bits plus sign ≥10 ns |
| Frequency mode | 15 bits plus sign ≥10 ns |
| Insulation voltage between channel and bus | 500 V eff |
Electrical properties
| Electrical isolation | Channel isolated from bus ; Channel not isolated from channel |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 50°C |
| Temperature – Vertical mounting orientation | Not permitted |
| Temperature – Derating | See section "Derating". |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Note | Order 1x terminal block X20TB12 separately. ; Order 1x bus module X20BM31 separately. |
| Pitch | 25 +0.2 mm |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Data sheet X20(c)MM2436 | PDF · 2 MB · 2.40 (07/29/2025) - EN |
| X20 Package leaflet ATEX/CSA | PDF · 2 MB · 1.4 (09/17/2024) |
| X20 System User´s Manual | PDF · 50 MB · 4.40 (03/10/2026) - EN |
CAD & dimension drawings
| 3D File X20 Double IO Slice | ZIP · 1,002 KB · 1.00 (05/29/2017) |
Certificates (15)
