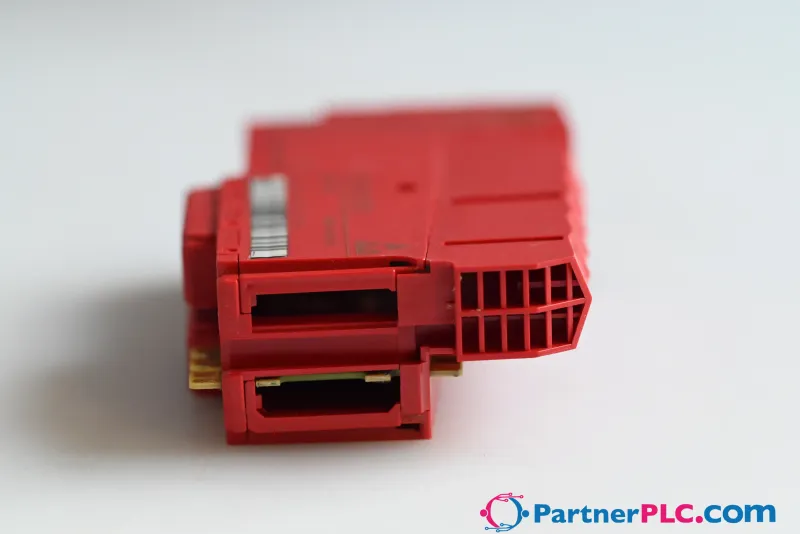

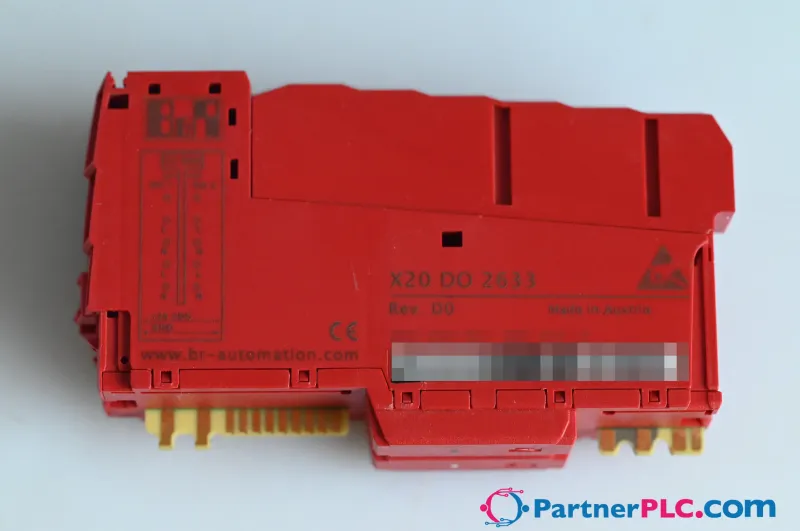

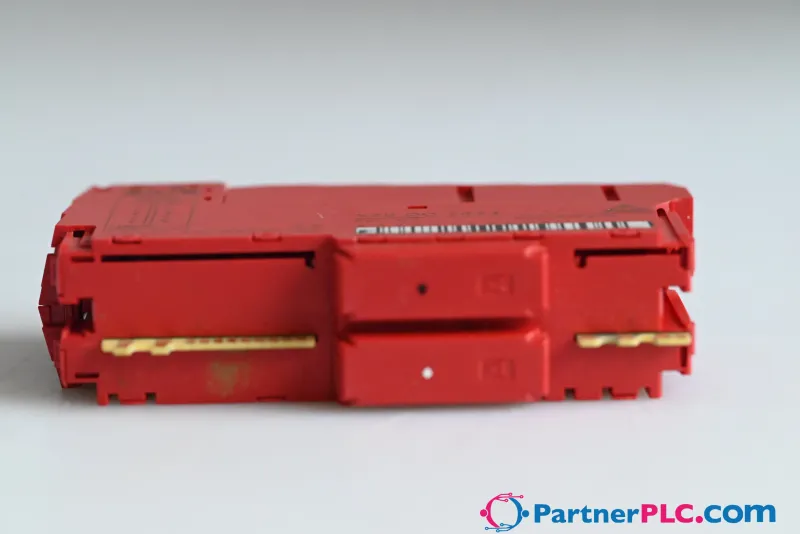

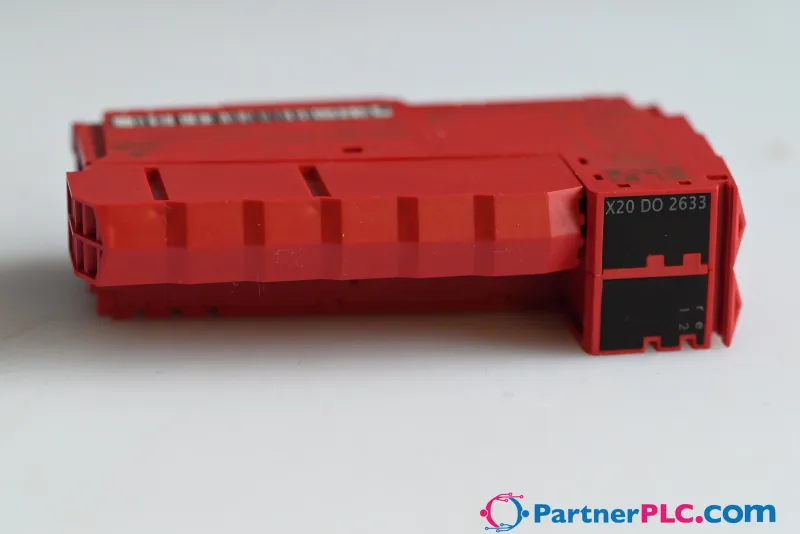

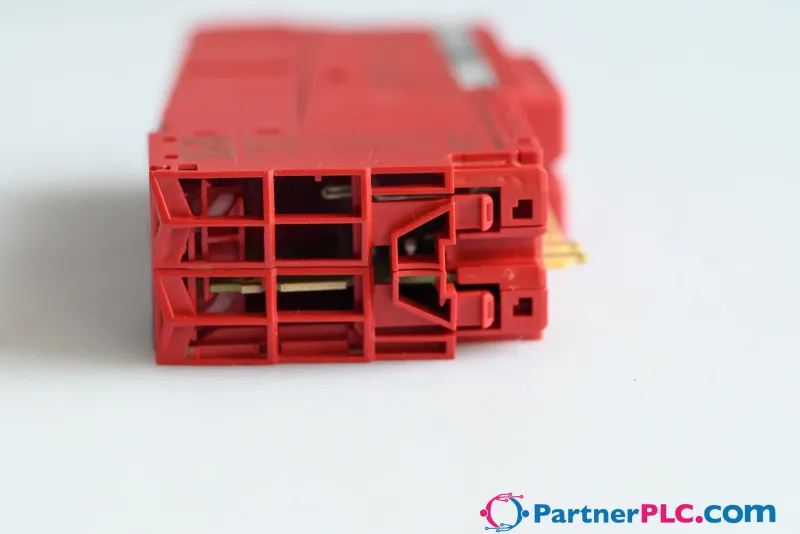

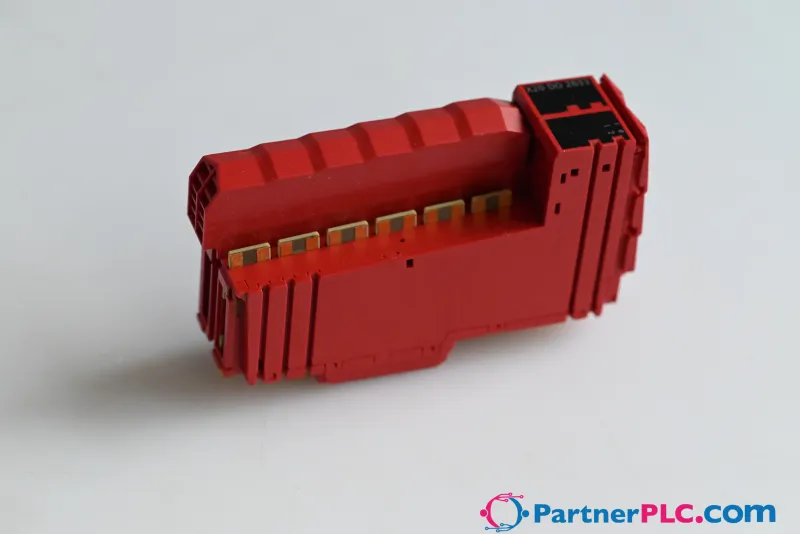

B&R X20DO2633 Used Rev. D0 – 2 digital outputs; Outputs with integrated snubber circuit

Name: B&R X20DO2633 Used Rev. D0 – 2 digital outputs; Outputs with integrated snubber circuit
Brand: B&R
SKU: X20DO2633
Price: 369.94 EUR
Availability: InStock

MPN: X20DO2633 · Brand: B&R

€369.94 excl. VAT & shipping

Request a Quote

3-month warranty

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	In stock — 1 available
Category	Digital I/O Modules
Warranty	3-month
Weight	0.05 kg
Country of origin	AT
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can X20DO2633 be shipped?

X20DO2633 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up X20DO2633 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20DO2633.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20DO2633, subject to availability and destination.

• 2 digital outputs

• Outputs with integrated snubber circuit

• Outputs with 48 to 240 VAC

• L switching

• Zero-crossing detection

• Phase-angle control

• Open-circuit detection for each channel

• Negative half-waves can be switched off

• 50 Hz or 60 Hz

• 3-wire connections

• 240 V coding

• OSP mode

• Frequency mode

The module is a digital output module with phase-angle control that is equipped with 2 Triac outputs using 3-line connections. The supply (L and N) is fed directly to the module.

Accessories

Required accessories (order separately)

X20BM32	Bus modules — Bus module for double-width 240 VAC I/O modules; The internal I/O supply is interconnected; 240 V coding for bus module, electronic module…
X20TB32	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…

Specifications

Short description

I/O module

2 digital outputs 48 to 240 VAC for 3-wire connections

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Outputs	Yes, using LED status indicator and software
Power consumption – Bus	0.6 W
Power consumption – Internal I/O	-
Power consumption – External I/O	-
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0xAC39
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W] " data-placement="top" data-html="true" data-container="body" data-content="Number of outputs x Residual voltage (on-state voltage) x Nominal output current. For a calculation example, see section "Mechanical and electrical configuration" in the X20 system user's manual.">	+6

Digital outputs

Maximum current – Output current	2.5 A
Maximum current – Summation current	5 A
Phase-angle control – Area	5 to 95%
Phase-angle control – Resolution	1%
Phase-angle control – Accuracy (60 to 240 VAC)	<100 μs
Insulation voltages – Channel - Bus	Tested with 2300 VAC (Rev. <E0 1500 VAC)
Insulation voltages – Channel - Internal I/O	Tested with 2300 VAC (Rev. <E0 2000 VAC)
Insulation voltages – Channel - Ground	Tested with 2300 VAC (Rev. <E0 1500 VAC)
Protective circuit – External	See section "External fuses".
Protective circuit – Internal	Snubber circuit (RC element) and varistor
Execution	Triac
Circuit	L-switching
Nominal voltage	48 to 240 VAC
Max. voltage	264 VAC
Rated frequency	47 to 63 Hz
Nominal output current	2 A
Total nominal current	4 A
Connection type	3-wire connections
Zero-crossing detection	Yes
Minimum holding current I H	15 mA
Leakage current	Max. 2 mA at 240 V at 50 Hz ; Max. 2.4 mA at 240 V at 60 Hz
Residual voltage (on-state voltage)	1.5 V
Voltage monitoring L - N	Yes
Additional functions	Open-circuit detection
Overvoltage protection between L and N	Yes, varistor

Electrical properties

Electrical isolation

Channel isolated from bus and I/O power supply

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Not permitted
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB32 separately.; Order 1x bus module X20BM32 separately.
Pitch	25 +0.2 mm
