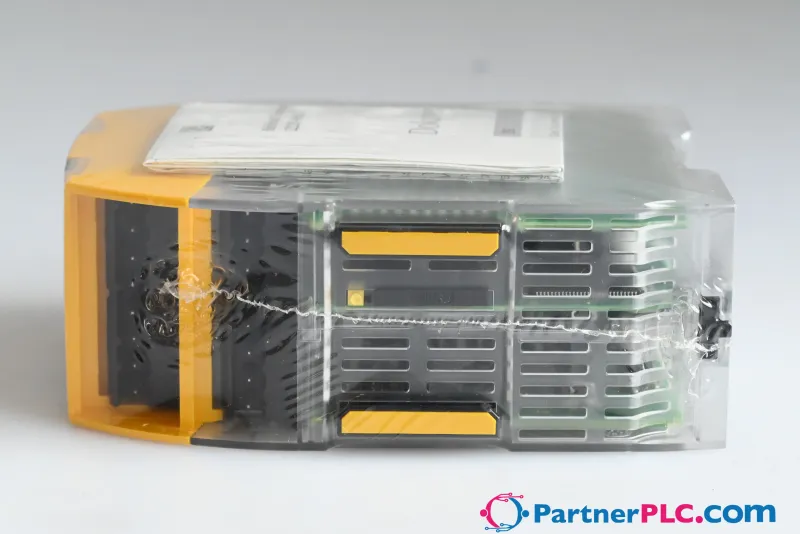

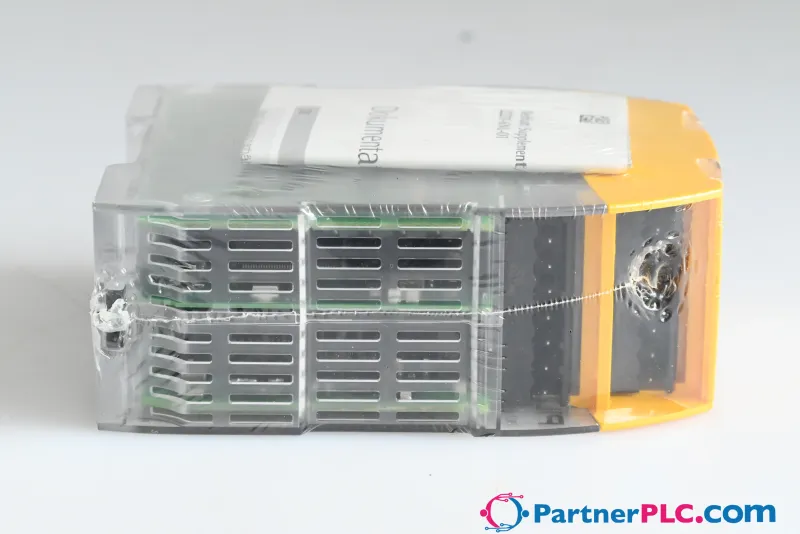

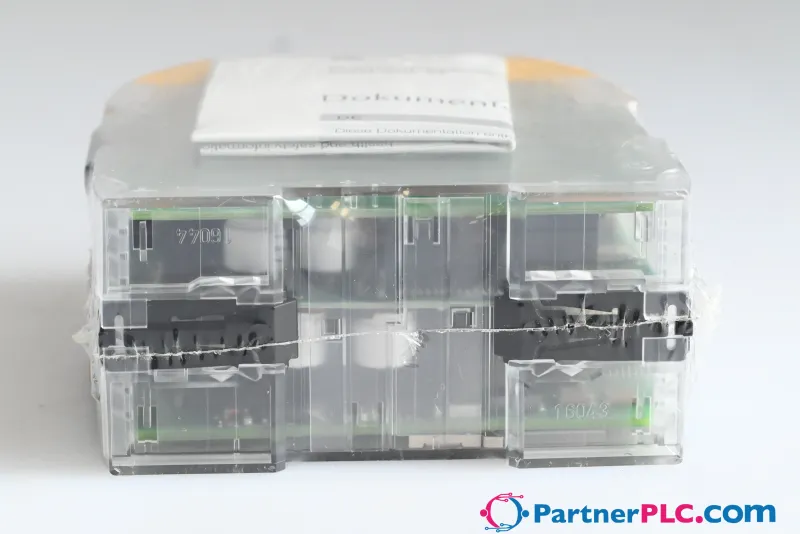

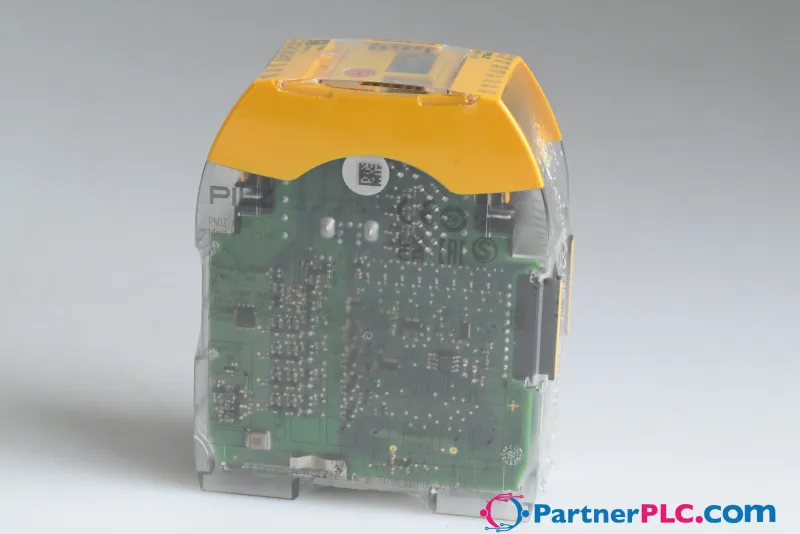

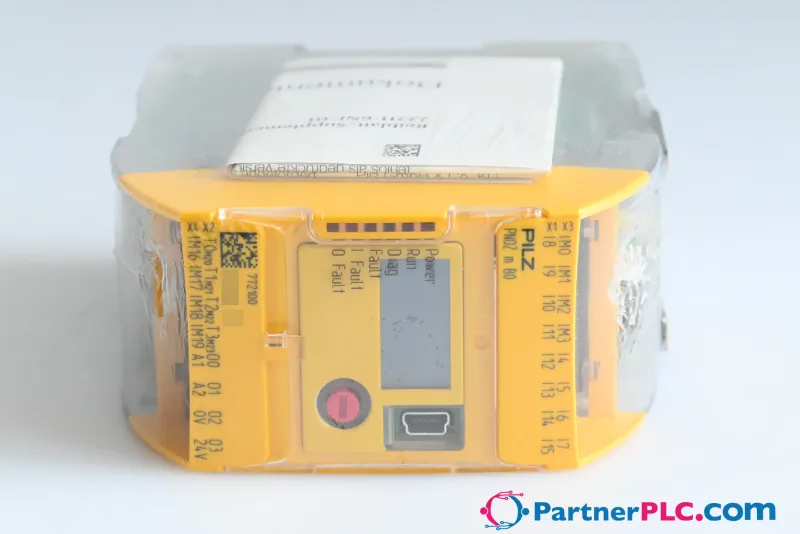

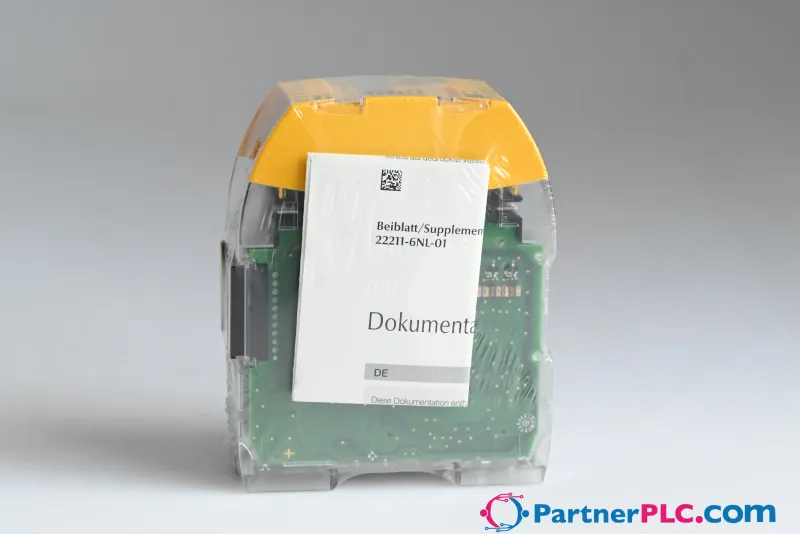

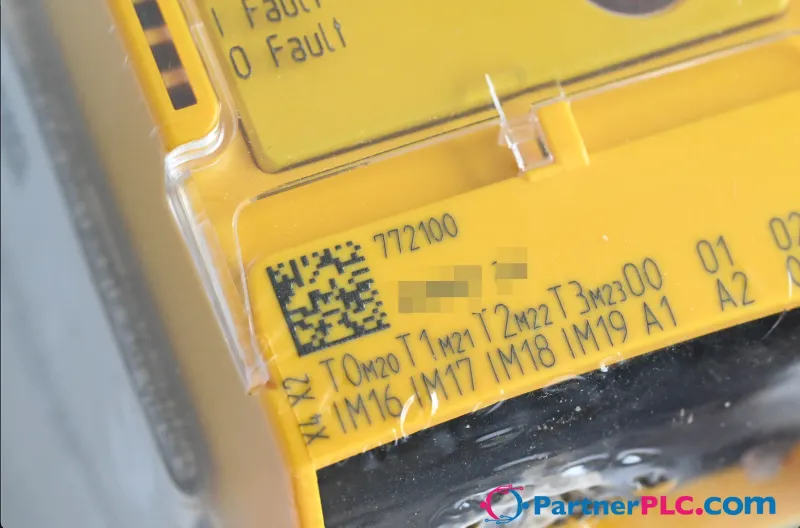

Pilz 772100
PNOZmulti 2 - base unit
- MPN
- 772100
- EAN
- 4046548059137
- Category
- PNOZmulti 2 - base units
€369.94excl. VAT & shipping
In stock — 2 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 12-month warranty
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 772100?
PNOZmulti 2 - base unit
Specifications
General data
| Product ID (Pilz order number) | 772100 |
| Approval | CE, UKCA, cULus Listed, TÜV, EAC (Eurasian) |
| Application range | Fail-safe |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Purpose of U1 | Versorgung des Systems |
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Device circuit breaker U1 | 6 A, Automat, Char.B |
| Purpose of U2 | Versorgung der HL-Ausgänge |
| Supply voltage U2 | 24 |
| Type of supply voltage U2 | DC |
| Tolerance of U2 | -20 %/+25 % |
| Potential isolation U2 | ja |
| Permitted loads | ohmsch, induktiv, kapazitiv |
Configurable inputs/outputs
| Number of configurable I/Os | 8 |
| Potential isolation of IO | nein |
| Short circ. prot. n/safe S/C O | Ja |
| Voltage at 1 n/safe S/C O | UB - 2 V bei 0,1 A |
Inputs
| Number of digital inputs | 12 |
| U input to EN 61131-2 Type 1 | 24 V DC |
| Potential isolation input | nein |
Semiconductor outputs
| Potential isolation of S/C O | ja |
| S/C output short circuit proof | ja |
Test clock outputs
| Number of test pulse outputs | 4 |
Environmental data
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | 0 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-30, EN 60068-2-78 |
| Humidity rating | 93 % r. h. at 40 °C |
| Condensation permitted? | unzulässig |
| Perm. operating height ASL | 2000 m |
| EMC to standard ... | EN 61131-2 |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 15g |
| Clearance & creepage dist. to | EN 61131-2 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, mounting | IP54 |
| Protection type, housing | IP20 |
| Terminal protection type | IP20 |
Potential separation
| Potential isolation 1 between | HL-Ausgang und Systemspannung |
| Type of potential isolation 1 | Basisisolierung |
Mechanical data
| Mounting position | waager. auf Hutschiene |
| DIN-rail dimensions | 35 x 7,5 EN/IEC 60715, 35 x 15 EN/IEC 60715 |
| Housing material lower section | PC |
| Housing material front plate | PC |
| Housing material upper part | PC |
| Connection terminal | Federkraftklemme, Schraubklemme |
| Terminal style | steckbar |
| Flex. cond. c/s AWG info | 24 - 12 AWG |
| Height dimension | 101.4 mm |
| Width dimension | 45 mm |
| Depth dimension | 120 mm |
| Net weight | 235 g |
| Gross weight | 250 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 7a, 7c I |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead, Lead oxide |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1, 1317-36-8 |
| SCIP entry available | yes |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242207 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC000236 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548059137 |
| Volume | 0.648 dm3 |
| Harmonized System Code | 85371091 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
- 3rd-party license inf. PNOZ m B0
- Application Note SecBridge SL1 PNOZm
- Application Note PNOZm B0_S7 1500 TIA
- Application Note PNOZ m ES CC_Link
- Application Notes: Application Note Content
- Application Note_PNOZm ETH TCP-IP S7
- Application Note PNOZm ES Ethernet IP
- Installation Manual PNOZmulti
- Operat.Man. PNOZmulti OPC Server
- Operating Manual: Operat.Manual PNOZ m B0
- PNOZmulti Special Applications
- PNOZmulti 2 Communication Interfaces
- Solution Description Cardboard Feed
- PNOZmulti System Expansion
- Technical Catalogue PNOZmulti 2
CAD & dimension drawings
Certificates (10)
- Type examination certificate (TÜV) EU-ESD-050-2
- Certificate (AGA) 9044-02
- Type examination certificate (KOSHA) 2014-244
- Certificate (UL) E183931-20130824
- Type examination certificate (TÜV) M6A-020132-0193-R03
- Certificate (EAC) RU-C-DE-HB-B-03002-23
- Type examination certificate (TÜV) M6R-020132-0315-R00
- Self Declaration (CQC) CCC_Declaration-of-exemption
- UK Declaration of Conformity (UKCA)
- EU/EC-Declaration of Conformity (Konformitätserklärung)
772100: frequently asked questions
When can 772100 be shipped?
772100 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up 772100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 772100.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 772100, subject to availability and destination.
