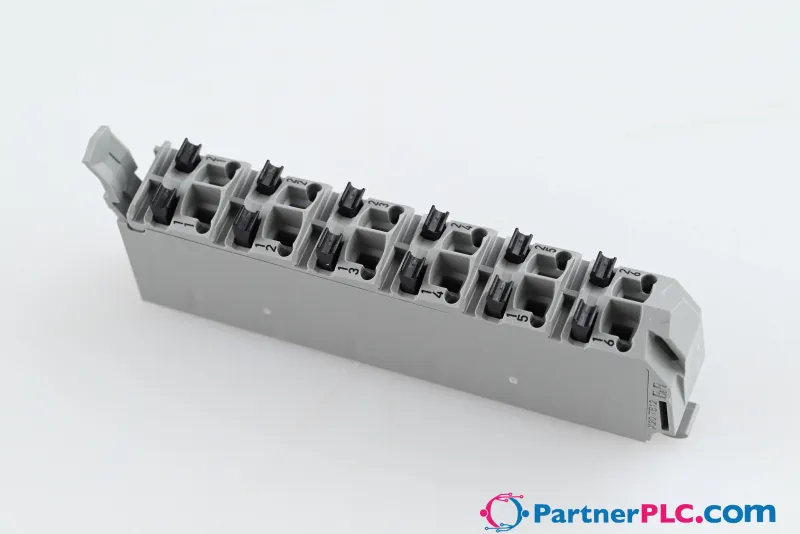

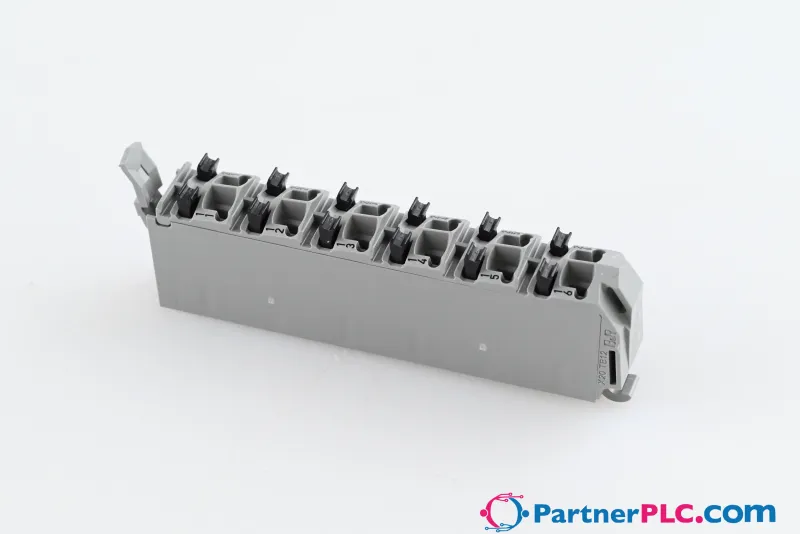

B&R x20tb12 New without box – Tool-free wiring with push-in technology

Name: B&R x20tb12 New without box – Tool-free wiring with push-in technology
Brand: B&R
SKU: x20tb12
Price: 10.60 EUR
Availability: InStock

MPN: x20tb12 · Brand: B&R

€10.60 excl. VAT & shipping

Request a Quote

12-month warranty

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	In stock — 7 available
Category	Terminal Blocks & Connectors
Warranty	12-month

Shipping & availability

When can x20tb12 be shipped?

x20tb12 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up x20tb12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like x20tb12.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for x20tb12, subject to availability and destination.

• Tool-free wiring with push-in technology

• Simple wire release using lever

• Ability to label each terminal

• Plain text labeling also possible

• Test access for standard probes

• Can be customer-coded

The X20 24 VDC modules are wired using the X20TB06 and X20TB12 terminal blocks.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck

Terminal block

Connection cross section – Single-wire	0.08 to 2.50 mm² / 28 to 14 AWG
Connection cross section – Fine-stranded wires	0.25 to 2.50 mm² / 24 to 14 AWG
Connection cross section – With wire end sleeve	0.25 to 1.50 mm² / 24 to 16 AWG
Connection cross section – With double wire end sleeves	Up to 2x 0.75 mm²
Distance between contacts – Left - Right	4.2 mm
Distance between contacts – Above - Below	10.96 mm
Number of pins	12
Type of terminal block	Push-in terminal
Push-in force per contact	Typ. 10 N
Cable type	Only copper wires (no aluminum wires!)
Wire stripping length	7 to 9 mm

Electrical properties

Nominal voltage	240 VAC / 48 VDC
Max. voltage	300 VAC / 60 VDC
Nominal current " data-placement="top" data-html="true" data-container="body" data-content="The respective limit data of the I/O modules must be taken into account!">	10 A / contact
Contact resistance	≤5 mΩ

Ambient conditions

Temperature " data-placement="top" data-html="true" data-container="body" data-content="Identical for operation, storage and transport."> – Operation	Corresponds to the X20 module used
Relative humidity – Operation	Corresponds to the X20 module used
