B&RUsed

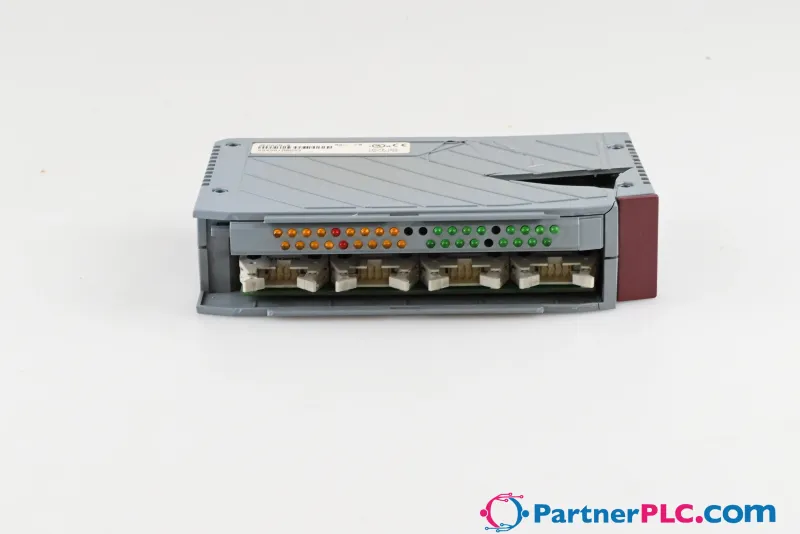

B&R 3DM476.6-broken
With Damage
- MPN
- 3DM476.6-broken
- Category
- Servo & Motion Control
€15.90excl. VAT & shipping
In stock — 1 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 3-month warranty
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the B&R 3DM476.6-broken?
With Damage
Specifications
Short description
| I/O module | 16 digital inputs, 16 digital outputs |
General information
| Diagnostics – Outputs | Yes, using LED status indicator |
| Diagnostics – Operating state of outputs | Yes, using LED status indicator and software |
| Power consumption – 24 VDC | - |
| Power consumption – 5 VDC | 2.5 W |
| Power consumption – Total | 2.5 W |
| Power consumption – External 24 V (DO) | 2.0 W |
| Electrical isolation – Group isolation | Input group - Input group input group - Output group |
| Electrical isolation – Channel - Channel | No |
| Electrical isolation – Channel - PLC | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Status indicators | I/O function per channel, operating state of the outputs |
Digital inputs
| Input filter – Hardware | ≤1 ms |
| Input filter – Software | - |
| Nominal voltage | 24 VDC |
| Input circuit | Sink or source |
Digital outputs
| Nominal voltage | 24 VDC |
| Nominal output current | 0.4 A |
| Total nominal current | 4.8 A |
| Output circuit | Source |
| Output protection | Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads, reverse polarity protection of the output power supply |
| Sensor power supply | External |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 60°C |
| Temperature – Storage | -25 to 70°C |
| Relative humidity – Operation | 5 to 95% |
Mechanical properties
| Dimensions – Width | System 2005 single-width |
| Can be installed on – Base unit | Yes |
| Can be installed on – Expansion unit | Yes |
| Note | The connection is made via DSUB connectors and ribbon cable. |
No matching specifications
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
3DM476.6-broken: frequently asked questions
When can 3DM476.6-broken be shipped?
3DM476.6-broken is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up 3DM476.6-broken in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 3DM476.6-broken.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3DM476.6-broken, subject to availability and destination.
