Planetary gearboxes with output flange 8GF Parts

B&R

8GF40-090hh020klmm

Flange PG, i = 020, 2-stage, IP54

B&R

8GF40-090hh025klmm

Flange PG, i = 025, 2-stage, IP54

B&R

8GF40-090hh032klmm

Flange PG, i = 032, 2-stage, IP54

B&R

8GF40-090hh040klmm

Flange PG, i = 040, 2-stage, IP54

B&R

8GF40-090hh064klmm

Flange PG, i = 064, 2-stage, IP54

B&R

8GF40-090hh100klmm

Flange PG, i = 100, 2-stage, IP54

B&R

8GF40-110hh003klmm

Flange PG, i = 003, 1-stage, IP54

B&R

8GF40-110hh004klmm

Flange PG, i = 004, 1-stage, IP54

B&R

8GF40-110hh005klmm

Flange PG, i = 005, 1-stage, IP54

B&R

8GF40-110hh008klmm

Flange PG, i = 008, 1-stage, IP54

B&R

8GF40-110hh009klmm

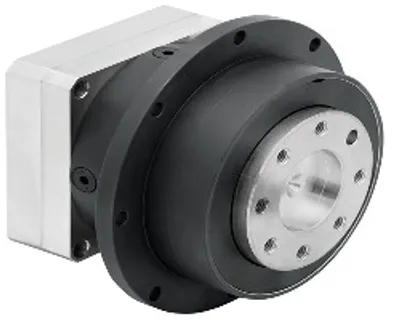

Flange PG, i = 009, 2-stage, IP54

B&R

8GF40-110hh010klmm

Flange PG, i = 010, 1-stage, IP54

B&R

8GF40-110hh012klmm

Flange PG, i = 012, 2-stage, IP54

B&R

8GF40-110hh015klmm

Flange PG, i = 015, 2-stage, IP54

B&R

8GF40-110hh016klmm

Flange PG, i = 016, 2-stage, IP54

B&R

8GF40-110hh020klmm

Flange PG, i = 020, 2-stage, IP54

B&R

8GF40-110hh025klmm

Flange PG, i = 025, 2-stage, IP54

B&R

8GF40-110hh032klmm

Flange PG, i = 032, 2-stage, IP54

B&R

8GF40-110hh040klmm

Flange PG, i = 040, 2-stage, IP54

B&R

8GF40-110hh064klmm

Flange PG, i = 064, 2-stage, IP54

B&R

8GF40-110hh100klmm

Flange PG, i = 100, 2-stage, IP54

B&R

8GF40-064hh007klmm

Flange PG, i = 007, 1-stage, IP65.

B&R

8GF40-090hh007klmm

Flange PG, i = 007, 1 stage, IP 54

B&R

8GF40-110hh007klmm

Flange PG, i = 007, 1 stage, IP 54

Compare Planetary gearboxes with output flange 8GF

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Gear ratio i	Nominal output torque T 2N [Nm]	Max. output torque T 2max [Nm]	Idle torque [Nm] at 20°C and 3000 rpm	Moment of inertia J 1 [kgcm 2]
8GF40-090hh020klmm	20	120	192	0.25	0.45
8GF40-090hh025klmm	25	110	176	0.25	0.44
8GF40-090hh032klmm	32	120	192	0.2	0.46
8GF40-090hh040klmm	40	110	176	0.2	0.46
8GF40-090hh064klmm	64	50	80	0.2	0.45
8GF40-090hh100klmm	100	38	61	0.15	0.43
8GF40-110hh003klmm	3	115	184	1.3	3.43
8GF40-110hh004klmm	4	155	248	1.15	2.28
8GF40-110hh005klmm	5	195	312	0.9	1.84
8GF40-110hh008klmm	8	120	192	0.6	1.45
8GF40-110hh009klmm	9	240	384	0.85	2.87
8GF40-110hh010klmm	10	95	152	0.55	1.42
8GF40-110hh012klmm	12	260	416	0.85	2.75
8GF40-110hh015klmm	15	230	368	0.8	2.68
8GF40-110hh016klmm	16	260	416	0.85	1.96
8GF40-110hh020klmm	20	260	416	0.65	1.84
8GF40-110hh025klmm	25	230	368	0.65	1.64
8GF40-110hh032klmm	32	260	416	0.5	1.42
8GF40-110hh040klmm	40	230	368	0.5	1.4
8GF40-110hh064klmm	64	120	192	0.45	1.38
8GF40-110hh100klmm	100	95	152	0.45	1.35
8GF40-064hh007klmm	7	25	40	0.15	0.084
8GF40-090hh007klmm	7	65	104	0.3	0.47
8GF40-110hh007klmm	7	135	216	0.65	1.64

Common to all listed parts

Reduced backlash J t [arcmin] less than	0
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
