Wall mounting Parts

B&R

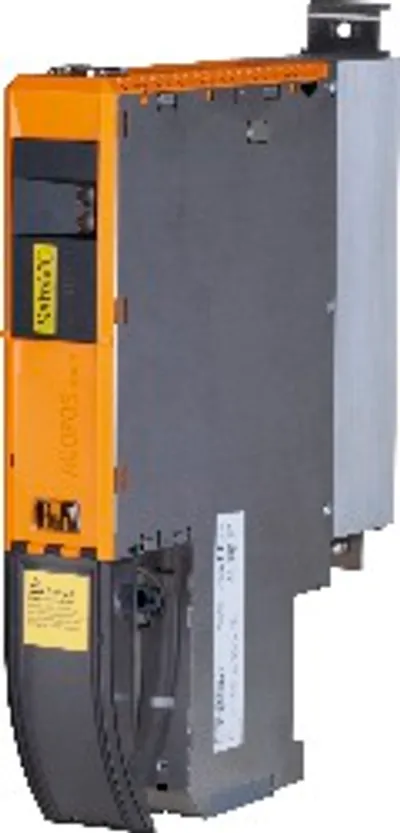

8BVI0014HWSS.000-1

Clearly structured, straightforward implementation via…

B&R

8BVI0028HWSS.000-1

Clearly structured, straightforward implementation via…

B&R

8BVI0055HWSS.000-1

Clearly structured, straightforward implementation via…

B&R

8BVI0110HWSS.000-1

Clearly structured, straightforward implementation via…

B&R

8BVI0220HWSS.000-1

Clearly structured, straightforward implementation via…

B&R

8BVI0330HWSS.000-1

Clearly structured, straightforward implementation via…

B&R

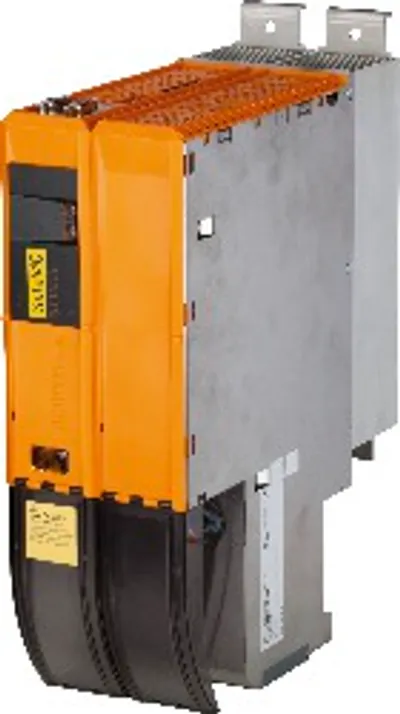

8BVI0440HWSA.000-1

Clearly structured, straightforward implementation via…

B&R

8BVI0440HWSS.000-1

Clearly structured, straightforward implementation via…

B&R

8BVI0660HWSS.000-1

Clearly structured, straightforward implementation via…

B&R

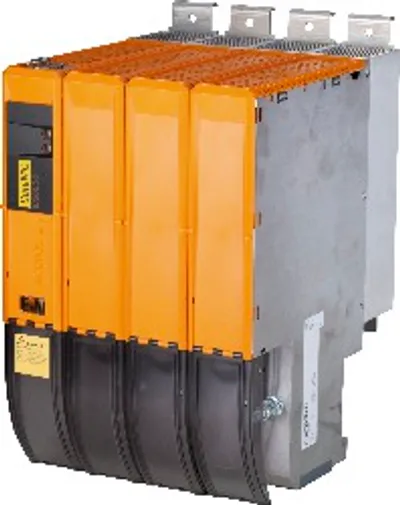

8BVI0880HWSS.004-1

Clearly structured, straightforward implementation via…

B&R

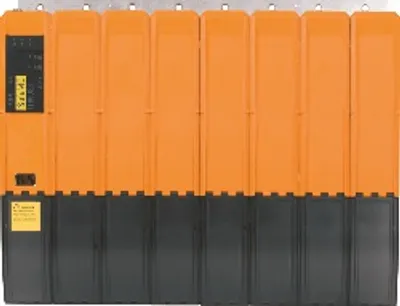

8BVI1650HWSS.004-1

ACOPOSmulti inverter module, 165 A, AS, wall mounting

B&R

8BVI0660HWSA.008-1

ACOPOSmulti SafeMOTION SinCos inverter module, 66 A, AS

B&R

8BVI0660HWSS.008-1

ACOPOSmulti SafeMOTION EnDat 2.2 inverter module, 66 A, AS

B&R

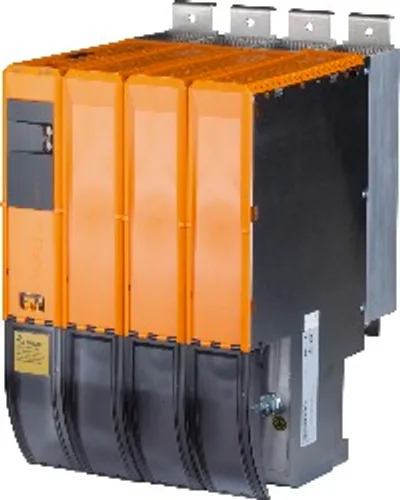

8BVI0880HWSA.008-1

ACOPOSmulti SafeMOTION SinCos inverter module, 88 A, AS

B&R

8BVI0880HWSS.008-1

ACOPOSmulti SafeMOTION EnDat 2.2 inverter module, 88 A, AS

B&R

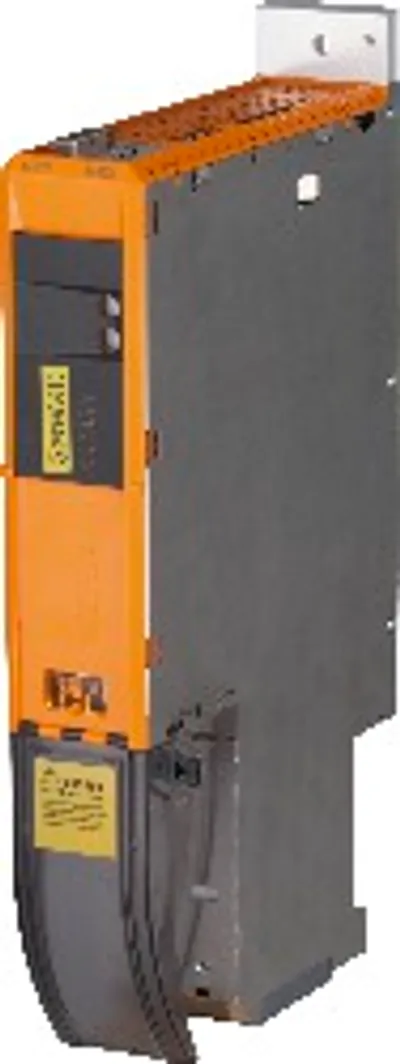

8BVI0014HWSS.000-4

ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

B&R

8BVI0028HWSS.000-4

ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

B&R

8BVI0055HWSS.000-4

ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

B&R

8BVI0110HWSS.000-4

ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

B&R

8BVI0220HWSS.000-4

ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

B&R

8BVI0330HWSS.000-4

ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

B&R

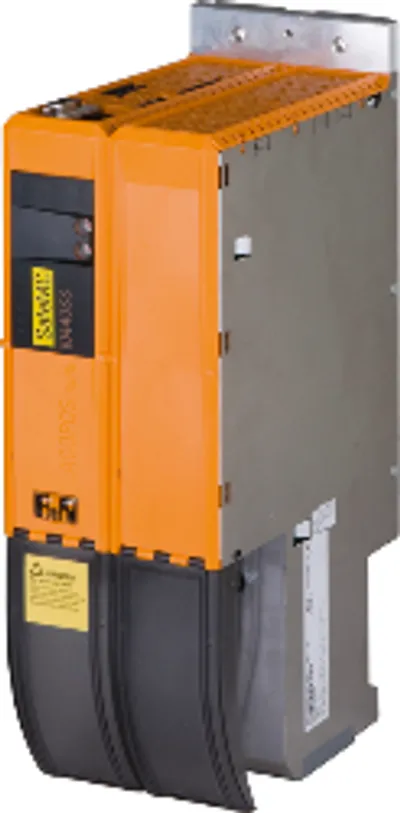

8BVI0440HWSS.000-4

ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

B&R

8BVI0660HWSS.008-4

ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

B&R

8BVI0880HWSS.008-4

ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

Compare Wall mounting

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	DC bus capacitance	Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level	Peak current	Energy efficiency (IE classification) – Nominal losses in standby mode	Weight
8BVI0014HWSS.000-1	165 µF	0.19 A eff per 1000 m	4.7 A eff	8.3 W	Approx. 2.6 kg
8BVI0028HWSS.000-1	165 µF	0.38 A eff per 1000 m	9.5 A eff	8.3 W	Approx. 2.6 kg
8BVI0055HWSS.000-1	165 µF	0.76 A eff per 1000 m	18.9 A eff	8.3 W	Approx. 2.7 kg
8BVI0110HWSS.000-1	330 µF	1.51 A eff per 1000 m	37.7 A eff	8.3 W	Approx. 2.9 kg
8BVI0220HWSS.000-1	495 µF	2.2 A eff per 1000 m	55 A eff	11.3 W	Approx. 5.2 kg
8BVI0330HWSS.000-1	990 µF	3.3 A eff per 1000 m	83 A eff	11 W	Approx. 5.4 kg
8BVI0440HWSA.000-1	990 µF	4.4 A eff per 1000 m	88 A eff	11 W	Approx. 5.4 kg
8BVI0440HWSS.000-1	990 µF	4.4 A eff per 1000 m	88 A eff	11 W	Approx. 5.4 kg
8BVI0660HWSS.000-1	1980 µF	6.6 A eff per 1000 m	132 A eff	11.3 W	Approx. 10.9 kg
8BVI0880HWSS.004-1	1980 µF	8.8 A eff per 1000 m	176 A eff	11.3 W	Approx. 10.9 kg
8BVI1650HWSS.004-1	3630 µF	16.5 A eff per 1000 m	330 A eff	15 W	23 kg
8BVI0660HWSA.008-1	1980 µF	6.6 A eff per 1000 m	132 A eff	11.3 W	Approx. 10.9 kg
8BVI0660HWSS.008-1	1980 µF	6.6 A eff per 1000 m	132 A eff	11.3 W	Approx. 10.55 kg
8BVI0880HWSA.008-1	1980 µF	8.8 A eff per 1000 m	176 A eff	11.3 W	Approx. 10.6 kg
8BVI0880HWSS.008-1	1980 µF	8.8 A eff per 1000 m	176 A eff	11.3 W	Approx. 10.75 kg
8BVI0014HWSS.000-4	165 µF	0.19 A eff per 1000 m	4.7 A eff	9.3 W	Approx. 2.6 kg
8BVI0028HWSS.000-4	165 µF	0.38 A eff per 1000 m	9.5 A eff	9.3 W	Approx. 2.6 kg
8BVI0055HWSS.000-4	165 µF	—	18.9 A eff	—	Approx. 2.7 kg
8BVI0110HWSS.000-4	330 µF	1.51 A eff per 1000 m	37.7 A eff	9.3 W	Approx. 2.9 kg
8BVI0220HWSS.000-4	495 µF	2.2 A eff per 1000 m	55 A eff	12.3 W	Approx. 5.2 kg
8BVI0330HWSS.000-4	990 µF	3.3 A eff per 1000 m	83 A eff	12 W	Approx. 5.4 kg
8BVI0440HWSS.000-4	990 µF	4.4 A eff per 1000 m	88 A eff	12 W	Approx. 5.4 kg
8BVI0660HWSS.008-4	1980 µF	6.6 A eff per 1000 m	132 A eff	12.3 W	Approx. 10.55 kg
8BVI0880HWSS.008-4	1980 µF	8.8 A eff per 1000 m	176 A eff	12.3 W	Approx. 10.75 kg

Common to all listed parts

Voltage – Nominal	750 VDC
Input voltage	25 VDC ±1.6%
Output voltage – DC bus voltage (U DC ): 260 to 315 VDC	25 VDC * (U DC /315)
Output voltage – DC bus voltage (U DC ): 315 to 800 VDC	24 VDC ±6%
Quantity	2
Protective measures – Overload protection	Yes
Nominal switching frequency	5 kHz
Max. output frequency	598 HzPower unit: Limit speed exceeded").">
