B&R
8CM002.12-510 mm² motor cables Parts
B&R
8CM003.12-5
B&R
8CM004.12-5
B&R

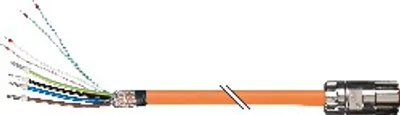

8CM005.12-5
B&R
8CM006.12-5
B&R
8CM007.12-5
B&R
8CM008.12-5
B&R
8CM010.12-5
B&R
8CM015.12-5
B&R
8CM020.12-5
B&R
8CM025.12-5
B&R
8CM040.12-5
B&R
8CM009.12-5Compare 10 mm² motor cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Signal line – Wire insulation | Dimensions – Length | Weight |
|---|---|---|---|
| 8CM002.12-5 | Special thermoplastic material | 2 m | 1.1 kg |
| 8CM003.12-5 | PP | 3 m | 1.6 kg |
| 8CM004.12-5 | pp | 4 m | 2.2 kg |
| 8CM005.12-5 | PP | 5 m | 2.7 kg |
| 8CM006.12-5 | PP | 6 m | 3.2 kg |
| 8CM007.12-5 | PP | 7 m | 3.8 kg |
| 8CM008.12-5 | PP | 8 m | 4.3 kg |
| 8CM010.12-5 | PP | 10 m | 5.4 kg |
| 8CM015.12-5 | PP | 15 m | 8.1 kg |
| 8CM020.12-5 | PP | 20 m | 10.8 kg |
| 8CM025.12-5 | PP | 25 m | 13.5 kg |
| 8CM040.12-5 | PP | 40 m | 21.6 kg |
| 8CM009.12-5 | PP | 9 m | 4.9 kg |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Cable cross section | 4x 10 mm² + (2x 0.75 mm²)C + (2x 1.5 mm²)C |
| Power lines – Quantity | 4 |
| Power lines – Wire insulation | PP |
| Power lines – Wire colors | Black, brown, blue, yellow/green |
