Optical Data Couplers Parts
Compare Optical Data Couplers
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Effective detection range | Threshold detection range | MTTFd | Interface type |
|---|---|---|---|---|---|

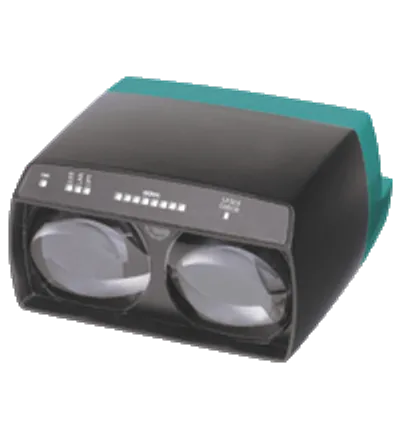

| LS684-DA-EN-9003/F2/146 | 70150480 | 0 ... 150 m | 180 m | 58.6 a | 100 BASE-TX |
| LS684-DA-EN-9003/F2/35/146 | 70150482 | 0 ... 300 m | 320 m | 58.6 a | 100 BASE-TX |
| LS684-DA-EN-9003/F2/35 | 70150481 | 0 ... 300 m | 320 m | 58.6 a | 100 BASE-TX |
| LS684-DA-EN-9003/F2 | 70150479 | 0 ... 150 m | 180 m | 58.6 a | 100 BASE-TX |
| LS684-DA-EN-9003/F1/35/146 | 70150478 | 0 ... 300 m | 320 m | 58.6 a | 100 BASE-TX |
| LS684-DA-EN-9003/F1/35 | 70150477 | 0 ... 300 m | 320 m | 58.6 a | 100 BASE-TX |
| LS684-DA-EN-9003/F1/146 | 70150476 | 0 ... 150 m | 180 m | 58.6 a | 100 BASE-TX |
| LS684-DA-EN-9003/F1 | 70150475 | 0 ... 150 m | 180 m | 58.6 a | 100 BASE-TX |
| LS684-DA-EN/F2/35/146 | 309512 | 0 ... 300 m | 320 m | 58.6 a | 100 BASE-TX |
| LS684-DA-EN/F1/35/146 | 309511 | 0 ... 300 m | 320 m | 58.6 a | 100 BASE-TX |
| LS684-DA-EN/F2/146 | 309510 | 0 ... 150 m | 180 m | 58.6 a | 100 BASE-TX |
| LS684-DA-EN/F1/146 | 309508 | 0 ... 150 m | 180 m | 58.6 a | 100 BASE-TX |
| LS684-DA-EN/F2/35 | 309507 | 0 ... 300 m | 320 m | 58.6 a | 100 BASE-TX |
| LS684-DA-EN/F1/35 | 309506 | 0 ... 300 m | 320 m | 58.6 a | 100 BASE-TX |
| LS684-DA-EN/F2 | 309505 | 0 ... 150 m | 180 m | 58.6 a | 100 BASE-TX |
| LS684-DA-EN/F1 | 309502 | 0 ... 150 m | 180 m | 58.6 a | 100 BASE-TX |
| LS682-DA-EN/F2/35/146 | 265355 | 0 ... 300 m | 350 m | 58.6 a | Ethernet; 100 BASE-TX |
| LS682-DA-EN/F2/146 | 265353 | 0 ... 150 m | 180 m | 58.6 a | Ethernet; 100 BASE-TX |
| LS682-DA-EN/F1/146 | 265352 | 0 ... 150 m | 180 m | 58.6 a | Ethernet; 100 BASE-TX |
| LS682-DA-EN/F1/35/146 | 265354 | 0 ... 300 m | 350 m | 58.6 a | Ethernet; 100 BASE-TX |

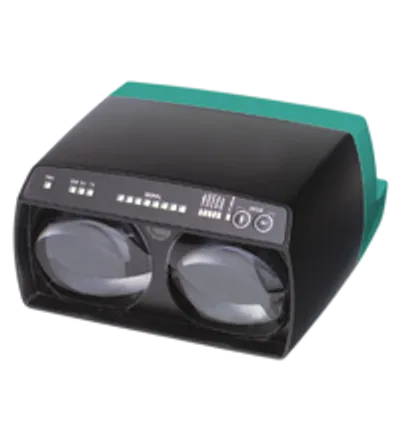

| LS610-DA-P/F1 | 131632 | 0 ... 120 m | 140 m | 250 a | PROFIBUS, galvanically isolated |

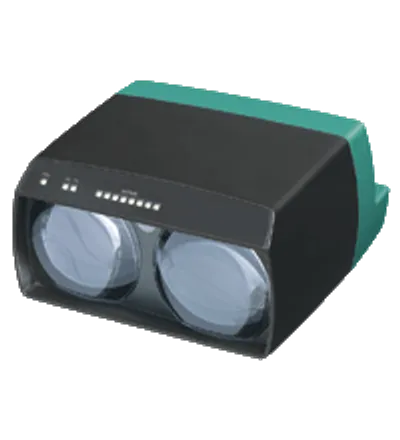

| LS610-DA-IBS/F1 | 131634 | 0 ... 120 m | 140 m | 260 a | RS 422 , galvanically isolated |
| LS610-DA-P/F2/146 | 185148 | 0 ... 120 m | 140 m | 250 a | PROFIBUS, galvanically isolated |
| LS610-DA-P/F1/146 | 185149 | 0 ... 120 m | 140 m | 250 a | PROFIBUS, galvanically isolated |
Common to all listed parts
| Ambient light limit | > 10000 Lux |
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Mission Time (TM) | 10 a |
| Diagnostic Coverage (DC) | 0 % |
| Operating voltage | 18 ... 30 V DC UB |
| No-load supply current | 200 mA I0 |
| Degree of protection | IP65 |
| Material: Housing | ABS / PC |
