Modules Parts
Compare Modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Profile | Mass | Dimensions: Height | Dimensions: Length |
|---|---|---|---|---|---|
| VBA-4E4A-KE1-Z/E2 | 254246 | S-7.A.7 | 80 g | 48.5 mm | 99.6 mm |

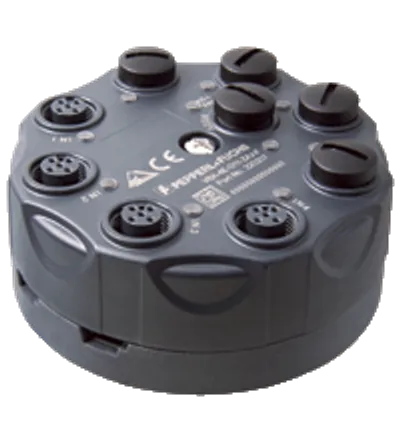

| VBA-4E4E-G11-ZAJ-F | 251408 | S-0.A.2 | 200 g | 35 mm | — |

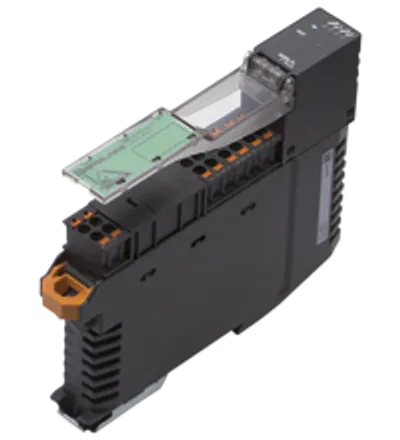

| VBA-4E-KE5-ZEJQ | 263812 | S-0.A.0 | 110 g | 100 mm | 124 mm |
| VBA-4E4A-KE5-ZEJQ/E2L | 263813 | S-7.A.7 | 110 g | 100 mm | 124 mm |
| VBA-4E4A-G12-ZAJ/EA2L | 804017 | S-7.A.7 | 230 g | 35 mm | 151.6 mm |
| VAA-4E4A-G12-ZAJ/EA2L | 193672 | S-7.F | 230 g | 35 mm | 151.6 mm |
| VBA-4E4A-KE-ZEJQ/E2L | 217801 | S-7.A.7 | 150 g | 99 mm | 102 mm |
| VAA-4E4A-KE-ZEJQ/E2L | 209759 | S-7.0 | 150 g | 99 mm | 102 mm |

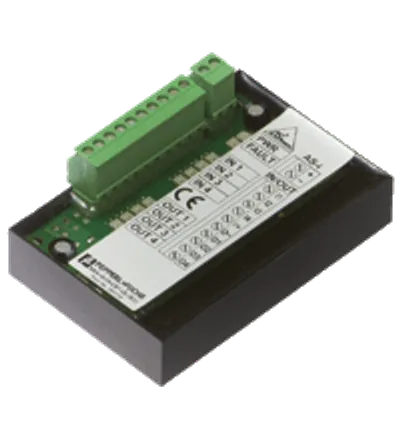

| VBA-4E4A-CB1-ZEJ/E2J | 203158 | S-7.A.7 | 90 g | 29 mm | 76 mm |
| VBA-4E-G11-ZAJ-F | 220207 | S-0.A.2 | 200 g | 35 mm | — |

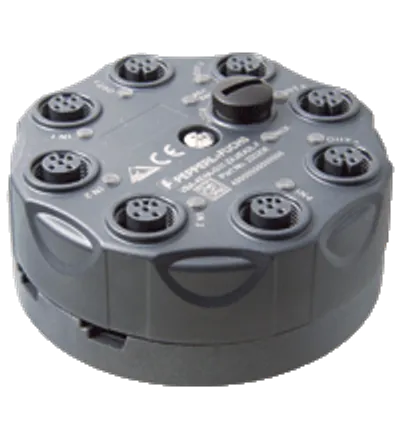

| VBA-4E4A-G11-ZAJ/EA2L-F | 220206 | S-7.A.7 | 200 g | 35 mm | — |
Common to all listed parts
| AS-Interface specification | V3.0 |
| UL File Number | E223772 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Protection class | III |
| Degree of protection | EN 60529:2000 |
| AS-Interface | EN 62026-2:2013 |
