Retroreflective Sensors Parts
Compare Retroreflective Sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Threshold detection range | Ambient light limit | MTTFd | Mass |
|---|---|---|---|---|---|
| OBR5500-18GM40-E0 | 70113328-100096 | 7.8 m | EN 60947-5-2 40000 Lux | 1552 a | approx. 60 g |
| OBG3500-18GM60-E4 | 70113328-100119 | 3.5 m | EN 60947-5-2 20000 Lux | 666 a | approx. 70 g |
| OBG3500-18GM40-E0 | 70113328-100019 | 3.5 m | EN 60947-5-2 20000 Lux | 904 a | approx. 60 g |
| OBR5500-18GK40-E0 | 70113328-100080 | 7.8 m | EN 60947-5-2 40000 Lux | 1552 a | approx. 54 g |
| OBG3500-18GK40-E0 | 70113328-100084 | 3.5 m | EN 60947-5-2 20000 Lux | 904 a | approx. 54 g |

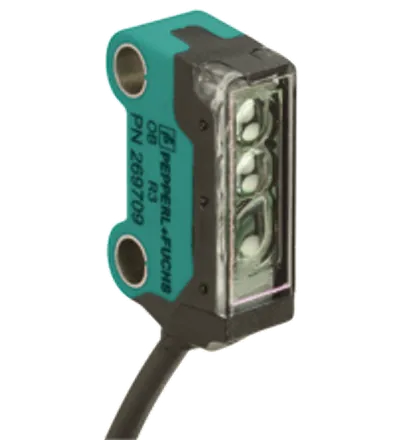

| OBR2000-R3-E0-P-L | 70141818 | 2.3 m | EN 60947-5-2 : 30000 Lux | 800 a | approx. 20 g |

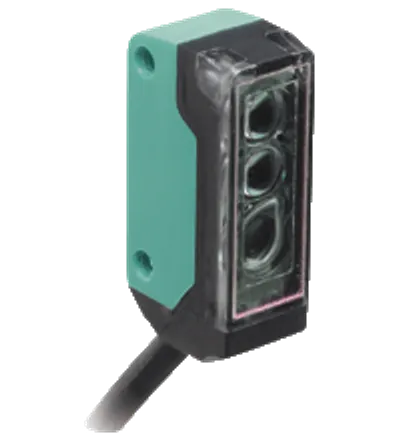

| OBR2000-R2-E0-P-L | 70141813 | 2.3 m | EN 60947-5-2 : 30000 Lux | 800 a | approx. 20 g |
| OBR1000-R3-E0-P | 70141800 | 1.4 m | EN 60947-5-2 : 30000 Lux | 800 a | approx. 20 g |
| OBR1000-R2-E0-P | 70141795 | 1.4 m | EN 60947-5-2 : 30000 Lux | 800 a | approx. 20 g |
| ML100-54-F/102/115 | 307479 | 3 m | EN 60947-5-2:2007+A1:2012 | 860 a | approx. 50 g |
| ML100-54-F/95/103 | 307478 | 3 m | EN 60947-5-2:2007+A1:2012 | 860 a | approx. 10 g |
| OBG8000-R200-2EP-IO-V1 | 295670-100147 | 9 m | EN 60947-5-2 : 18000 Lux | 600 a | approx. 37 g |

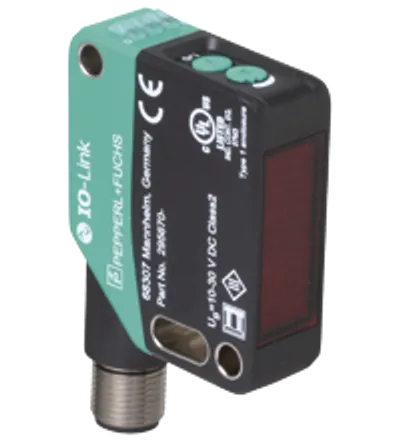

| OBR15M-R200-2EP-IO-V1 | 295670-100012 | 18.5 m | EN 60947-5-2 : 60000 Lux | 724 a | approx. 37 g |

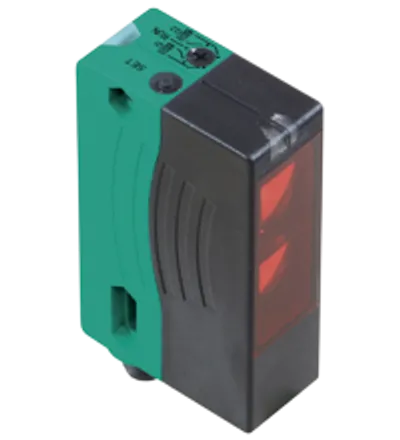

| OQR50M-R300-2EP-V1 | 254272 | — | 50000 Lux | 100 a | 90 g |
| ML100-54/103/115 | 815461 | 4.5 m | EN 60947-5-2:2007+A1:2012 | 860 a | approx. 50 g |
| RLK31-54/25/31/115 | 183065 | 12 m | 50000 Lux | 790 a | 154 g |
| RLK31-6/31/115 | 183067 | 16.5 m | 50000 Lux | 790 a | 154 g |
| RL31-54/73c/136 | 183811 | 12 m | 50000 Lux ; according to EN 60947-5-2 | 920 a | 24 g |
| RL31-54/115/136 | 186472 | 12 m | 50000 Lux ; according to EN 60947-5-2 | 920 a | 133 g |
| ML100-55/102/115 | 210544 | 7 m | EN 60947-5-2:2007+A1:2012 | 860 a | approx. 50 g |
| ML100-55/103/115b | 221827 | 7 m | EN 60947-5-2:2007+A1:2012 | 860 a | approx. 20 g |
| ML100-55/103/115a | 221826 | 7 m | EN 60947-5-2:2007+A1:2012 | 860 a | approx. 20 g |
| RL28-55-Z/49/76a/82b/116 | 421144 | 21 m | 80000 Lux | 690 a | approx. 112 g |
| RLK39-54-Z/31/40a/116 | 088823 | 6 m | IEC / EN 60947-5-2 , 10000 Lux | 803 a | approx. 110 g |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Product standard | EN 60947-5-2 |
