Actuators and indicators, 22 mm, metal, shiny Parts
Compare Actuators and indicators, 22 mm, metal, shiny
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | shape of the actuating element | operating frequency maximum | Net Weight | mounting height | installation width |
|---|---|---|---|---|---|
| 3SU1050-5BP31-0AA0-Z Y11 | Key | 1 800 1/h | 153.5 g | 61 mm | 29.5 mm |
| 3SU1050-5BP31-0AA0-Z Y10 | Key | 1 800 1/h | 153.5 g | 61 mm | 29.5 mm |

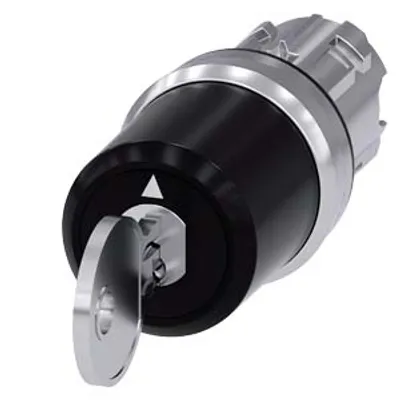

| 3SU1050-5BP31-0AA0-Z Y01+Y19 | Key | 1 800 1/h | 153.5 g | 61 mm | 29.5 mm |
| 3SU1050-5PC01-0AA0-Z Y15 | Key | 1 800 1/h | 150.5 g | 56.3 mm | 29.5 mm |
| 3SU1050-5PC01-0AA0-Z Y12 | Key | 1 800 1/h | 150.5 g | 56.3 mm | 29.5 mm |
| 3SU1050-5PC01-0AA0-Z Y11 | Key | 1 800 1/h | 150.5 g | 56.3 mm | 29.5 mm |
| 3SU1050-5PC01-0AA0-Z Y10 | Key | 1 800 1/h | 150.5 g | 56.3 mm | 29.5 mm |
| 3SU1050-5PC01-0AA0-Z Y01+Y19 | Key | 1 800 1/h | 150.5 g | 56.3 mm | 29.5 mm |
| 3SU1050-5PC01-0AA0-Z Y01 | Key | 1 800 1/h | 150.5 g | 56.3 mm | 29.5 mm |
| 3SU1051-3AB42-0AA0-Z X90 | oval | 3 600 1/h | 0.064 kg | 14.4 mm | 29.9 mm |
| 3SU1051-3AB42-0AA0 | oval | 3 600 1/h | 0.064 kg | 14.4 mm | 29.9 mm |
| 3SU1051-1JB20-0AA0-Z Y19 | round | 600 1/h | 107 g | 45.3 mm | 60 mm |
| 3SU1050-7AB88-0AA0-Z X90 | Extended handle | 2 400 1/h | 82.5 g | 71.3 mm | 30.5 mm |
| 3SU1050-5HF11-0AA0-Z Y12 | Key | 1 800 1/h | 150.5 g | 61 mm | 29.5 mm |
| 3SU1050-5HF11-0AA0-Z Y11 | Key | 1 800 1/h | 150.5 g | 61 mm | 29.5 mm |
| 3SU1050-5HF11-0AA0-Z Y10 | Key | 1 800 1/h | 150.5 g | 61 mm | 29.5 mm |
| 3SU1050-5HF11-0AA0-Z X90 | Key | 1 800 1/h | 150.5 g | 61 mm | 29.5 mm |
| 3SU1050-5HF11-0AA0 | Key | 1 800 1/h | 150.5 g | 61 mm | 29.5 mm |
| 3SU1050-5HF01-0AA0-Z Y19 | Key | 1 800 1/h | 151.5 g | 61 mm | 29.5 mm |
| 3SU1050-5HF01-0AA0-Z Y15 | Key | 1 800 1/h | 151.5 g | 61 mm | 29.5 mm |
| 3SU1050-5PF21-0AA0-Z Y01 | Key | 1 800 1/h | 150.5 g | 56.3 mm | 29.5 mm |
| 3SU1050-5PF11-0AA0 | Key | 1 800 1/h | 148.5 g | 56.3 mm | 29.5 mm |
| 3SU1050-5PF01-0AA0-Z Y19 | Key | 1 800 1/h | 150.5 g | 56.3 mm | 29.5 mm |
| 3SU1050-5PF01-0AA0-Z Y15 | Key | 1 800 1/h | 150.5 g | 56.3 mm | 29.5 mm |
Common to all listed parts
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%) |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| global warming potential [CO2 eq] total | 0.593 kg |
