Actuators and indicators, 22 mm, metal, shiny Parts

Siemens 3SU1153-0AB30-1BA0 – Illuminated pushbutton, 22 mm, round, metal, shiny, yellow, pushbutton, flat, momentary contact type

Siemens

3SU1153-0AB30-1BA0

Illuminated pushbutton, 22 mm, round, metal, shiny, yellow

Siemens 3SU1153-0AB20-3FA0-Z Y19 – Illuminated pushbutton, 22 mm, round, metal, shiny, red, pushbutton, flat, momentary contact type

Siemens

3SU1153-0AB20-3FA0-Z Y19

Illuminated pushbutton, 22 mm, round, metal, shiny, red

Siemens 3SU1153-0AB20-3FA0-Z Y15 – Illuminated pushbutton, 22 mm, round, metal, shiny, red, pushbutton, flat, momentary contact type

Siemens

3SU1153-0AB20-3FA0-Z Y15

Illuminated pushbutton, 22 mm, round, metal, shiny, red

Siemens 3SU1153-0AB20-3FA0-Z Y13 – Illuminated pushbutton, 22 mm, round, metal, shiny, red, pushbutton, flat, momentary contact type

Siemens

3SU1153-0AB20-3FA0-Z Y13

Illuminated pushbutton, 22 mm, round, metal, shiny, red

Siemens 3SU1153-0AB20-3FA0-Z Y12 – Illuminated pushbutton, 22 mm, round, metal, shiny, red, pushbutton, flat, momentary contact type

Siemens

3SU1153-0AB20-3FA0-Z Y12

Illuminated pushbutton, 22 mm, round, metal, shiny, red

Siemens 3SU1150-0AB50-1FA0-Z Y13 – Pushbutton, 22 mm, round, metal, shiny, blue, pushbutton, flat, momentary contact type, 1 NO+1 NC

Siemens

3SU1150-0AB50-1FA0-Z Y13

Pushbutton, 22 mm, round, metal, shiny, blue, pushbutton

Siemens 3SU1150-0AB50-1FA0-Z Y12 – Pushbutton, 22 mm, round, metal, shiny, blue, pushbutton, flat, momentary contact type, 1 NO+1 NC

Siemens

3SU1150-0AB50-1FA0-Z Y12

Pushbutton, 22 mm, round, metal, shiny, blue, pushbutton

Siemens 3SU1150-0AB50-1FA0-Z Y11 – Pushbutton, 22 mm, round, metal, shiny, blue, pushbutton, flat, momentary contact type, 1 NO+1 NC

Siemens

3SU1150-0AB50-1FA0-Z Y11

Pushbutton, 22 mm, round, metal, shiny, blue, pushbutton

Siemens 3SU1150-0AB50-1FA0-Z Y10 – Pushbutton, 22 mm, round, metal, shiny, blue, pushbutton, flat, momentary contact type, 1 NO+1 NC

Siemens

3SU1150-0AB50-1FA0-Z Y10

Pushbutton, 22 mm, round, metal, shiny, blue, pushbutton

Siemens 3SU1150-0AB50-1FA0-Z X90 – Pushbutton, 22 mm, round, metal, shiny, blue, pushbutton, flat, momentary contact type, 1 NO+1 NC

Siemens

3SU1150-0AB50-1FA0-Z X90

Pushbutton, 22 mm, round, metal, shiny, blue, pushbutton

Siemens 3SU1150-0AB50-1FA0 – Pushbutton, 22 mm, round, metal, shiny, blue, pushbutton, flat, momentary contact type, 1 NO+1 NC

Siemens

3SU1150-0AB50-1FA0

Pushbutton, 22 mm, round, metal, shiny, blue, pushbutton

Siemens 3SU1150-0AB50-1BA0-Z Y19 – Pushbutton, 22 mm, round, metal, shiny, blue, pushbutton, flat, momentary contact type, 1 NO, screw terminal

Siemens

3SU1150-0AB50-1BA0-Z Y19

Pushbutton, 22 mm, round, metal, shiny, blue, pushbutton

Siemens 3SU1050-1CD10-0AA0-Z Y12 – Mushroom pushbutton, 22 mm, round, metal, shiny, black, 60 mm, momentary contact type, with laser labeling

Siemens

3SU1050-1CD10-0AA0-Z Y12

Mushroom pushbutton, 22 mm, round, metal, shiny, black

Siemens 3SU1050-1CD10-0AA0-Z Y11 – Mushroom pushbutton, 22 mm, round, metal, shiny, black, 60 mm, momentary contact type, with laser labeling

Siemens

3SU1050-1CD10-0AA0-Z Y11

Mushroom pushbutton, 22 mm, round, metal, shiny, black

Siemens 3SU1050-1CD10-0AA0-Z Y10 – Mushroom pushbutton, 22 mm, round, metal, shiny, black, 60 mm, momentary contact type, with laser labeling

Siemens

3SU1050-1CD10-0AA0-Z Y10

Mushroom pushbutton, 22 mm, round, metal, shiny, black

Siemens 3SU1050-1CD10-0AA0-Z X90 – Mushroom pushbutton, 22 mm, round, metal, shiny, black, 60 mm, momentary contact type, Z=40-unit packaging

Siemens

3SU1050-1CD10-0AA0-Z X90

Mushroom pushbutton, 22 mm, round, metal, shiny, black

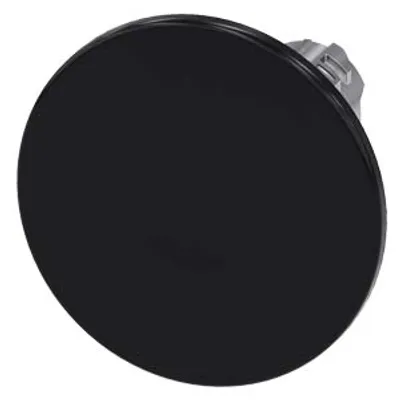

Siemens 3SU1050-1CD10-0AA0 – Mushroom pushbutton, 22 mm, round, metal, shiny, black, 60 mm, momentary contact type

Siemens

3SU1050-1CD10-0AA0

Mushroom pushbutton, 22 mm, round, metal, shiny, black

Siemens 3SU1050-1CA20-0AA0-Z Y19 – Mushroom pushbutton, 22 mm, round, metal, shiny, red, 60 mm, latching, pull-to-unlatch mechanism

Siemens

3SU1050-1CA20-0AA0-Z Y19

Mushroom pushbutton, 22 mm, round, metal, shiny, red, 60 mm

Siemens 3SU1050-1CA20-0AA0-Z Y15 – Mushroom pushbutton, 22 mm, round, metal, shiny, red, 60 mm, latching, pull-to-unlatch mechanism

Siemens

3SU1050-1CA20-0AA0-Z Y15

Mushroom pushbutton, 22 mm, round, metal, shiny, red, 60 mm

Siemens 3SU1050-5LM01-0AA0-Z X90 – Siemens keyswitch, C, 22 mm, round, metal, shiny, lock number STGH10, with 2 keys, 3 switch positions I>O

Siemens

3SU1050-5LM01-0AA0-Z X90

Keyswitch, C, 22 mm, round, metal, shiny

Siemens 3SU1050-5LM01-0AA0 – Siemens keyswitch, C, 22 mm, round, metal, shiny, lock number STGH10, with 2 keys, 3 switch positions I>O

Siemens

3SU1050-5LM01-0AA0

Keyswitch, C, 22 mm, round, metal, shiny

Siemens 3SU1050-5LF11-0AA0-Z Y19 – Siemens keyswitch, C, 22 mm, round, metal, shiny, lock number STGH10, with 2 keys, 2 switch positions O-I

Siemens

3SU1050-5LF11-0AA0-Z Y19

Keyswitch, C, 22 mm, round, metal, shiny

Siemens 3SU1050-5LF11-0AA0-Z Y15 – Siemens keyswitch, C, 22 mm, round, metal, shiny, lock number STGH10, with 2 keys, 2 switch positions O-I

Siemens

3SU1050-5LF11-0AA0-Z Y15

Keyswitch, C, 22 mm, round, metal, shiny

Siemens 3SU1050-5LF11-0AA0-Z Y12 – Siemens keyswitch, C, 22 mm, round, metal, shiny, lock number STGH10, with 2 keys, 2 switch positions O-I

Siemens

3SU1050-5LF11-0AA0-Z Y12

Keyswitch, C, 22 mm, round, metal, shiny

Compare Actuators and indicators, 22 mm, metal, shiny

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	color of the actuating element	outer diameter of the actuating element	mechanical service life (operating cycles) typical	Net Weight	installation depth
3SU1153-0AB30-1BA0	yellow	29.45 mm	3 000 000	95.5 g	49.7 mm
3SU1153-0AB20-3FA0-Z Y19	red	29.45 mm	3 000 000	57.5 g	71.7 mm
3SU1153-0AB20-3FA0-Z Y15	red	29.45 mm	3 000 000	57.5 g	71.7 mm
3SU1153-0AB20-3FA0-Z Y13	red	29.45 mm	3 000 000	57.5 g	71.7 mm
3SU1153-0AB20-3FA0-Z Y12	red	29.45 mm	3 000 000	57.5 g	71.7 mm
3SU1150-0AB50-1FA0-Z Y13	blue	29.45 mm	10 000 000	74.5 g	71.7 mm
3SU1150-0AB50-1FA0-Z Y12	blue	29.45 mm	10 000 000	74.5 g	71.7 mm
3SU1150-0AB50-1FA0-Z Y11	blue	29.45 mm	10 000 000	74.5 g	71.7 mm
3SU1150-0AB50-1FA0-Z Y10	blue	29.45 mm	10 000 000	74.5 g	71.7 mm
3SU1150-0AB50-1FA0-Z X90	blue	29.45 mm	10 000 000	74.5 g	71.7 mm
3SU1150-0AB50-1FA0	blue	29.45 mm	10 000 000	74.5 g	71.7 mm
3SU1150-0AB50-1BA0-Z Y19	blue	29.45 mm	10 000 000	66.5 g	49.7 mm
3SU1050-1CD10-0AA0-Z Y12	black	60 mm	10 000 000	0.045 kg	24.4 mm
3SU1050-1CD10-0AA0-Z Y11	black	60 mm	10 000 000	0.045 kg	24.4 mm
3SU1050-1CD10-0AA0-Z Y10	black	60 mm	10 000 000	0.045 kg	24.4 mm
3SU1050-1CD10-0AA0-Z X90	black	60 mm	10 000 000	0.045 kg	24.4 mm
3SU1050-1CD10-0AA0	black	60 mm	10 000 000	0.045 kg	24.4 mm
3SU1050-1CA20-0AA0-Z Y19	red	60 mm	500 000	62.8 g	24.4 mm
3SU1050-1CA20-0AA0-Z Y15	red	60 mm	500 000	62.8 g	24.4 mm
3SU1050-5LM01-0AA0-Z X90	—	29.5 mm	300 000	152.5 g	25.4 mm
3SU1050-5LM01-0AA0	—	29.5 mm	300 000	152.5 g	25.4 mm
3SU1050-5LF11-0AA0-Z Y19	—	29.5 mm	300 000	150.5 g	25.4 mm
3SU1050-5LF11-0AA0-Z Y15	—	29.5 mm	300 000	150.5 g	25.4 mm
3SU1050-5LF11-0AA0-Z Y12	—	29.5 mm	300 000	150.5 g	25.4 mm

Common to all listed parts

product component front ring	Yes
design of the front ring	Standard
material of the front ring	Metal, high gloss
color of the front ring	silver
protection class IP	IP66, IP67, IP69(IP69K)
degree of protection NEMA rating	1, 2, 3, 3R, 4, 4X, 12, 13
reference code according to IEC 81346-2	S
Substance Prohibitance (day/month/year)	10/01/2014
