Actuators and indicators, 22 mm, metal, shiny Parts
Compare Actuators and indicators, 22 mm, metal, shiny
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | outer diameter of the actuating element | Net Weight | type of electrical connection | mounting height | installation depth |
|---|---|---|---|---|---|
| 3SU1150-0AB40-3FA0-Z Y11 | 29.45 mm | 95.5 g | spring-loaded terminals | 11 mm | 71.7 mm |

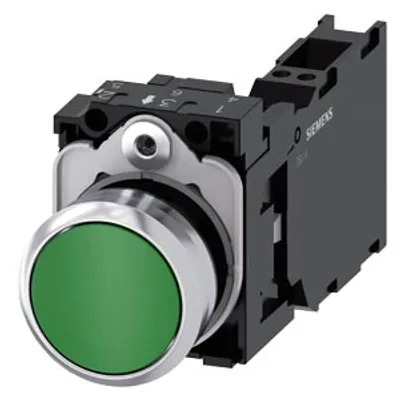

| 3SU1150-0AB40-3FA0-Z Y10 | 29.45 mm | 95.5 g | spring-loaded terminals | 11 mm | 71.7 mm |
| 3SU1150-0AB40-3FA0-Z X90 | 29.45 mm | 95.5 g | spring-loaded terminals | 11 mm | 71.7 mm |
| 3SU1152-6AA50-3AA0-Z Y19 | 29.45 mm | 54.5 g | other | 11.8 mm | 49.7 mm |
| 3SU1152-6AA50-3AA0-Z Y15 | 29.45 mm | 54.5 g | other | 11.8 mm | 49.7 mm |
| 3SU1152-6AA50-3AA0-Z Y13 | 29.45 mm | 54.5 g | other | 11.8 mm | 49.7 mm |
| 3SU1156-6AA40-3AA0-Z Y12 | 29.45 mm | 55.5 g | other | 11.8 mm | 49.7 mm |
| 3SU1156-6AA40-3AA0-Z Y11 | 29.45 mm | 55.5 g | other | 11.8 mm | 49.7 mm |
| 3SU1156-6AA40-3AA0-Z Y10 | 29.45 mm | 55.5 g | other | 11.8 mm | 49.7 mm |
| 3SU1156-6AA40-3AA0-Z X90 | 29.45 mm | 55.5 g | other | 11.8 mm | 49.7 mm |
| 3SU1156-6AA40-3AA0 | 29.45 mm | 55.5 g | other | 11.8 mm | 49.7 mm |
| 3SU1156-6AA40-1AA0-Z Y19 | 29.45 mm | 56.5 g | other | 11.8 mm | 49.7 mm |
| 3SU1156-6AA40-1AA0-Z Y15 | 29.45 mm | 56.5 g | other | 11.8 mm | 49.7 mm |
| 3SU1150-0AB40-1FA0-Z Y10 | 29.45 mm | 74.5 g | screw terminal | 11 mm | 71.7 mm |
| 3SU1150-0AB40-1BA0-Z Y13 | 29.45 mm | 66.5 g | screw terminal | 11 mm | 49.7 mm |
| 3SU1150-0AB40-1BA0-Z Y12 | 29.45 mm | 66.5 g | screw terminal | 11 mm | 49.7 mm |
| 3SU1150-0AB40-1BA0-Z Y11 | 29.45 mm | 66.5 g | screw terminal | 11 mm | 49.7 mm |

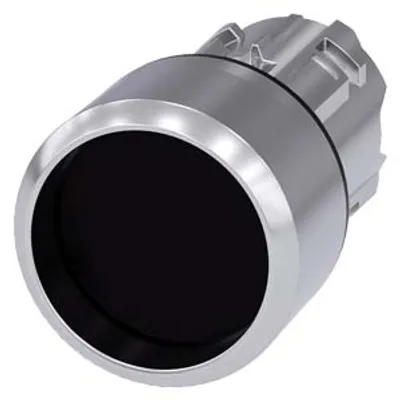

| 3SU1050-0CB10-0AA0 | 29.5 mm | 48 g | — | 18.1 mm | 24.3 mm |
| 3SU1050-0BB60-0AA0-Z Y19 | 29.5 mm | 40 g | — | 16.2 mm | 24.3 mm |

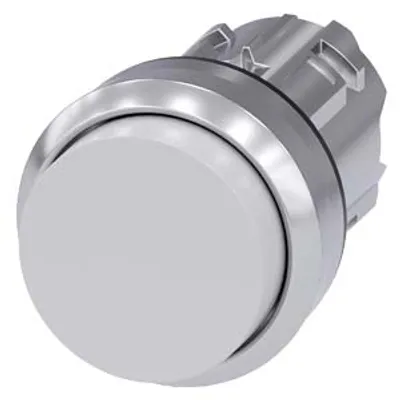

| 3SU1050-0BB60-0AA0-Z Y15 | 29.5 mm | 40 g | — | 16.2 mm | 24.3 mm |
| 3SU1050-0BB60-0AA0-Z Y13 | 29.5 mm | 40 g | — | 16.2 mm | 24.3 mm |
| 3SU1050-0BB60-0AA0-Z Y12 | 29.5 mm | 40 g | — | 16.2 mm | 24.3 mm |
| 3SU1050-0BB60-0AA0-Z Y11 | 29.5 mm | 40 g | — | 16.2 mm | 24.3 mm |
| 3SU1050-0BB60-0AA0-Z Y10 | 29.5 mm | 40 g | — | 16.2 mm | 24.3 mm |
Common to all listed parts
| material of the actuating element | plastic |
| shape of the actuating element | round |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
