Actuators and indicators, 22 mm, metal, shiny Parts
Compare Actuators and indicators, 22 mm, metal, shiny
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the actuating element | color of the actuating element | outer diameter of the actuating element | Net Weight | installation depth |
|---|---|---|---|---|---|
| 3SU1050-7BD88-0AA0-Z X90 | with mechanical interlocking | black | 30.5 mm | 90.5 g | 25.5 mm |
| 3SU1050-7AE88-0AA0-Z Y19 | without mechanical interlock | black | 30.5 mm | 85.5 g | 25.6 mm |
| 3SU1050-7AE88-0AA0-Z X90 | without mechanical interlock | black | 30.5 mm | 85.5 g | 25.6 mm |
| 3SU1050-7AE88-0AA0 | without mechanical interlock | black | 30.5 mm | 85.5 g | 25.6 mm |
| 3SU1051-1BD30-0AA0-Z Y12 | illuminated | yellow | 40 mm | 46.5 g | 24.4 mm |
| 3SU1051-1BD30-0AA0-Z Y11 | illuminated | yellow | 40 mm | 46.5 g | 24.4 mm |
| 3SU1051-1BD30-0AA0-Z Y10 | illuminated | yellow | 40 mm | 46.5 g | 24.4 mm |
| 3SU1150-0AB10-1FA0-Z Y10 | Button, flat | black | 29.45 mm | 74.5 g | 71.7 mm |
| 3SU1150-0AB10-1FA0-Z X90 | Button, flat | black | 29.45 mm | 74.5 g | 71.7 mm |
| 3SU1150-0AB10-1FA0 | Button, flat | black | 29.45 mm | 74.5 g | 71.7 mm |
| 3SU1051-1AD30-0AA0-Z Y13 | illuminated | yellow | 30 mm | 43.5 g | 24.4 mm |
| 3SU1051-1AD30-0AA0-Z Y12 | illuminated | yellow | 30 mm | 43.5 g | 24.4 mm |
| 3SU1051-1AD30-0AA0-Z Y11 | illuminated | yellow | 30 mm | 43.5 g | 24.4 mm |
| 3SU1051-1AD30-0AA0-Z Y10 | illuminated | yellow | 30 mm | 43.5 g | 24.4 mm |
| 3SU1051-1AD30-0AA0-Z X90 | illuminated | yellow | 30 mm | 43.5 g | 24.4 mm |
| 3SU1051-1AD30-0AA0 | illuminated | yellow | 30 mm | 43.5 g | 24.4 mm |
| 3SU1051-1AA70-0AA0-Z Y19 | illuminated | clear | 30 mm | 57.5 g | 24.4 mm |
| 3SU1153-0AB60-3FA0-Z Y11 | Button, flat | white | 29.45 mm | 77.5 g | 71.7 mm |
| 3SU1153-0AB60-3FA0-Z Y10 | Button, flat | white | 29.45 mm | 77.5 g | 71.7 mm |
| 3SU1153-0AB60-3FA0-Z X90 | Button, flat | white | 29.45 mm | 77.5 g | 71.7 mm |
| 3SU1153-0AB60-3FA0 | Button, flat | white | 29.45 mm | 77.5 g | 71.7 mm |

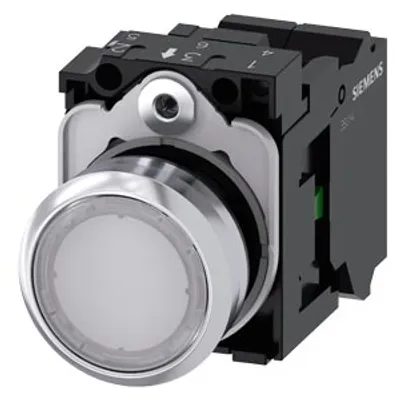

| 3SU1153-0AB60-3BA0 | Button, flat | white | 29.45 mm | 72.5 g | 49.7 mm |
| 3SU1153-0AB60-1FA0-Z Y19 | Button, flat | white | 29.45 mm | 78.5 g | 71.7 mm |
| 3SU1153-0AB60-1FA0-Z Y15 | Button, flat | white | 29.45 mm | 78.5 g | 71.7 mm |
Common to all listed parts
| material of the actuating element | plastic |
| product component front ring | Yes |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| shape of the installation opening | round |
