X20 PLC Parts

B&R

Interfaces, 1x RS232, 1x Ethernet, 1x POWERLINK (V2)

B&R

Interfaces, 1x RS232, 1x Ethernet, 1x POWERLINK (V1/V2)

B&R

Interfaces, 1x RS232, 1x Ethernet, 1x POWERLINK (V1/V2)

B&R

Interfaces, 1x RS232, 1x Ethernet, 1x POWERLINK (V1/V2)

B&R

Interfaces, 1x RS232, 1x Ethernet, 1x POWERLINK (V1/V2)

B&R

Interfaces, 1x RS232, 1x Ethernet, 1x POWERLINK (V2)

Compare X20 PLC

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Power consumption without interface module and USB	Processor – Type	Processor – Clock frequency	Standard memory – RAM	Typical instruction cycle time
X20cCP1684	6.9 W	Atom E3915	400 MHz (compatible).	512 MB LPDDR4 SDRAM	0.0044 µs
X20cCP1584	8.6 W	Atom E620T	0.6 GHz	256 MB DDR2 SDRAM	0.0075 µs

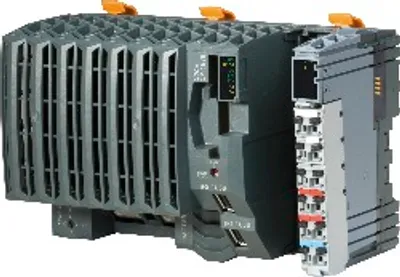

X20cCP1586	9.7 W	Atom E680T	1.6 GHz	512 MB DDR2 SDRAM	0.0027 µs
X20cCP3584	8.6 W	Atom E620T	0.6 GHz	256 MB DDR2 SDRAM	0.0075 µs

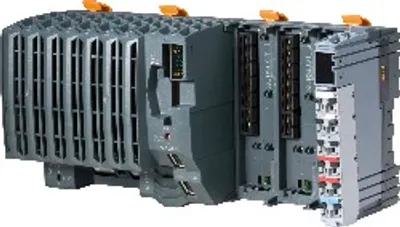

X20cCP3586	9.7 W	Atom E680T	1.6 GHz	512 MB DDR2 SDRAM	0.0027 µs
X20cCP3687X	8 W	Atom E3940	1.6 GHz	2 GB LPDDR4 SDRAM	0.0010 µs

System module	Controller
Diagnostics – Battery	Yes, using LED status indicator and software
Diagnostics – CPU function	Yes, using LED status indicator
Diagnostics – CompactFlash	Yes, using LED status indicator
Diagnostics – Ethernet	Yes, using LED status indicator
Diagnostics – POWERLINK	Yes, using LED status indicator
Diagnostics – Temperature	Yes, using software register
Support – Storage health data support	Yes
