140G Circuit Breakers Parts
Compare 140G Circuit Breakers
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Number of Poles | Rated Current(A) | Frame Size | Protection | Current Range |
|---|---|---|---|---|---|
| 140G-N6H3-E12-Z1-SD-AJ | 3 Poles | 1200 A | N frame | LSI (Electronic DIP Switch) | 100% Rated |
| 140G-N6H3-E12-Z1 | 3 Poles | 1200 A | N frame | LSI (Electronic DIP Switch) | 100% Rated |
| 140G-N6H3-E12-UJ-FJ | 3 Poles | 1200 A | N frame | LSI (Electronic DIP Switch) | 80% Rated |
| 140G-N6H3-E12-UD-AJ | 3 Poles | 1200 A | N frame | LSI (Electronic DIP Switch) | 80% Rated |
| 140G-N6H3-E12-SD | 3 Poles | 1200 A | N frame | LSI (Electronic DIP Switch) | 80% Rated |
| 140G-N5H3-E12-SB-FB | 3 Poles | 1200 A | N frame | LSI (Electronic DIP Switch) | 80% Rated |
| 140G-N5H3-E12-FB | 3 Poles | 1200 A | N frame | LSI (Electronic DIP Switch) | 80% Rated |
| 140G-N5H3-E12-AB | 3 Poles | 1200 A | N frame | LSI (Electronic DIP Switch) | 80% Rated |
| 140G-N0K4-E12-Z1 | 4 Poles | 1200 A | N frame | LSIG-M (electronic) | 100% Rated |
| 140G-N0K3-E12-Z1-FB | 3 Poles | 1200 A | N frame | LSIG-M (electronic) | 100% Rated |
| 140G-N0K3-E12-Z1 | 3 Poles | 1200 A | N frame | LSIG-M (electronic) | 100% Rated |
| 140G-N0H4-E12-Z1 | 4 Poles | 1200 A | N frame | LSI (Electronic DIP Switch) | 100% Rated |

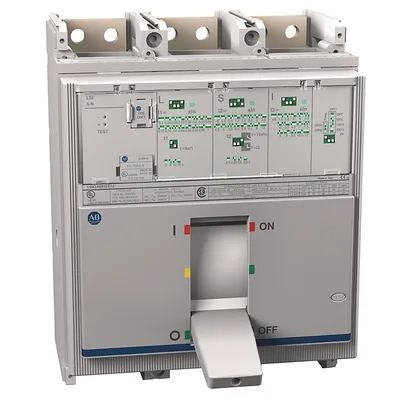

| 140G-N0H3-E12-Z1 | 3 Poles | 1200 A | N frame | LSI (Electronic DIP Switch) | 100% Rated |
| 140G-M6I3-D80-Z1-CA | 3 Poles | 800 A | M frame | LSIG (Electronic DIP Switch) | 100% Rated |
| 140G-M6I3-D80-Z1-AA | 3 Poles | 800 A | M frame | LSIG (Electronic DIP Switch) | 100% Rated |
| 140G-M6I3-D80-Z1 | 3 Poles | 800 A | M frame | LSIG (Electronic DIP Switch) | 100% Rated |
| 140G-M6I3-D80-UJ-CJ | 3 Poles | 800 A | M frame | LSIG (Electronic DIP Switch) | 80% Rated |
| 140G-M6I3-D80-SD-FB | 3 Poles | 800 A | M frame | LSIG (Electronic DIP Switch) | 80% Rated |
| 140G-M6I3-D80-SD-AA | 3 Poles | 800 A | M frame | LSIG (Electronic DIP Switch) | 80% Rated |

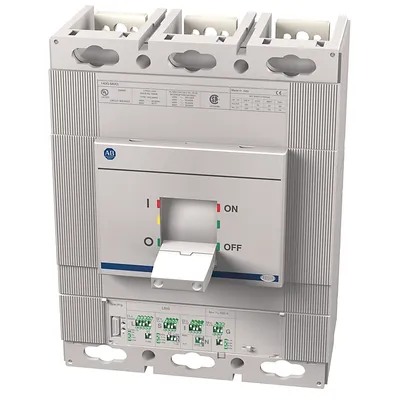

| 140G-M6I3-D80-SD | 3 Poles | 800 A | M frame | LSIG (Electronic DIP Switch) | 80% Rated |
| 140G-M6I3-D80 | 3 Poles | 800 A | M frame | LSIG (Electronic DIP Switch) | 80% Rated |
| 140G-M6I3-D63-UJ-AA | 3 Poles | 630 A (IEC only) | M frame | LSIG (Electronic DIP Switch) | — |
Common to all listed parts
| Device Type | 140G - Molded Case Circuit Breaker |
| Assembly | Factory Assembled |
