140G Circuit Breakers Parts
Compare 140G Circuit Breakers
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Number of Poles | Rated Current(A) | Frame Size | Protection | Auxiliary and Alarm Contacts |
|---|---|---|---|---|---|
| 140G-H6C3-C20-MT | 3 Poles | 20 A | H frame | T/M - Thermal Magnetic | — |
| 140G-H6C3-C20-KJ | 3 Poles | 20 A | H frame | T/M - Thermal Magnetic | 1 NO/NC AUX, 24V |
| 140G-H6C3-C20-KA-MT | 3 Poles | 20 A | H frame | T/M - Thermal Magnetic | 1 NO/NC AUX, 250V |

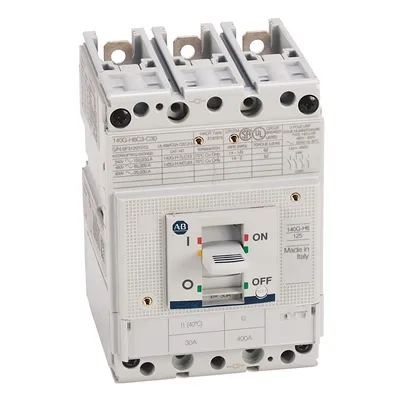

| 140G-H6C3-C20-AJ-MT | 3 Poles | 20 A | H frame | T/M - Thermal Magnetic | 1 NO/NC AUX + Alarm, 24V |
| 140G-H6C3-C20-AA | 3 Poles | 20 A | H frame | T/M - Thermal Magnetic | 1 NO/NC AUX + Alarm, 250V |
| 140G-KC0F3-D30 | 3 Poles | 300 A | KC frame (current limiting) | T/M - Thermal Magnetic | — |
| 140G-K6K3-D40-Z1-SJ-CA | 3 Poles | 400 A | K frame | LSIG-M (electronic) | 3 NO/NC AUX + Alarm, 250V |
| 140G-M6F3-D80-SD-AA | 3 Poles | 800 A | M frame | T/M - Thermal Magnetic | 1 NO/NC AUX + Alarm, 250V |
| 140G-M6F3-D80-CJ | 3 Poles | 800 A | M frame | T/M - Thermal Magnetic | 3 NO/NC AUX + Alarm, 24V |

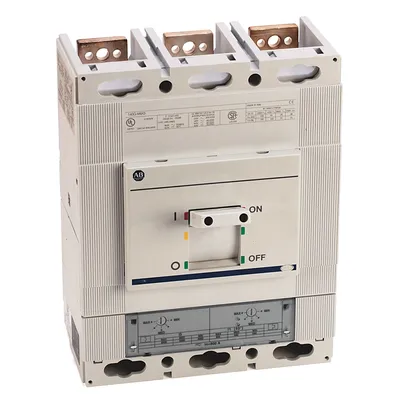

| 140G-M6F3-D80 | 3 Poles | 800 A | M frame | T/M - Thermal Magnetic | — |
| 140G-M6F3-D63-CJ | 3 Poles | 630 A (IEC only) | M frame | T/M - Thermal Magnetic | 3 NO/NC AUX + Alarm, 24V |
| 140G-M6F3-D60-Z1-FB | 3 Poles | 600 A | M frame | T/M - Thermal Magnetic | 2 NO/NC AUX, 400V |
| 140G-M6F3-D60-Z1-AA | 3 Poles | 600 A | M frame | T/M - Thermal Magnetic | 1 NO/NC AUX + Alarm, 250V |
| 140G-M6F3-D60-SJ-CJ | 3 Poles | 600 A | M frame | T/M - Thermal Magnetic | 3 NO/NC AUX + Alarm, 24V |
| 140G-M6F3-D60-SD-AB | 3 Poles | 600 A | M frame | T/M - Thermal Magnetic | 1 NO/NC AUX + Alarm, 400V |
| 140G-K6F3-D30-SA-AA | 3 Poles | 300 A | K frame | T/M - Thermal Magnetic | 1 NO/NC AUX + Alarm, 250V |

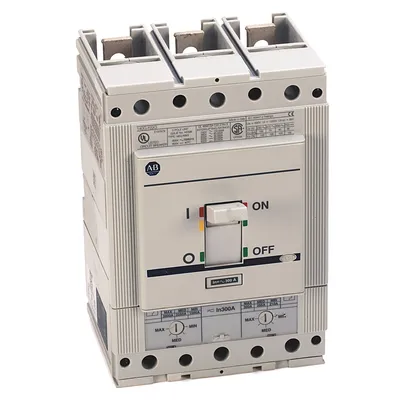

| 140G-K6F3-D30-MU | 3 Poles | 300 A | K frame | T/M - Thermal Magnetic | — |
| 140G-K6F3-D30-CA | 3 Poles | 300 A | K frame | T/M - Thermal Magnetic | 3 NO/NC AUX + Alarm, 250V |
| 140G-K6F3-D30-AB-MU | 3 Poles | 300 A | K frame | T/M - Thermal Magnetic | 1 NO/NC AUX + Alarm, 400V |
| 140G-K6F3-D30 | 3 Poles | 300 A | K frame | T/M - Thermal Magnetic | — |
| 140G-K6F4-D30-AA | 4 Poles | 300 A | K frame | T/M - Thermal Magnetic | 1 NO/NC AUX + Alarm, 250V |
| 140G-K6F3-D30-Z1-AA | 3 Poles | 300 A | K frame | T/M - Thermal Magnetic | 1 NO/NC AUX + Alarm, 250V |
Common to all listed parts
| Device Type | 140G - Molded Case Circuit Breaker |
| Assembly | Factory Assembled |
