Modular kits, form 3b Parts

Siemens

Separation lateral, H: 550 mm

Siemens

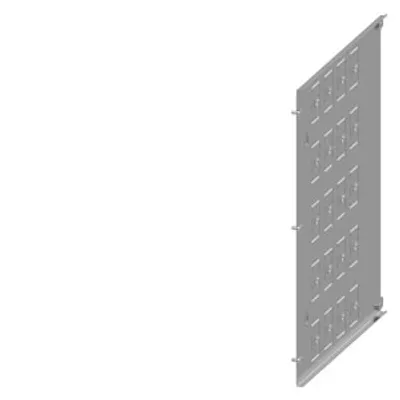

Separation lateral, H: 500 mm

Siemens

Separation lateral, H: 450 mm

Siemens

Separation lateral, H: 400 mm

Siemens

Separation lateral, H: 100 mm

Siemens

Separation rear W: 600 mm H: 300 mm

Siemens

Separation rear W: 600 mm H: 250 mm

Siemens

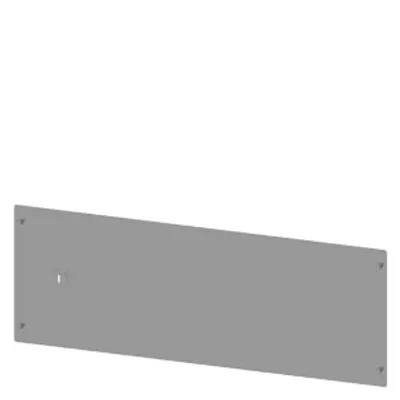

Separation rear W: 600 mm H: 200 mm

Siemens

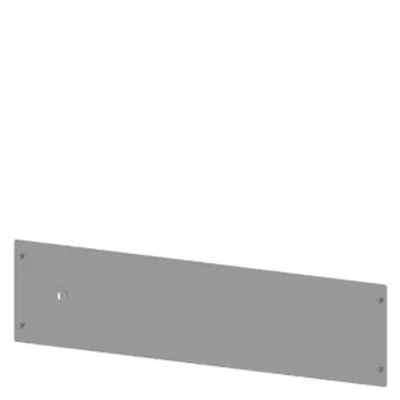

Separation rear W: 600 mm H: 150 mm

Siemens

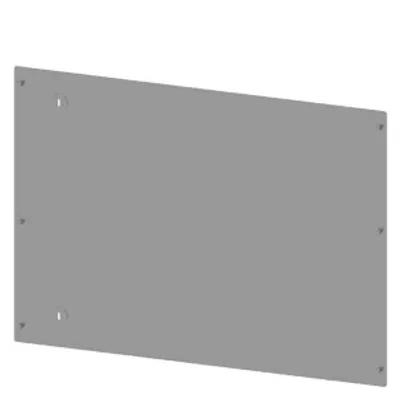

Separation rear W: 600 mm H: 400 mm

Siemens

Separation rear W: 600 mm H: 350 mm

Siemens

Separation rear W: 600 mm H: 550 mm

Compare Modular kits, form 3b

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	height	width	depth	installation width for cabinet installation	Net Weight

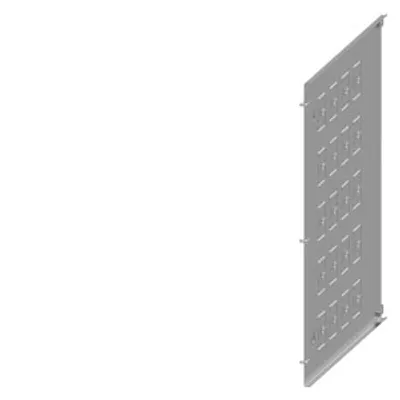

8PQ5000-2BA41	550 mm	2 mm	400 mm	1.5 mm	2.17 kg
8PQ5000-2BA40	500 mm	2 mm	400 mm	1.5 mm	1.98 kg

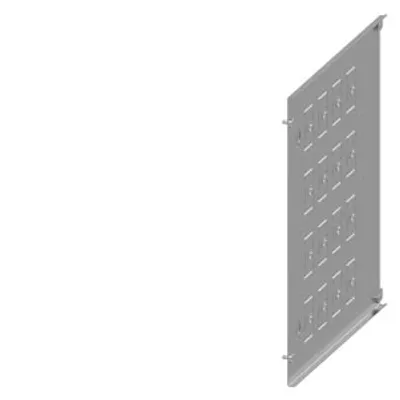

8PQ5000-2BA38	450 mm	2 mm	400 mm	1.5 mm	1.75 kg

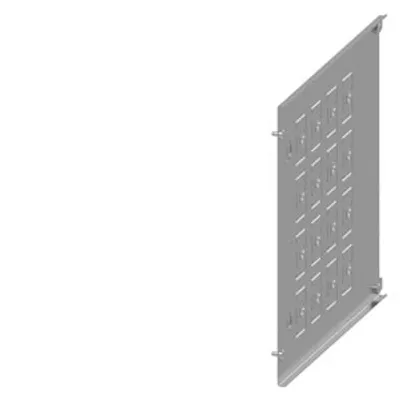

8PQ5000-2BA37	400 mm	2 mm	400 mm	1.5 mm	1.596 kg

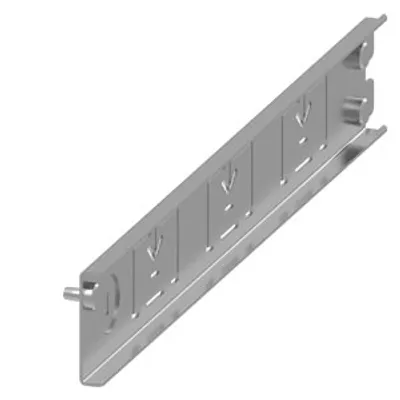

8PQ5000-2BA27	100 mm	2 mm	400 mm	1.5 mm	284 g

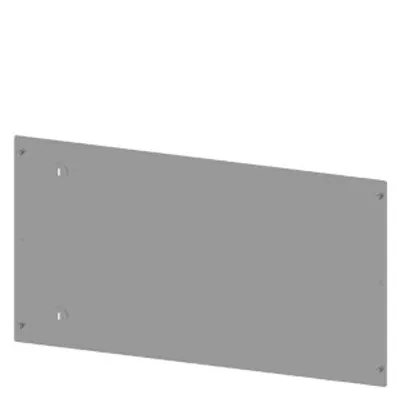

8PQ5000-4BA43	300 mm	600 mm	2 mm	600 mm	2.1 kg

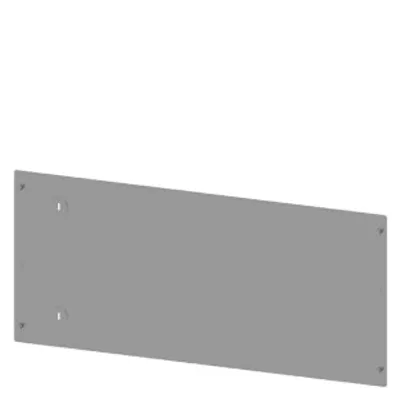

8PQ5000-4BA42	250 mm	600 mm	2 mm	600 mm	1.763 kg
8PQ5000-4BA41	200 mm	600 mm	2 mm	600 mm	1.308 kg
8PQ5000-4BA40	150 mm	600 mm	2 mm	600 mm	968 g
8PQ5000-4BA45	400 mm	600 mm	2 mm	600 mm	2.76 kg

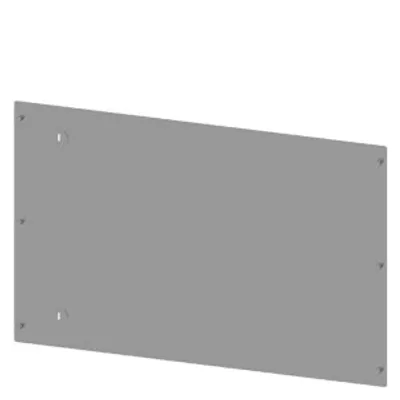

8PQ5000-4BA44	350 mm	600 mm	2 mm	600 mm	2.5 kg

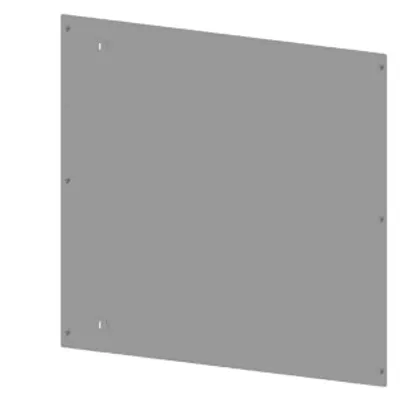

8PQ5000-4BA47	550 mm	600 mm	2 mm	600 mm	3.86 kg

product designation	separation
design of the surface	zinc plated
design	assembly kit
color	miscellaneous
product component — cable entry	No
product component — lock	No
shape of inner subdivisions — shape 2a	No
shape of inner subdivisions — shape 2b	No
