Mounting plates - modular Parts

Siemens

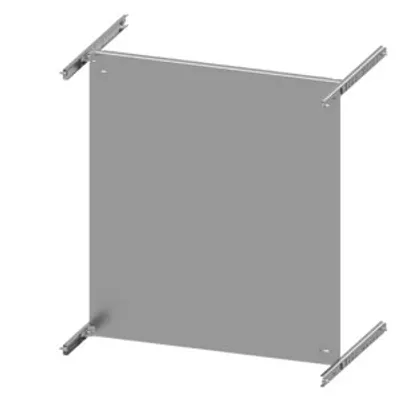

Mounting plate H: 600 mm W: 600 mm

Siemens

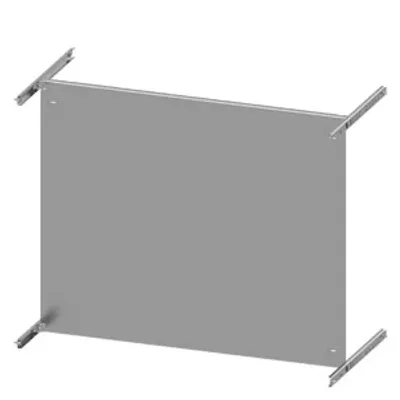

Mounting plate H: 600 mm W: 800 mm

Siemens

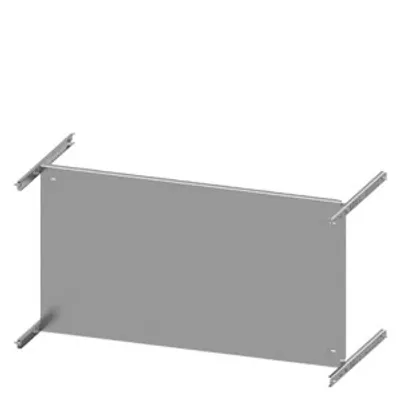

Mounting plate H: 400 mm W: 800 mm

Siemens

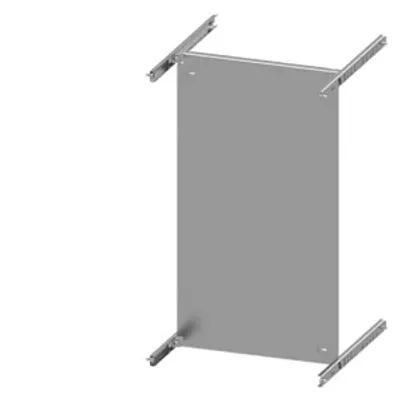

Mounting plate H: 800 mm W: 400 mm

Siemens

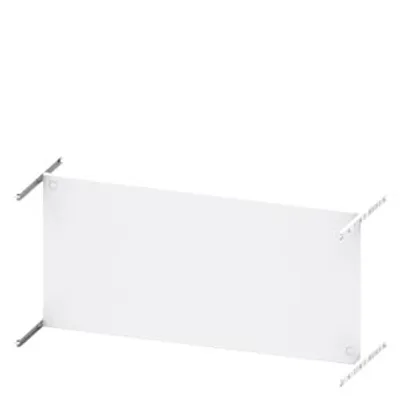

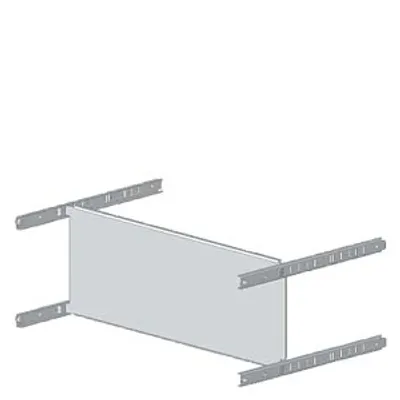

Mounting plate H: 450 mm W: 1000 mm

Siemens

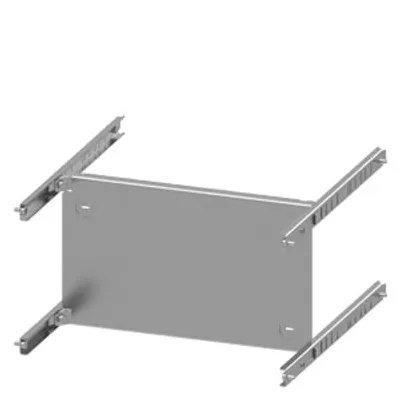

Mounting plate H: 200 mm W: 400 mm

Siemens

Mounting plate H: 600 mm W: 400 mm

Siemens

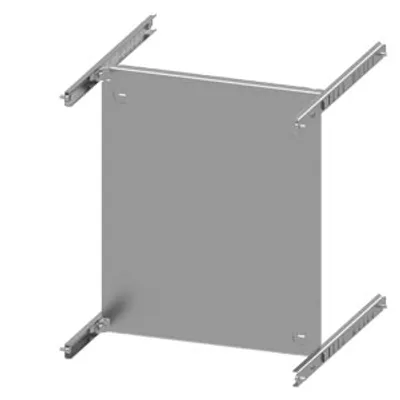

Mounting plate H: 400 mm W: 400 mm

Compare Mounting plates - modular

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	height	width	Net Weight
8PQ3000-1BA65	600 mm	600 mm	6.154 kg
8PQ3000-1BA67	600 mm	800 mm	8.228 kg
8PQ3000-1BA63	400 mm	800 mm	5.726 kg
8PQ3000-2BA23	800 mm	400 mm	5.42 kg
8PQ3000-1BA73	450 mm	1 000 mm	7.71 kg
8PQ3000-2BA17	200 mm	400 mm	1.949 kg
8PQ3000-2BA21	600 mm	400 mm	4.053 kg
8PQ3000-2BA18	400 mm	400 mm	3.019 kg

product designation	mounting panel
design of the product	Modular
surface processing	Galvanized
product feature perforated	No
depth	400 mm
material thickness of the plate	2 mm
material	sheet-steel
