Corner section Parts

Siemens

Bases with cover for corner section, H: 200 mm D: 400 mm

Siemens

Floor plate corner section main busbar: top IP55, D: 400 mm

Siemens

IPX1 roof add-on plate corner section D: 400 mm

Siemens

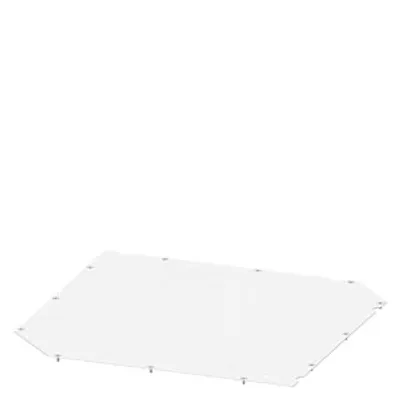

Floor plate corner section main busbar: top IP55, D: 600 mm

Siemens

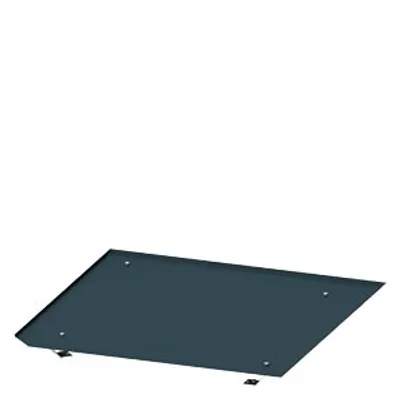

IPX1 roof add-on plate corner section D: 600 mm

Siemens

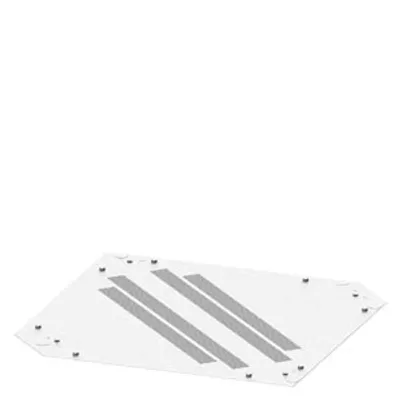

Roof plate corner section IP40, D: 600 mm

Siemens

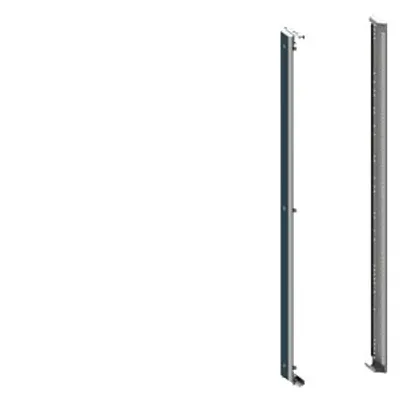

Frame conversion kit corner section

Siemens

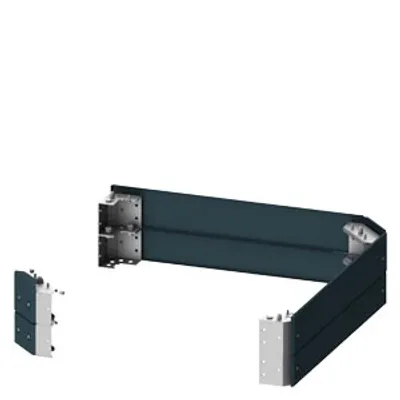

Bases with cover for corner section, H: 200 mm D: 800 mm

Siemens

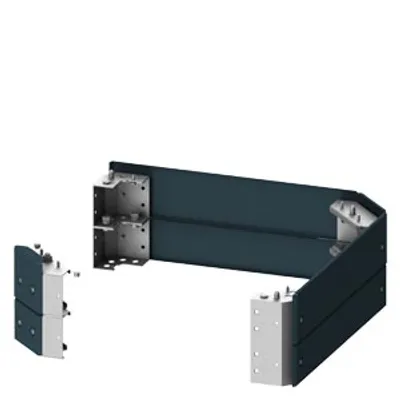

Bases with cover for corner section, H: 200 mm D: 600 mm

Siemens

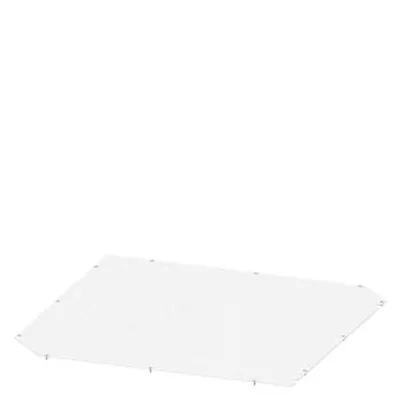

Floor plate corner section main busbar: top IP55, D: 800 mm

Siemens

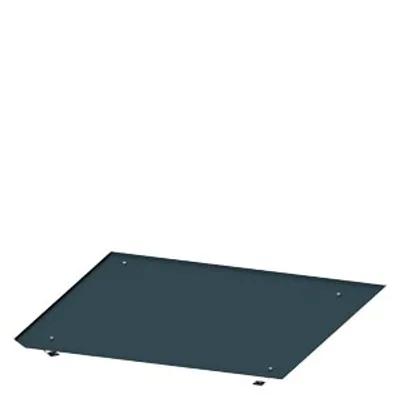

IPX1 roof add-on plate corner section D: 800 mm

Siemens

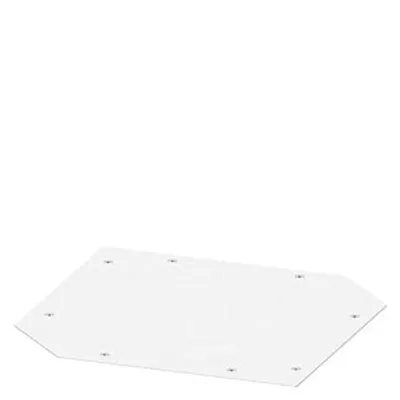

Roof plate corner section IP55, D: 400 mm

Siemens

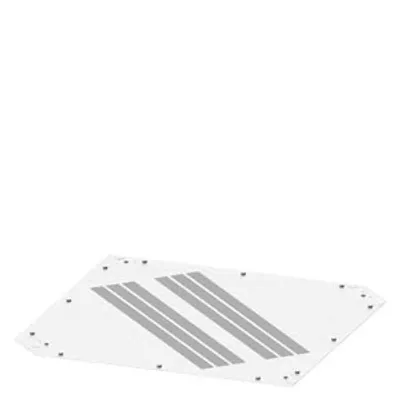

Roof plate corner section IP40, D: 800 mm

Siemens

Roof plate corner section IP55, D: 800 mm

Compare Corner section

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	product designation	height	width	depth	Net Weight
8PQ1024-4BA01	corner section base	200 mm	400 mm	400 mm	8.313 kg
8PQ2304-4BA12	bottom plate	1.5 mm	400 mm	400 mm	2.371 kg
8PQ2304-4BA11	top plate attachment	62 mm	400 mm	400 mm	3.44 kg
8PQ2306-6BA12	bottom plate	1.5 mm	600 mm	600 mm	4.73 kg
8PQ2306-6BA11	top plate attachment	62 mm	600 mm	600 mm	6 kg
8PQ2306-6BA10	top plate	1.5 mm	600 mm	600 mm	5.98 kg
8PQ1200-0BA03	—	2 000 mm	—	—	15.4 kg
8PQ1028-8BA01	corner section base	200 mm	800 mm	800 mm	12.99 kg
8PQ1026-6BA01	corner section base	200 mm	600 mm	600 mm	9.918 kg
8PQ2308-8BA08	bottom plate	1.5 mm	800 mm	800 mm	8.3 kg
8PQ2308-8BA07	top plate attachment	62 mm	800 mm	800 mm	9.24 kg
8PQ2304-4BA08	top plate	1.5 mm	400 mm	400 mm	2.66 kg
8PQ2308-8BA06	top plate	1.5 mm	800 mm	800 mm	9.05 kg
8PQ2308-8BA05	top plate	1.5 mm	800 mm	800 mm	9.5 kg
