Actuators and indicators, 22 mm, round, plastic, black Parts
Compare Actuators and indicators, 22 mm, round, plastic, black
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the actuating element | color of the actuating element | outer diameter of the actuating element | Net Weight | installation depth |
|---|---|---|---|---|---|

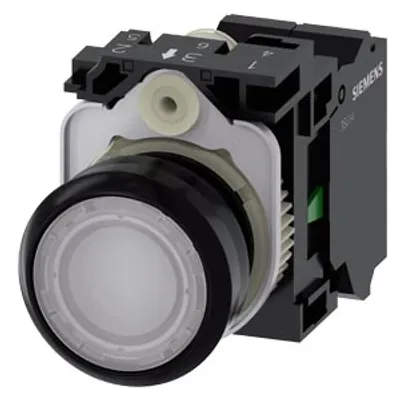

| 3SU1102-0AB60-3BA0-Z Y11 | Button, flat | white | 29.45 mm | 50.5 g | 49.7 mm |
| 3SU1102-0AB60-3BA0-Z Y10 | Button, flat | white | 29.45 mm | 50.5 g | 49.7 mm |
| 3SU1102-0AB60-3BA0-Z X90 | Button, flat | white | 29.45 mm | 50.5 g | 49.7 mm |
| 3SU1102-0AB60-3BA0 | Button, flat | white | 29.45 mm | 50.5 g | 49.7 mm |
| 3SU1102-0AB60-1FA0-Z Y19 | Button, flat | white | 29.45 mm | 60.5 g | 71.7 mm |
| 3SU1102-0AB60-1FA0-Z Y15 | Button, flat | white | 29.45 mm | 60.5 g | 71.7 mm |
| 3SU1102-0AB60-1FA0-Z Y13 | Button, flat | white | 29.45 mm | 60.5 g | 71.7 mm |
| 3SU1002-2BN40-0AA0-Z Y19 | Selector, short | green | 32.3 mm | 22 g | 25.4 mm |
| 3SU1002-2BN40-0AA0-Z Y15 | Selector, short | green | 32.3 mm | 22 g | 25.4 mm |
| 3SU1002-2BN40-0AA0-Z Y12 | Selector, short | green | 32.3 mm | 22 g | 25.4 mm |
| 3SU1002-2BN40-0AA0-Z Y11 | Selector, short | green | 32.3 mm | 22 g | 25.4 mm |
| 3SU1002-2BN40-0AA0-Z Y10 | Selector, short | green | 32.3 mm | 22 g | 25.4 mm |
| 3SU1002-2BN40-0AA0-Z X90 | Selector, short | green | 32.3 mm | 22 g | 25.4 mm |
| 3SU1002-2BN40-0AA0 | Selector, short | green | 32.3 mm | 22 g | 25.4 mm |
| 3SU1002-2BP60-0AA0 | Selector, short | white | 32.3 mm | 21 g | 25.4 mm |
| 3SU1002-2BP50-0AA0-Z Y19 | Selector, short | blue | 32.3 mm | 21 g | 25.4 mm |
| 3SU1002-2BP50-0AA0-Z Y15 | Selector, short | blue | 32.3 mm | 21 g | 25.4 mm |
| 3SU1002-2BP50-0AA0-Z Y12 | Selector, short | blue | 32.3 mm | 21 g | 25.4 mm |
| 3SU1002-2BP50-0AA0-Z Y11 | Selector, short | blue | 32.3 mm | 21 g | 25.4 mm |
| 3SU1002-2BP50-0AA0-Z Y10 | Selector, short | blue | 32.3 mm | 21 g | 25.4 mm |
| 3SU1002-2BP50-0AA0-Z X90 | Selector, short | blue | 32.3 mm | 21 g | 25.4 mm |
| 3SU1000-1HB50-0AA0-Z Y19 | positive latching | blue | 40 mm | 43 g | 26.3 mm |
| 3SU1000-1HB50-0AA0-Z Y15 | positive latching | blue | 40 mm | 43 g | 26.3 mm |
| 3SU1000-1HB50-0AA0-Z Y13 | positive latching | blue | 40 mm | 43 g | 26.3 mm |
Common to all listed parts
| material of the actuating element | plastic |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
