Actuators and indicators, 22 mm, round, plastic, black Parts
Compare Actuators and indicators, 22 mm, round, plastic, black
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | principle of operation of the actuating element | color of the actuating element | outer diameter of the actuating element | Net Weight | height |
|---|---|---|---|---|---|
| 3SU1000-1BA20-0AA0-Z Y13 | latching | red | 40 mm | 27 g | 40 mm |
| 3SU1000-1BA20-0AA0-Z Y12 | latching | red | 40 mm | 27 g | 40 mm |
| 3SU1000-1BA20-0AA0-Z Y11 | latching | red | 40 mm | 27 g | 40 mm |
| 3SU1000-1BA20-0AA0-Z Y10 | latching | red | 40 mm | 27 g | 40 mm |
| 3SU1000-1BA20-0AA0-Z X90 | latching | red | 40 mm | 27 g | 40 mm |
| 3SU1001-0AA50-0AA0-Z Y10 | latching | blue | 29.5 mm | 0.014 kg | 29.5 mm |

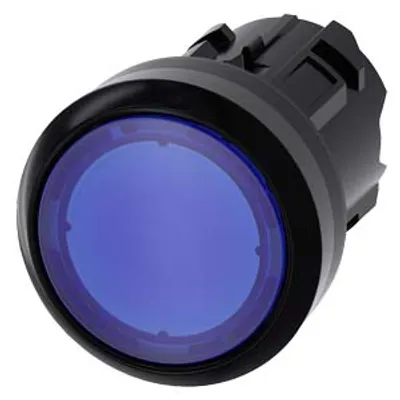

| 3SU1001-0AA50-0AA0-Z X90 | latching | blue | 29.5 mm | 0.014 kg | 29.5 mm |
| 3SU1001-0AA50-0AA0 | latching | blue | 29.5 mm | 0.014 kg | 29.5 mm |
| 3SU1001-0AA40-0AA0-Z Y19 | latching | green | 29.5 mm | 0.013 kg | 29.5 mm |
| 3SU1001-0AA40-0AA0-Z Y15 | latching | green | 29.5 mm | 0.013 kg | 29.5 mm |
| 3SU1001-0AA40-0AA0-Z Y13 | latching | green | 29.5 mm | 0.013 kg | 29.5 mm |
| 3SU1001-0AA40-0AA0-Z Y12 | latching | green | 29.5 mm | 0.013 kg | 29.5 mm |
| 3SU1002-2BL20-0AA0-Z Y12 | latching, 2x45° (10:30 h/12 h/13:30 h) | red | 32.3 mm | 21 g | 32.3 mm |
| 3SU1002-2BL20-0AA0-Z Y11 | latching, 2x45° (10:30 h/12 h/13:30 h) | red | 32.3 mm | 21 g | 32.3 mm |
| 3SU1002-2BL20-0AA0-Z Y10 | latching, 2x45° (10:30 h/12 h/13:30 h) | red | 32.3 mm | 21 g | 32.3 mm |
| 3SU1002-2BL20-0AA0-Z X90 | latching, 2x45° (10:30 h/12 h/13:30 h) | red | 32.3 mm | 21 g | 32.3 mm |
| 3SU1002-2BL20-0AA0 | latching, 2x45° (10:30 h/12 h/13:30 h) | red | 32.3 mm | 21 g | 32.3 mm |
| 3SU1002-2BL10-0AA0-Z Y19 | latching, 2x45° (10:30 h/12 h/13:30 h) | black | 32.3 mm | 21 g | 32.3 mm |
| 3SU1002-2BL10-0AA0-Z Y15 | latching, 2x45° (10:30 h/12 h/13:30 h) | black | 32.3 mm | 21 g | 32.3 mm |
| 3SU1001-0AD50-0AA0-Z X90 | Fixed key | blue | 29.5 mm | 0.018 kg | 29.5 mm |
| 3SU1001-0AD50-0AA0 | Fixed key | blue | 29.5 mm | 0.018 kg | 29.5 mm |
| 3SU1000-0AB80-0AA0-Z Y12 | momentary contact type | gray | 29.5 mm | 15 g | 29.5 mm |
| 3SU1000-0AB70-0AA0 | momentary contact type | clear | 29.5 mm | 0.015 kg | 29.5 mm |
| 3SU1000-0AB60-0AC0-Z Y19 | momentary contact type | white | 29.5 mm | 18 g | 29.5 mm |
Common to all listed parts
| number of command points | 1 |
| material of the actuating element | plastic |
| product component front ring | Yes |
| material of the front ring | plastic |
| color of the front ring | black |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| reference code according to IEC 81346-2 | S |
