Roof plates Parts
Compare Roof plates
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the product | width | depth | ventilation cross section outlet can be used | Net Weight |
|---|---|---|---|---|---|

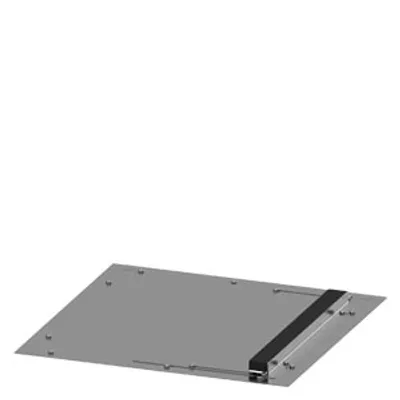

| 8PQ2306-6BA03 | With cable entry | 600 mm | 600 mm | 0 cm² | 4.86 kg |

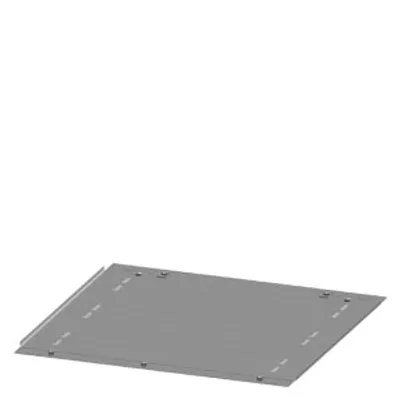

| 8PQ2306-6BA02 | IP40 ventilated | 600 mm | 600 mm | 370 cm² | 4.49 kg |

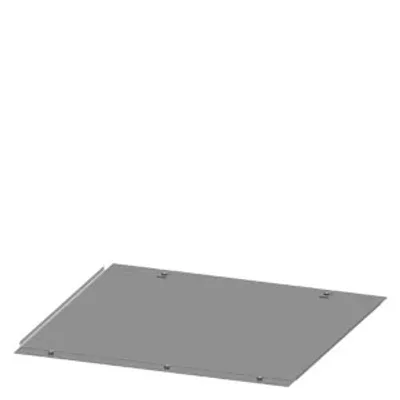

| 8PQ2306-6BA01 | IP55 unventilated | 600 mm | 600 mm | 0 cm² | 4.534 kg |

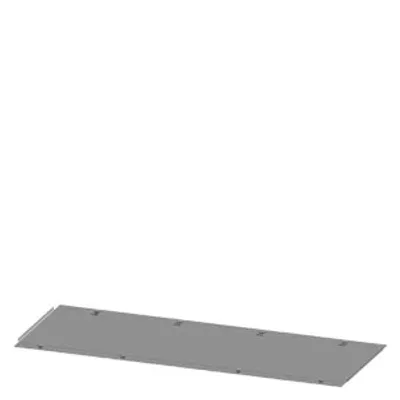

| 8PQ2301-4BA01 | IP55 unventilated | 1 000 mm | 400 mm | 0 cm² | 4.98 kg |

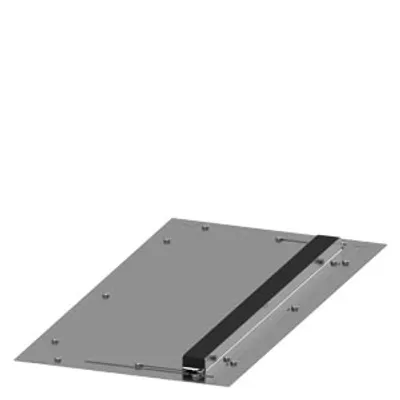

| 8PQ2304-8BA03 | With cable entry | 400 mm | 800 mm | 0 cm² | 4.28 kg |

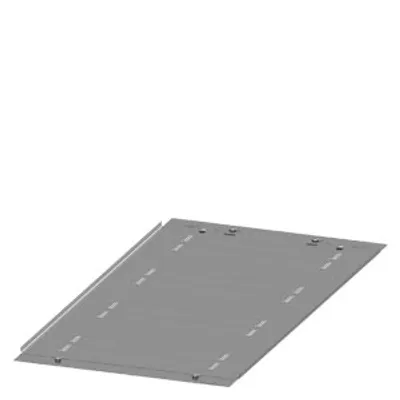

| 8PQ2304-8BA02 | IP40 ventilated | 400 mm | 800 mm | 288 cm² | 3.95 kg |

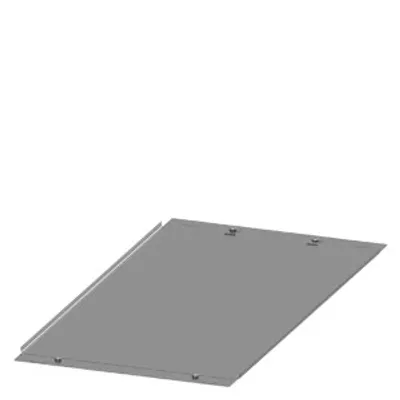

| 8PQ2304-8BA01 | IP55 unventilated | 400 mm | 800 mm | 0 cm² | 4.155 kg |

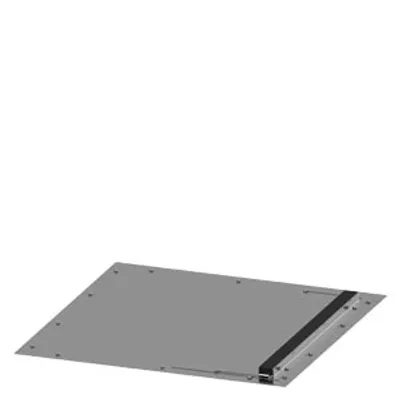

| 8PQ2308-8BA03 | With cable entry | 800 mm | 800 mm | 0 cm² | 8.4 kg |

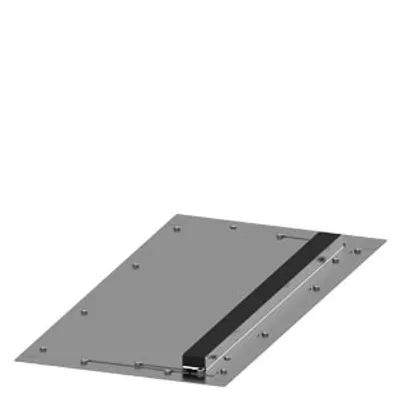

| 8PQ2308-4BA03 | With cable entry | 800 mm | 400 mm | 0 cm² | 4.34 kg |

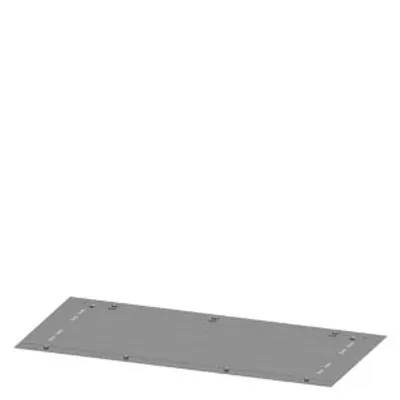

| 8PQ2308-4BA02 | IP40 ventilated | 800 mm | 400 mm | 350 cm² | 3.874 kg |

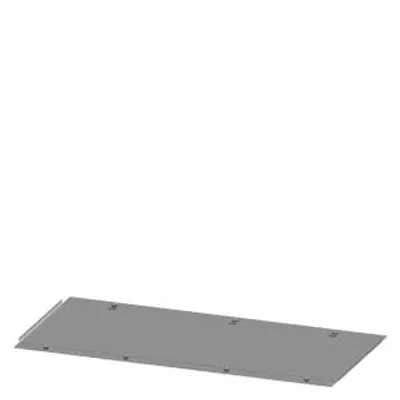

| 8PQ2308-4BA01 | IP55 unventilated | 800 mm | 400 mm | 0 cm² | 3.906 kg |

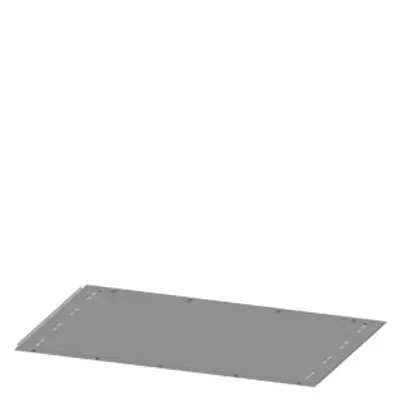

| 8PQ2302-8BA02 | IP40 ventilated | 1 200 mm | 800 mm | 1 111 cm² | 11.75 kg |
| 8PQ2302-8BA01 | IP55 unventilated | 1 200 mm | 800 mm | 0 cm² | 11.7 kg |
Common to all listed parts
| product designation | top plate |
| design of the surface | zinc plated |
| design of the product EMC version | No |
| suitability for use for outside use | No |
| color | miscellaneous |
| material | sheet-steel |
