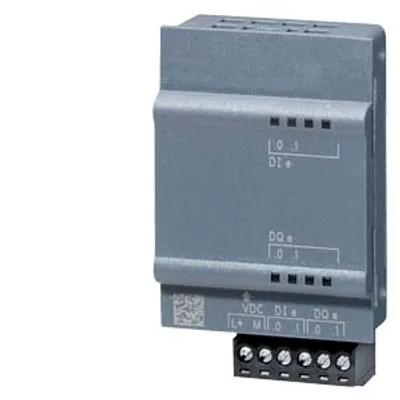

SIPLUS SB 1223 digital input/output modules Parts
Compare SIPLUS SB 1223 digital input/output modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | based on | Input voltage — for signal "0" | Input voltage — for signal "1" | Input current — for signal "0", max. (permissible quiescent current) | Output voltage — for signal "0", max. |
|---|---|---|---|---|---|
| 6AG1223-3BD30-5XB0 | 6ES7223-3BD30-0XB0 | (L+ minus 5.0 V DC) ... L+ | 0 V ... (L+ minus 10 V DC) | 1.4 mA | 1 V |
| 6AG1223-3AD30-5XB0 | 6ES7223-3AD30-0XB0 | (L+ minus 1.0 V DC) ... L+ | 0 V ... (L+ minus 2.0 V DC) | 2.2 mA | 0.2 V |
| 6AG1223-0BD30-5XB0 | 6ES7223-0BD30-0XB0 | 0 to 5 V | +15 to +30 V | 1 mA | 0.1 V; with 10 kOhm load |
| 6AG1223-0BD30-4XB0 | 6ES7223-0BD30-0XB0 | 0 to 5 V | +15 to +30 V | 1 mA | 0.1 V; with 10 kOhm load |
Common to all listed parts
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | see entry ID: 109746275 |
| Input delay (for rated value of input voltage) — for interrupt inputs — Parameterizable | Yes |
| Input delay (for rated value of input voltage) — for technological functions — Parameterizable | Yes |
| Number of digital outputs | 2; MOSFET, solid-state (current-sinking/current-sourcing) |
| Short-circuit protection | No |
| Diagnostics indication LED — for status of the inputs | Yes |
| Diagnostics indication LED — for status of the outputs | Yes |
| Free fall — Fall height, max. | 0.3 m; five times, in product package |
