Quick-assembly kits for unequipped distribution boards Parts
Compare Quick-assembly kits for unequipped distribution boards
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the product | product component — grounding bus | number of DIN mounting bars | height | Net Weight |
|---|---|---|---|---|---|

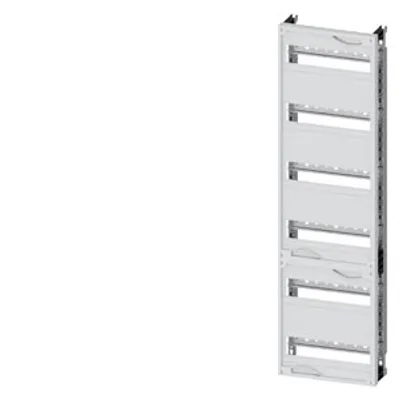

| 8GK4051-6KK11 | tier spacing 150 mm, without N/PE busbar | No | 6 | 900 mm | 2.75 kg |

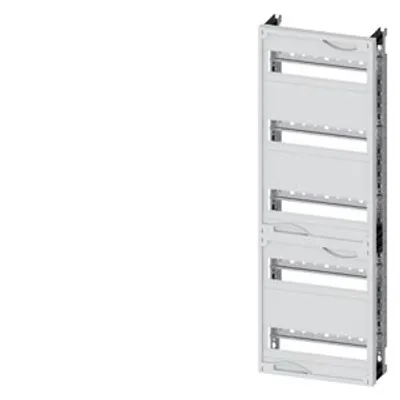

| 8GK4051-5KK11 | tier spacing 150 mm, without N/PE busbar | No | 5 | 750 mm | 2.489 kg |

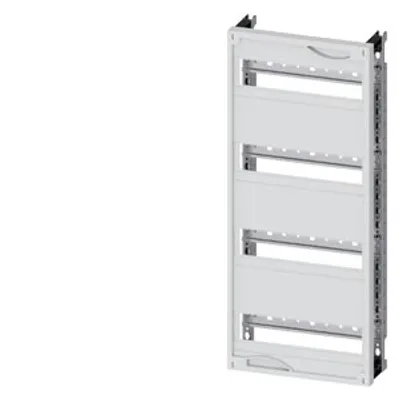

| 8GK4051-4KK11 | tier spacing 150 mm, without N/PE busbar | No | 4 | 600 mm | 2.808 kg |

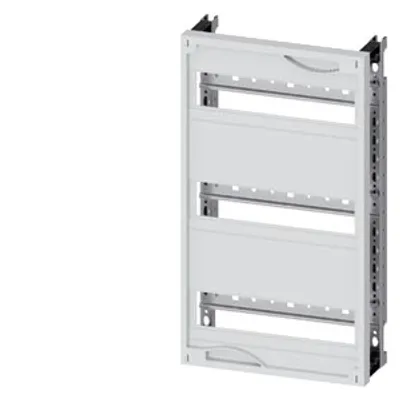

| 8GK4051-3KK11 | tier spacing 150 mm, without N/PE busbar | No | 3 | 450 mm | 1.975 kg |

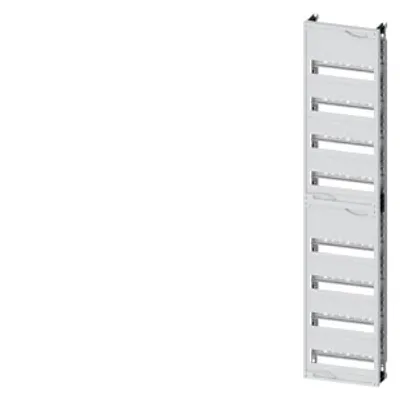

| 8GK4001-6KK22 | tier spacing 125 mm, 1 x N/PE busbar | Yes | 12 | 900 mm | 5 800 g |

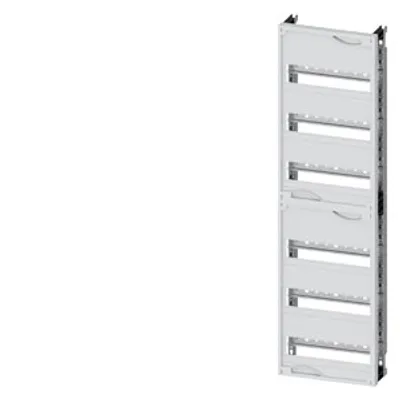

| 8GK4001-6KK11 | tier spacing 125 mm, 1 x N/PE busbar | Yes | 6 | 900 mm | 3.169 kg |

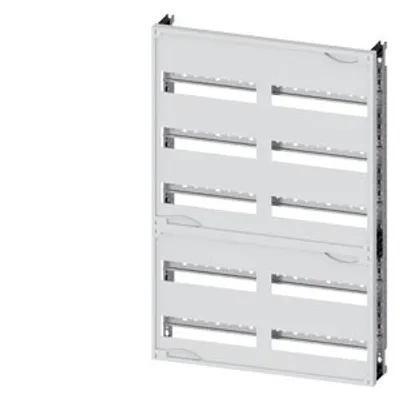

| 8GK4001-5KK22 | tier spacing 125 mm, 1 x N/PE busbar | Yes | 10 | 750 mm | 5.105 kg |
Common to all listed parts
| product designation | Quick assembly kit modular installation devices |
| cover plate version | with cutout |
| product component — plastic cover plate | Yes |
| product component — mounting plate | No |
| depth | 210 mm |
| number of modular width units per DIN mounting bar | 12 |
