SENTRON 8WH3 Insulation Displacement Terminals Parts
Compare SENTRON 8WH3 Insulation Displacement Terminals
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the product | color | depth | length | Net Weight |
|---|---|---|---|---|---|
| 8WH3100-2DF00 | hybrid through-type terminal | grey | 41.3 mm | 63 mm | 11 g |

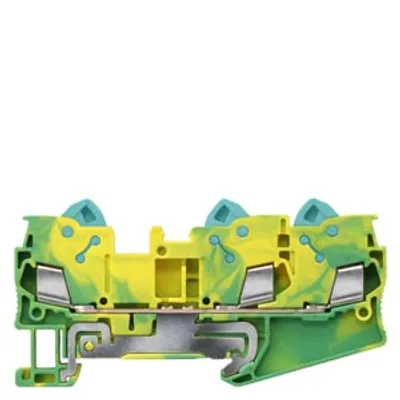

| 8WH3003-0CF07 | PE through-type terminal | green-yellow | 37.75 mm | 82.5 mm | 16 g |

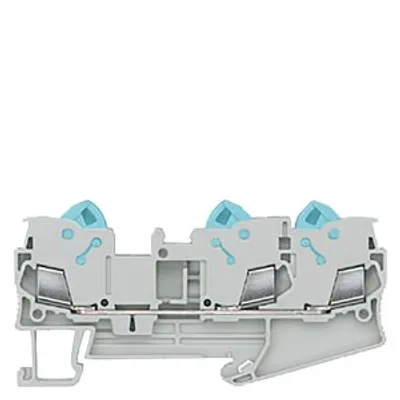

| 8WH3003-0AF00 | through-type terminal | grey | 37.8 mm | 83 mm | 13 g |
Common to all listed parts
| product designation | Terminal blocks |
| combustibility class according to UL 94 | V0 |
| product component required end cover plate | Yes |
| number of terminal levels | 1 |
| connectable conductor cross-section solid — minimum | 0.5 mm² |
| connectable conductor cross-section solid — maximum | 2.5 mm² |
| connectable conductor cross-section finely stranded — without core end processing minimum | 0.5 mm² |
| connectable conductor cross-section finely stranded — without core end processing maximum | 2.5 mm² |
