Wago

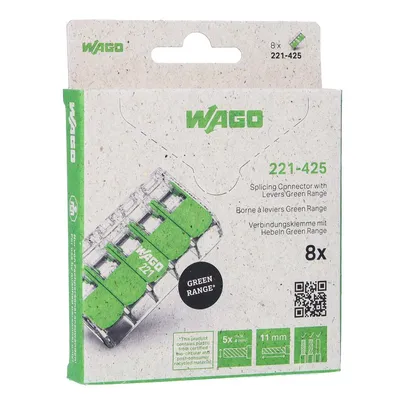

221-425/995-008Splicing connector with levers; for all conductor types; max. 4 mm²; 5-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent
221 - Splicing connector with lever Parts
Wago
221-2431Inline splicing connector with levers; for all conductor types; max. 4 mm²; 2-conductor; transparent housing; Transparent cover; Surrounding air temperature: max 85°C (T85); transparent
Wago
221-485Splicing connector with levers; for all conductor types; for Ex e applications; max. 4 mm²; 5-conductor; transparent housing; Operating temperature (max.): 105 °C; 4,00 mm²; transparent
Wago
221-423/995-012Splicing connector with levers; for all conductor types; max. 4 mm²; 3-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent
Wago

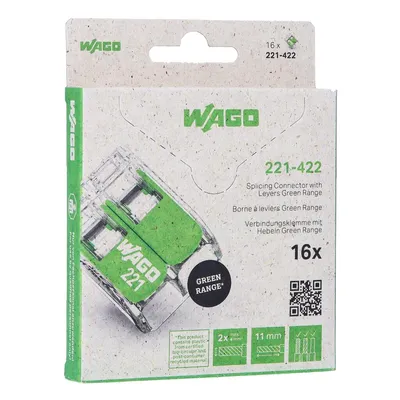

221-422/995-016Splicing connector with levers; for all conductor types; max. 4 mm²; 2-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent
Wago
221-622Splicing connector with levers; for all conductor types; max. 6 mm²; 2-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 6,00 mm²; transparent
Wago
221-623Splicing connector with levers; for all conductor types; max. 6 mm²; 3-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 6,00 mm²; transparent
Wago
221-682Splicing connector with levers; for all conductor types; for Ex e applications; max. 6 mm²; 2-conductor; transparent housing; Operating temperature (max.): 105 °C; 6,00 mm²; transparent
Wago
221-430Splicing connector with levers Green Range; for all conductor types; max. 4 mm²; 10-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent
Wago

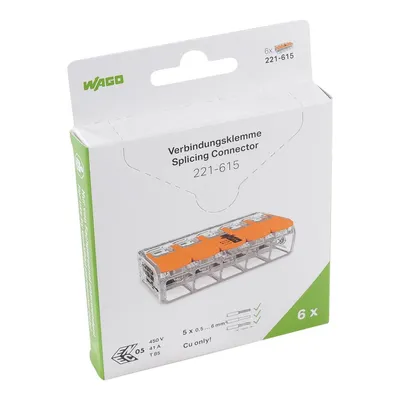

221-615/995-006Splicing connector with levers; for all conductor types; max. 6 mm²; 5-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 6,00 mm²; transparent
Wago
221-483Splicing connector with levers; for all conductor types; for Ex e applications; max. 4 mm²; 3-conductor; transparent housing; Operating temperature (max.): 105 °C; 4,00 mm²; transparent
Wago
221-685Splicing connector with levers; for all conductor types; for Ex e applications; max. 6 mm²; 5-conductor; transparent housing; Operating temperature (max.): 105 °C; 6,00 mm²; transparent
Wago
221-683Splicing connector with levers; for all conductor types; for Ex e applications; max. 6 mm²; 3-conductor; transparent housing; Operating temperature (max.): 105 °C; 6,00 mm²; transparent
Wago

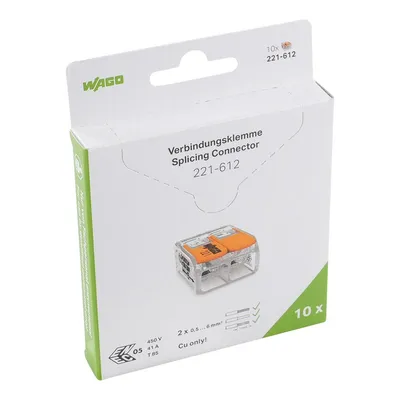

221-612/995-010Splicing connector with levers; for all conductor types; max. 6 mm²; 2-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 6,00 mm²; transparent
Wago

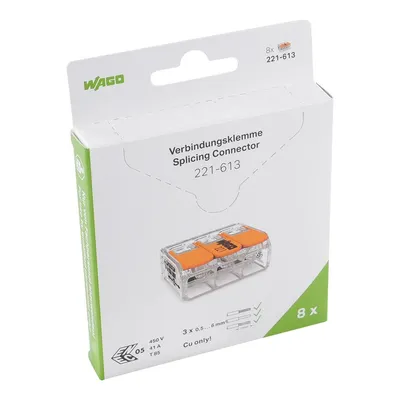

221-613/995-008Splicing connector with levers; for all conductor types; max. 6 mm²; 3-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 6,00 mm²; transparent
Wago
221-482Splicing connector with levers; for all conductor types; for Ex e applications; max. 4 mm²; 2-conductor; transparent housing; Operating temperature (max.): 105 °C; 4,00 mm²; transparent
Wago

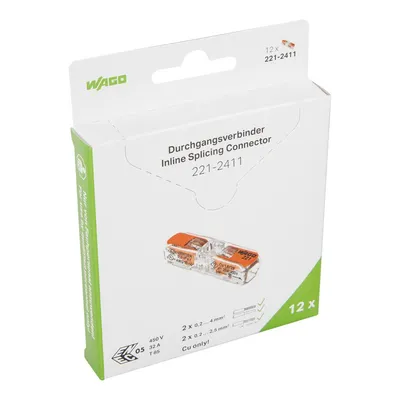

221-2411/995-012Inline splicing connector with levers; for all conductor types; max. 4 mm²; 2-conductor; transparent housing; Transparent cover; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transpa
Wago

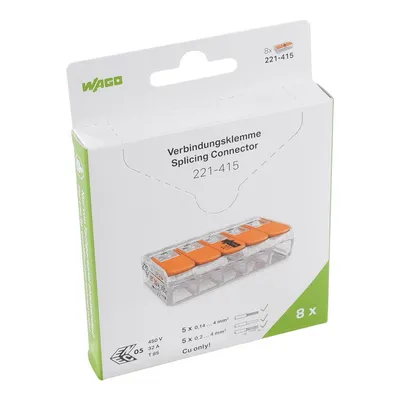

221-415/995-008Splicing connector with levers; for all conductor types; max. 4 mm²; 5-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent
Wago
221-425Splicing connector with levers; for all conductor types; max. 4 mm²; 5-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent
Wago

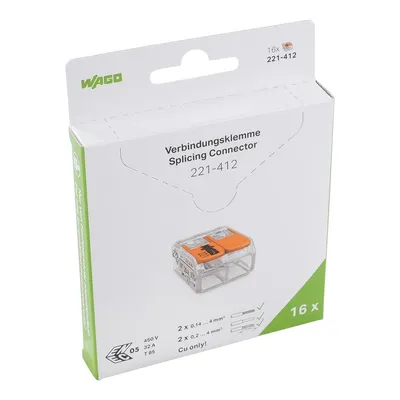

221-412/995-016Splicing connector with levers; for all conductor types; max. 4 mm²; 2-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent
Wago

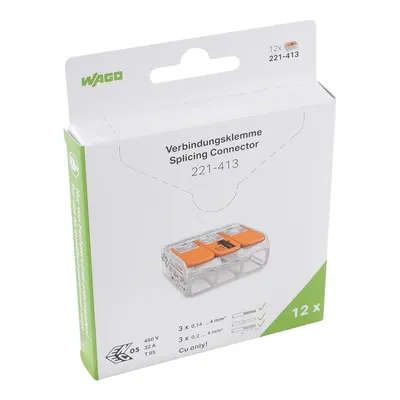

221-413/995-012Splicing connector with levers; for all conductor types; max. 4 mm²; 3-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent
Wago
221-2401Inline splicing connector with levers; for all conductor types; max. 4 mm²; 2-conductor; transparent housing; white cover; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent
Wago
221-422Splicing connector with levers; for all conductor types; max. 4 mm²; 2-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent
Wago

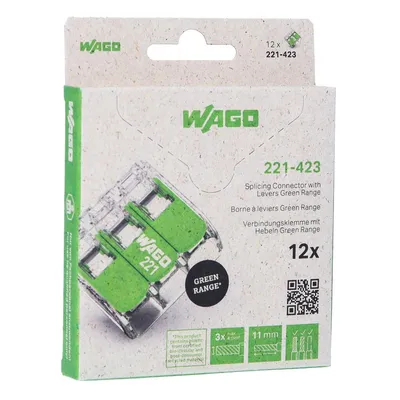

221-423Splicing connector with levers; for all conductor types; max. 4 mm²; 3-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent
Compare 221 - Splicing connector with lever
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Width | Fire load | Weight | PU (SPU) | GTIN |
|---|---|---|---|---|---|
| 221-425/995-008 | 30 mm / 1.181 inches | 0.082 MJ | 4.1 g | 144 (8) pcs | 4066966355055 |
| 221-2431 | 8.1 mm / 0.319 inches | 0.066 MJ | 2.3 g | 600 (60) pcs | 4066966613261 |
| 221-485 | 30 mm / 1.181 inches | 0.089 MJ | 4.4 g | 250 (25) pcs | 4055143837330 |
| 221-423/995-012 | 18.8 mm / 0.74 inches | 0.057 MJ | 2.5 g | 216 (12) pcs | 4066966355161 |
| 221-422/995-016 | 13.2 mm / 0.52 inches | 0.042 MJ | 1.8 g | 288 (16) pcs | 4066966354898 |
| 221-622 | 16 mm / 0.63 inches | 0.077 MJ | 3 g | 500 (50) pcs | 4066966613230 |
| 221-623 | 22.9 mm / 0.902 inches | 0.105 MJ | 4.4 g | 300 (30) pcs | 4066966613315 |
| 221-682 | 16 mm / 0.63 inches | 0.066 MJ | 3 g | 500 (50) pcs | 4055143860390 |
| 221-430 | 29.8 mm / 1.173 inches | 0.17 MJ | 7.2 g | 150 (15) pcs | 4066966705416 |
| 221-615/995-006 | 36.7 mm / 1.445 inches | 0.118 MJ | 7.1 g | 108 (6) pcs | 4066966001778 |
| 221-483 | 18.8 mm / 0.74 inches | 0.056 MJ | 2.7 g | 500 (50) pcs | 4066966680782 |
| 221-685 | 36.7 mm / 1.445 inches | 0.143 MJ | 7 g | 150 (15) pcs | 4055143860581 |
| 221-683 | 22.9 mm / 0.902 inches | 0.097 MJ | 4.3 g | 300 (30) pcs | 4055143860574 |
| 221-612/995-010 | 16 mm / 0.63 inches | 0.056 MJ | 3 g | 180 (10) pcs | 4066966001921 |
| 221-613/995-008 | 22.9 mm / 0.902 inches | 0.082 MJ | 4.3 g | 144 (8) pcs | 4066966001693 |
| 221-482 | 13.2 mm / 0.52 inches | 0.035 MJ | 1.7 g | 1000 (100) pcs | 4055143837422 |
| 221-2411/995-012 | 8.1 mm / 0.319 inches | 0.05 MJ | 2.3 g | 216 (12) pcs | 4066966222210 |
| 221-415/995-008 | 30 mm / 1.181 inches | 0.089 MJ | 4 g | 144 (8) pcs | 4066966001679 |
| 221-425 | 30 mm / 1.181 inches | 0.082 MJ | 4.1 g | 250 (25) pcs | 4066966345285 |
| 221-412/995-016 | 13.2 mm / 0.52 inches | 0.049 MJ | 1.7 g | 288 (16) pcs | 4066966001761 |
| 221-413/995-012 | 18.8 mm / 0.74 inches | 0.064 MJ | 2.5 g | 216 (12) pcs | 4066966001907 |
| 221-2401 | 8.1 mm / 0.319 inches | 0.05 MJ | 2.4 g | 600 (60) pcs | 4066966120271 |
| 221-422 | 13.2 mm / 0.52 inches | 0.042 MJ | 1.8 g | 1000 (100) pcs | 4066966345384 |
| 221-423 | 18.8 mm / 0.74 inches | 0.057 MJ | 2.5 g | 500 (50) pcs | 4066966345438 |
Common to all listed parts
| Connection technology | CAGE CLAMP® |
| Actuation type | Lever |
| Connectable conductor materials | Copper |
| Note (material data) | Information on material specifications can be found here |
| Color | transparent |
| Material group | IIIa |
| Insulation material (main housing) | Polycarbonate (PC) |
| Flammability class per UL94 | V2 |
