Home / Electrical Interconnections / Rail-Mount Terminal Blocks

Rail-Mount Terminal Blocks Parts

Showing 4,873–4,896 of 5,182 parts

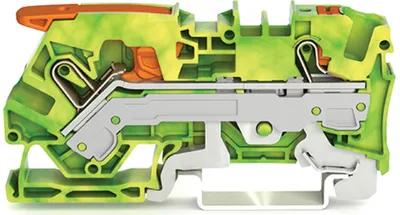

Wago 2106-5207 – 2-conductor ground terminal block; with lever and push-button; 6 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 6,00 mm²; green-yellow
Wago
2106-5207

2-conductor ground terminal block; with lever and push-button; 6 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 6,00 mm²; green-yellow

Wago 2203-7645 – Multilevel installation terminal block; with push-button; 2.5 mm²; L/L/PE; Push-in CAGE CLAMP®; 2,50 mm²; gray
Wago
2203-7645

Multilevel installation terminal block; with push-button; 2.5 mm²; L/L/PE; Push-in CAGE CLAMP®; 2,50 mm²; gray

Wago 2000-5410 – 4-conductor sensor terminal block; with ground connection via push-in type jumper bars; with colored conductor entries; 1 mm²; Push-in CAGE CLAMP®; 1,00 mm²; gray
Wago
2000-5410

4-conductor sensor terminal block; with ground connection via push-in type jumper bars; with colored conductor entries; 1 mm²; Push-in CAGE CLAMP®; 1,00 mm²; gray

Wago 2002-2409 – 4-conductor double deck terminal block; 8-conductor through terminal block; N; without marker carrier; suitable for Ex i applications; internal commoning; conductor entry with violet marking;
Wago
2002-2409

4-conductor double deck terminal block; 8-conductor through terminal block; N; without marker carrier; suitable for Ex i applications; internal commoning; conductor entry with violet marking;

Wago 2004-1203 – 2-conductor through terminal block; 4 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm²; red
Wago
2004-1203

2-conductor through terminal block; 4 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm²; red

Wago 2202-1403 – 4-conductor through terminal block; with push-button; 2.5 mm²; with test port; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAM
Wago
2202-1403

4-conductor through terminal block; with push-button; 2.5 mm²; with test port; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAM

Wago 2002-2209 – Double-deck terminal block; 4-conductor through terminal block; N; without marker carrier; for Ex e II and Ex i applications; internal commoning; conductor entry with violet marking; for DIN
Wago
2002-2209

Double-deck terminal block; 4-conductor through terminal block; N; without marker carrier; for Ex e II and Ex i applications; internal commoning; conductor entry with violet marking; for DIN

Wago 2000-1404 – 4-conductor through terminal block; 1 mm²; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm²; blue
Wago
2000-1404

4-conductor through terminal block; 1 mm²; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm²; blue

Wago 2000-5317/102-000 – 3-conductor actuator supply terminal block; for PNP-(high-side) switching actuators; with ground contact; with colored conductor entries; 1 mm²; Push-in CAGE CLAMP®; 1,00 mm²; gray
Wago
2000-5317/102-000

3-conductor actuator supply terminal block; for PNP-(high-side) switching actuators; with ground contact; with colored conductor entries; 1 mm²; Push-in CAGE CLAMP®; 1,00 mm²; gray

Wago 2116-1201 – 2-conductor through terminal block; with lever and Push-in CAGE CLAMP®; 16 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 16,00 mm²; gra
Wago
2116-1201

2-conductor through terminal block; with lever and Push-in CAGE CLAMP®; 16 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 16,00 mm²; gra

Wago 2006-1631/1000-541 – 2-conductor fuse terminal block; with pivoting fuse holder; for glass cartridge fuse ¼" x 1¼"; with blown fuse indication by LED; 12 - 30 V; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; Push-in
Wago
2006-1631/1000-541

2-conductor fuse terminal block; with pivoting fuse holder; for glass cartridge fuse ¼" x 1¼"; with blown fuse indication by LED; 12 - 30 V; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; Push-in

Wago 2001-1203 – 2-conductor through terminal block; 1.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm²; red
Wago
2001-1203

2-conductor through terminal block; 1.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm²; red

Wago 2002-6404 – 4-conductor through terminal block; 2.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; blue
Wago
2002-6404

4-conductor through terminal block; 2.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; blue

Wago 2004-1411/1000-400 – Component terminal block; 4-conductor; with diode 1N5408; anode, left side; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; Push-in CAGE CLAMP®; gray
Wago
2004-1411/1000-400

Component terminal block; 4-conductor; with diode 1N5408; anode, left side; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; Push-in CAGE CLAMP®; gray

Wago 2004-911/1000-836 – Fuse plug; with pull-tab; for 5 x 20 mm miniature metric fuse; with indicator lamp; 230 V; 6.1 mm wide; gray
Wago
2004-911/1000-836

Fuse plug; with pull-tab; for 5 x 20 mm miniature metric fuse; with indicator lamp; 230 V; 6.1 mm wide; gray

Wago 2002-1672 – 2-conductor disconnect/test terminal block; with test option; orange disconnect link; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; orange
Wago
2002-1672

2-conductor disconnect/test terminal block; with test option; orange disconnect link; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; orange

Wago 2210-1307 – 3-conductor ground terminal block; with push-button; 10 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 10,00 mm²; green-yellow
Wago
2210-1307

3-conductor ground terminal block; with push-button; 10 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 10,00 mm²; green-yellow

Wago 2002-1611/1000-867 – 2-conductor fuse terminal block; with pivoting fuse holder; with end plate; for 5 x 20 mm miniature metric fuse; with blown fuse indication by LED; 120 V; for DIN-rail 35 x 15 and 35 x 7.5; 2
Wago
2002-1611/1000-867

2-conductor fuse terminal block; with pivoting fuse holder; with end plate; for 5 x 20 mm miniature metric fuse; with blown fuse indication by LED; 120 V; for DIN-rail 35 x 15 and 35 x 7.5; 2

Wago 2002-2611/1000-867 – Double-deck fuse terminal block; with pivoting fuse holder; Through/Fuse terminal block; for 5 x 20 mm miniature metric fuse; with blown fuse indication by LED; 120 V; for DIN-rail 35 x 15 an
Wago
2002-2611/1000-867

Double-deck fuse terminal block; with pivoting fuse holder; Through/Fuse terminal block; for 5 x 20 mm miniature metric fuse; with blown fuse indication by LED; 120 V; for DIN-rail 35 x 15 an

Wago 2000-2207 – Double-deck terminal block; 4-conductor ground terminal block; 1 mm²; PE; without marker carrier; internal commoning; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm²; green-y
Wago
2000-2207

Double-deck terminal block; 4-conductor ground terminal block; 1 mm²; PE; without marker carrier; internal commoning; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm²; green-y

Wago 2002-1208 – 2-conductor shield terminal block; 2.5 mm²; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; white
Wago
2002-1208

2-conductor shield terminal block; 2.5 mm²; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; white

Wago 2104-5201 – 2-conductor through terminal block; with lever and push-button; 4 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm²; gray
Wago
2104-5201

2-conductor through terminal block; with lever and push-button; 4 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm²; gray

Wago 2000-1207 – 2-conductor ground terminal block; 1 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm²; green-yellow
Wago
2000-1207

2-conductor ground terminal block; 1 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm²; green-yellow

Wago 2002-6304 – 3-conductor through terminal block; 2.5 mm²; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; blue
Wago
2002-6304

3-conductor through terminal block; 2.5 mm²; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; blue

Compare Rail-Mount Terminal Blocks

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNHeightDepth from upper-edge of DIN-railFire loadWeightGTIN
2106-520775.2 mm / 2.961 inches32.9 mm / 1.295 inches0.348 MJ23.4 g4055143742474
2203-764595.6 mm / 3.764 inches46.6 mm / 1.835 inches0.285 MJ16.6 g4066966121940
2000-541097.3 mm / 3.831 inches52.4 mm / 2.063 inches0.358 MJ17.5 g4055143442244
2002-2409105.1 mm / 4.138 inches52.1 mm / 2.051 inches0.291 MJ16.1 g4050821144830
2004-120352.3 mm / 2.059 inches32.9 mm / 1.295 inches0.135 MJ7 g4045454290641
2202-140369.9 mm / 2.752 inches32.9 mm / 1.295 inches0.188 MJ7.8 g4055143852074
2002-220969.7 mm / 2.744 inches51.7 mm / 2.035 inches0.159 MJ10.7 g4044918691116
2000-140467.9 mm / 2.673 inches32.9 mm / 1.295 inches0.107 MJ5.2 g4045454966959
2000-5317/102-00081.1 mm / 3.193 inches52.4 mm / 2.063 inches0.316 MJ17.4 g4055143408165
2116-120191.5 mm / 3.602 inches36.9 mm / 1.453 inches0.65 MJ32.1 g4055143754422
2006-1631/1000-54196.3 mm / 3.791 inches59 mm / 2.323 inches0.444 MJ25.5 g4045454823986
2001-120348.5 mm / 1.909 inches32.9 mm / 1.295 inches0.087 MJ3.8 g4045454537364
2002-640452.6 mm / 2.071 inches38.9 mm / 1.531 inches0.122 MJ5.8 g4044918964906
2004-1411/1000-40078.7 mm / 3.098 inches32.9 mm / 1.295 inches0.203 MJ11.5 g4050821230793
2004-911/1000-836——0.066 MJ4.3 g4055143191784
2002-167266.1 mm / 2.602 inches32.9 mm / 1.295 inches0.162 MJ7.4 g4055143874557
2210-130789 mm / 3.504 inches36.9 mm / 1.453 inches0.438 MJ37.5 g4055143736138
2002-1611/1000-86766.1 mm / 2.602 inches57.2 mm / 2.252 inches0.282 MJ13.6 g4055143870474
2002-2611/1000-86793 mm / 3.661 inches76.4 mm / 3.008 inches0.476 MJ23 g4055143873413
2000-220769.7 mm / 2.744 inches51.7 mm / 2.035 inches0.147 MJ9.8 g4055143251433
2002-120850.8 mm / 2 inches32.9 mm / 1.295 inches0.106 MJ8 g4055143242028
2104-520170 mm / 2.756 inches32.9 mm / 1.295 inches0.217 MJ10.3 g4055143992619
2000-120750.8 mm / 2 inches32.9 mm / 1.295 inches0.07 MJ5.8 g4045454966829
2002-630452.6 mm / 2.071 inches38.9 mm / 1.531 inches0.122 MJ5.7 g4044918964944

Common to all listed parts

Note (material data)Information on material specifications can be found here
Material groupI
Insulation material (main housing)Polyamide (PA66)
Flammability class per UL94V0
ECCNNO US CLASSIFICATION
