Directional on/off valve Parts

Bosch Rexroth

R901269478

DIRECTIONAL SPOOL VALVE 4WEH16D7X/6EG110N9ETS2DL/B10

Bosch Rexroth

R900755795

DIRECTIONAL SPOOL VALVE 4WEH16D7X/6EG110N9ETK4/B10

Bosch Rexroth

R901026383

DIRECTIONAL SPOOL VALVE 4WEH16D7X/6EG110N9EK4/B10

Bosch Rexroth

R901531048

DIRECTIONAL SPOOL VALVE 4WEH16D1X/6HG24N9K4

Bosch Rexroth

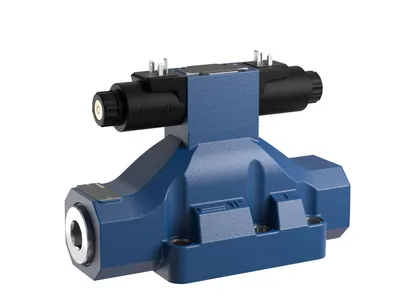

R901531042

DIRECTIONAL SPOOL VALVE 4WEH16D1X/6HG24N9ETK4/B10

Bosch Rexroth

R901531045

DIRECTIONAL SPOOL VALVE 4WEH16D1X/6HG24N9EK4/B10

Bosch Rexroth

R900784085

DIRECTIONAL SPOOL VALVE 4WEH16C7X/6EW230NEK4/B10P4,5

Bosch Rexroth

R901087673

DIRECTIONAL SPOOL VALVE 4WEH16C7X/6EW230N9TK4/B10

Bosch Rexroth

R901255473

DIRECTIONAL SPOOL VALVE 4WEH16C7X/6EW230N9SK4

Bosch Rexroth

R901515865

DIRECTIONAL SPOOL VALVE 4WEH16C7X/6EW230N9S2K4/B10D3

Bosch Rexroth

R901255439

DIRECTIONAL SPOOL VALVE 4WEH16C7X/6EW230N9S2K4

Bosch Rexroth

R900973119

DIRECTIONAL SPOOL VALVE 4WEH16C7X/6EW230N9K4

Bosch Rexroth

R901373379

DIRECTIONAL SPOOL VALVE 4WEH16C7X/6EW230N9ETS2K4/B10V

Bosch Rexroth

R900719967

DIRECTIONAL SPOOL VALVE 4WEH16C7X/6EW230N9ETS2K4/B10

Bosch Rexroth

R901333013

DIRECTIONAL SPOOL VALVE 4WEH16C7X/6EW230N9ETK4/B10V

Bosch Rexroth

R900784038

DIRECTIONAL SPOOL VALVE 4WEH16C7X/6EW230N9ETK4/B10D3

Bosch Rexroth

R900784037

DIRECTIONAL SPOOL VALVE 4WEH16C7X/6EW230N9ETK4/B10

Bosch Rexroth

R900244646

DIRECTIONAL SPOOL VALVE 4WEH16C7X/6EW230N9ETK4/B08

Bosch Rexroth

R900773098

DIRECTIONAL SPOOL VALVE 4WEH16C7X/6EW230N9ESK4/B10P4,5

Bosch Rexroth

R900783800

DIRECTIONAL SPOOL VALVE 4WEH16C7X/6EW230N9EK4/B10

Bosch Rexroth

R901236747

DIRECTIONAL SPOOL VALVE 4WEH16C7X/6EW110NETS2K4/B10P4,5V

Bosch Rexroth

R901016961

DIRECTIONAL SPOOL VALVE 4WEH16C7X/6EW110NETK4/B10

Bosch Rexroth

R901427019

DIRECTIONAL SPOOL VALVE 4WEH16C7X/6EW110NESK4/B10P4,5

Bosch Rexroth

R987245774

DIRECTIONAL SPOOL VALVE 4WEH16C7X/6EW110N9SK4

Compare Directional on/off valve

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product family	Spool symbol	Supply voltage	Electrical connector	Weight [kg]
R901269478	H-4W.H..	Symbol D	110 VDC	Cable gland	10
R900755795	H-4W.H..	Symbol D	110 VDC	Connector, 3-pole (2 + PE)	9.38
R901026383	H-4W.H..	Symbol D	110 VDC	Connector, 3-pole (2 + PE)	9.38
R901531048	WEH, WH...6H	Symbol D	24 VDC	Connector, 3-pole (2 + PE)	0
R901531042	WEH, WH...6H	Symbol D	24 VDC	Connector, 3-pole (2 + PE)	0
R901531045	WEH, WH...6H	Symbol D	24 VDC	Connector, 3-pole (2 + PE)	7.58
R900784085	H-4W.H..	Symbol C	230 VAC	Connector, 3-pole (2 + PE)	9
R901087673	H-4W.H..	Symbol C	230 VAC	Connector, 3-pole (2 + PE)	9.26
R901255473	H-4W.H..	Symbol C	230 VAC	Connector, 3-pole (2 + PE)	10.8
R901515865	H-4W.H..	Symbol C	230 VAC	Connector, 3-pole (2 + PE)	10.71
R901255439	H-4W.H..	Symbol C	230 VAC	Connector, 3-pole (2 + PE)	10.22
R900973119	H-4W.H..	Symbol C	230 VAC	Connector, 3-pole (2 + PE)	9.22
R901373379	H-4W.H..	Symbol C	230 VAC	Connector, 3-pole (2 + PE)	10.28
R900719967	H-4W.H..	Symbol C	230 VAC	Connector, 3-pole (2 + PE)	8.31
R901333013	H-4W.H..	Symbol C	230 VAC	Connector, 3-pole (2 + PE)	10
R900784038	H-4W.H..	Symbol C	230 VAC	Connector, 3-pole (2 + PE)	9.5
R900784037	H-4W.H..	Symbol C	230 VAC	Connector, 3-pole (2 + PE)	9.24
R900244646	H-4W.H..	Symbol C	230 VAC	Connector, 3-pole (2 + PE)	9.16
R900773098	H-4W.H..	Symbol C	230 VAC	Connector, 3-pole (2 + PE)	10.31
R900783800	H-4W.H..	Symbol C	230 VAC	Connector, 3-pole (2 + PE)	9.2
R901236747	H-4W.H..	Symbol C	110…120 VAC	Connector, 3-pole (2 + PE)	10
R901016961	H-4W.H..	Symbol C	110…120 VAC	Connector, 3-pole (2 + PE)	9.2
R901427019	H-4W.H..	Symbol C	110…120 VAC	Connector, 3-pole (2 + PE)	10
R987245774	H-4W.H..	Symbol C	110…120 VAC	Connector, 3-pole (2 + PE)	10.22

Common to all listed parts

Connection diagram	ISO 4401-07-07-0-05
Max. flow [l/min]	300.0
Type of connection	Subplate mounting
Size	16
Type of actuation	with solenoid actuation
Number of ports	4
Number of switching positions	2
Electrical connection description	Connector 3-pole (2 + PE) according to EN 175301-803
