Directional on/off valve Parts
Compare Directional on/off valve
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Spool symbol | Number of switching positions | Supply voltage | Weight [kg] |
|---|---|---|---|---|---|
| R900979642 | H-4W.H.. | Symbol E | 3 | 12 VDC | 9.78 |
| R900968795 | H-4W.H.. | Symbol E | 3 | 12 VDC | 10 |
| R900968797 | H-4W.H.. | Symbol E | 3 | 12 VDC | 10 |
| R901125725 | H-4W.H.. | Symbol E | 3 | 125 VDC | 10.9 |
| R901278647 | H-4W.H.. | Symbol E | 3 | 125 VDC | 9.19 |
| R900964113 | H-4W.H.. | Symbol E | 3 | 125 VDC | 9.78 |
| R900967842 | H-4W.H.. | Symbol E | 3 | 110 VDC | 10 |
| R900775086 | H-4W.H.. | Symbol E | 3 | 110 VDC | 9.76 |
| R901374619 | H-4W.H.. | Symbol E | 3 | 110 VDC | 10.8 |
| R901202640 | H-4W.H.. | Symbol E | 3 | 110 VDC | 10.84 |
| R901107011 | H-4W.H.. | Symbol E | 3 | 110 VDC | 9.74 |
| R901104617 | H-4W.H.. | Symbol E | 3 | 110 VDC | 10.82 |
| R900703377 | H-4W.H.. | Symbol E | 3 | 110 VDC | 9.76 |
| R901227625 | H-4W.H.. | Symbol E | 3 | 110 VDC | 10.84 |
| R901416534 | H-4W.H.. | Symbol E | 3 | 110 VDC | 9.76 |
| R901531053 | WEH, WH...6H | Symbol E42 | 3 | 24 VDC | 0 |
| R901531084 | WEH, WH...6H | Symbol E | 3 | 24 VDC | 0 |

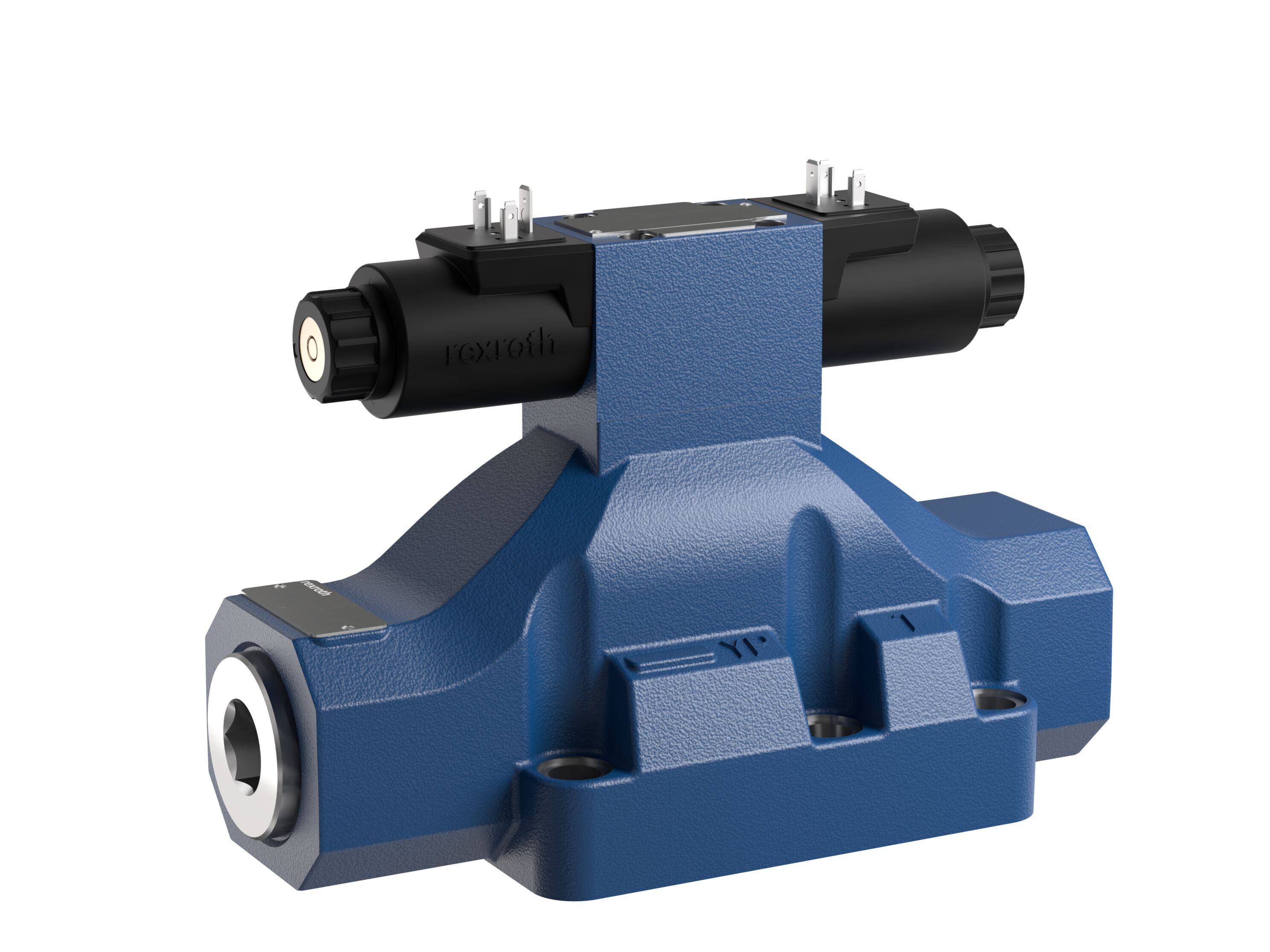

| R901531083 | WEH, WH...6H | Symbol E | 3 | 24 VDC | 0 |
| R901531082 | WEH, WH...6H | Symbol E | 3 | 24 VDC | 7.9 |
| R901531080 | WEH, WH...6H | Symbol E | 3 | 24 VDC | 0 |
| R901531076 | WEH, WH...6H | Symbol E | 3 | 24 VDC | 7.9 |
| R901108813 | H-4W.H.. | Symbol D | 3 | 24 VDC | 9.26 |
| R901117456 | H-4W.H.. | Symbol D | 3 | 24 VDC | 9.24 |
| R900944298 | H-4W.H.. | Symbol D | 2 | 230 VAC | 10 |
Common to all listed parts
| Connection diagram | ISO 4401-07-07-0-05 |
| Max. flow [l/min] | 300.0 |
| Type of connection | Subplate mounting |
| Size | 16 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Electrical connector | Connector, 3-pole (2 + PE) |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
