Directional on/off valve Parts
Compare Directional on/off valve
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Spool symbol | Number of switching positions | Supply voltage | Weight [kg] |
|---|---|---|---|---|---|
| R900935318 | H-4W.H.. | Symbol F | 3 | 24 VDC | 9.65 |
| R900971124 | H-4W.H.. | Symbol F | 3 | 24 VDC | 7.11 |
| R901015836 | H-4W.H.. | Symbol F | 3 | 24 VDC | 10.7 |
| R901305429 | H-4W.H.. | Symbol F | 3 | 24 VDC | 10 |
| R901212342 | H-4W.H.. | Symbol F | 3 | 24 VDC | 9.76 |
| R901036606 | H-4W.H.. | Symbol F | 3 | 24 VDC | 9.74 |
| R900738958 | H-4W.H.. | Symbol F | 3 | 24 VDC | 10 |
| R900956795 | H-4W.H.. | Symbol F | 3 | 24 VDC | 9.82 |
| R900701934 | H-4W.H.. | Symbol F | 3 | 24 VDC | 9.55 |
| R901264366 | H-4W.H.. | Symbol F | 3 | 24 VDC | 10.82 |
| R901441685 | H-4W.H.. | Symbol F | 3 | 24 VDC | 9.83 |
| R901061611 | H-4W.H.. | Symbol F | 3 | 24 VDC | 10.6 |
| R901108719 | H-4W.H.. | Symbol EA | 2 | 24 VDC | 9.06 |
| R901531092 | WEH, WH...6H | Symbol E | 3 | 24 VDC | 0 |

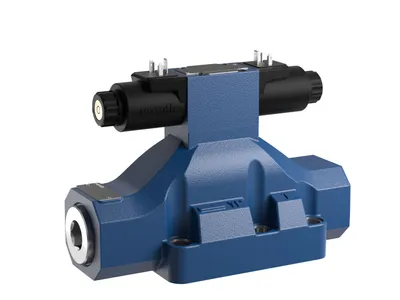

| R901531088 | WEH, WH...6H | Symbol E | 3 | 24 VDC | 0 |
| R901119649 | H-4W.H.. | Symbol E | 2 | 24 VDC | 9.4 |
| R901108855 | H-4W.H.. | Symbol E | 3 | 24 VDC | 9.36 |
| R901108754 | H-4W.H.. | Symbol E | 3 | 24 VDC | 9.44 |
| R901108756 | H-4W.H.. | Symbol E | 3 | 24 VDC | 9.44 |
| R900965511 | H-4W.H.. | Symbol E | 3 | 230 VAC | 10 |
| R901083288 | H-4W.H.. | Symbol E | 3 | 230 VAC | 9.64 |
| R901223038 | H-4W.H.. | Symbol E | 3 | 230 VAC | 10.66 |
| R900979410 | H-4W.H.. | Symbol E | 3 | 230 VAC | 10.66 |
| R900938808 | H-4W.H.. | Symbol E | 3 | 230 VAC | 10.4 |
Common to all listed parts
| Connection diagram | ISO 4401-07-07-0-05 |
| Max. flow [l/min] | 300.0 |
| Type of connection | Subplate mounting |
| Size | 16 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
| Seals | NBR |
