Directional on/off valve Parts
Compare Directional on/off valve
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Operating pressure, max. [bar] | Spool symbol | Supply voltage | Weight [kg] |
|---|---|---|---|---|---|
| R900722373 | WE6../E | 350.0 | Symbol B | 110 VDC | 1.66 |
| R900733846 | WE6../E | 350.0 | Symbol B | 110 VDC | 1.44 |
| R900939013 | WE6../E | 350.0 | Symbol B | 110 VDC | 1.44 |

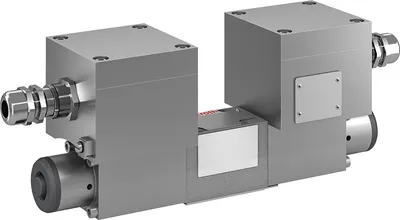

| R901236490 | WE6../.B.XD | 315.0 | Symbol B | 24 VDC | 5.28 |

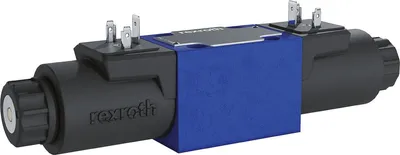

| R988146619 | WE 6...H | 350.0 | Symbol B | 24 VDC | 1.4 |
| R901520936 | WE6../E | 350.0 | Symbol A9 | 96 VDC | 1.96 |
| R900951137 | WE6../E | 350.0 | Symbol A9 | 24 VDC | 1.98 |
| R901527379 | WE6../E | 350.0 | Symbol A9 | 96 VDC | 1.49 |
| R900924291 | WE6../E | 350.0 | Symbol A9 | 96 VDC | 1.45 |
| R900962741 | WE6../E | 350.0 | Symbol A9 | 48 VDC | 1.44 |
| R901186915 | WE 6…E..XE | 350.0 | Symbol A9 | 24 VDC | 2.6 |
| R901053744 | WE 6…E..XE | 350.0 | Symbol A9 | 24 VDC | 2.58 |
| R900929291 | WE6../E | 350.0 | Symbol A9 | 24 VDC | 1.48 |
| R900904951 | WE6../E | 350.0 | Symbol A9 | 24 VDC | 1.56 |
| R900777171 | WE6../E | 350.0 | Symbol A9 | 24 VDC | 1.66 |
| R978901225 | WE6../E | 350.0 | Symbol A9 | 24 VDC | 1.45 |
| R901176492 | WE6../E | 350.0 | Symbol A9 | 24 VDC | 1.46 |
| R900940267 | WE6../E | 350.0 | Symbol A9 | 24 VDC | 1.46 |
| R901448610 | WE6../E | 350.0 | Symbol A9 | 24 VDC | 1.57 |
| R900968567 | WE6../E | 350.0 | Symbol A9 | 24 VDC | 1.57 |
| R900902760 | WE6../E | 350.0 | Symbol A9 | 24 VDC | 1.45 |
| R901480476 | WE6../E | 350.0 | Symbol A9 | 24 VDC | 1.55 |
| R900764275 | WE6../E | 350.0 | Symbol A9 | 24 VDC | 1.54 |
| R900929460 | WE6../E | 350.0 | Symbol A9 | 24 VDC | 1.56 |
Common to all listed parts
| Connection diagram | ISO 4401-03-02-0-05 |
| Size | 6 |
| Type of actuation | with solenoid actuation |
| Number of ports | 3 |
| Number of switching positions | 2 |
