Directional on/off valve Parts
Compare Directional on/off valve
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Supply voltage | Electrical connector | Weight [kg] | Max. flow [l/min] |
|---|---|---|---|---|---|
| R901254919 | WE6../E | 110 - 120 VAC | Connector, 3-pole (2 + PE) | 1.64 | — |
| R900914338 | WE6../E | 110…120 VAC | Connector, 3-pole (2 + PE) | 1.3 | 13.0 |
| R900906667 | WE6../E | 110…120 VAC | Connector, 3-pole (2 + PE) | 1.3 | 13.0 |
| R901228473 | WE6../E | 110…120 VAC | Cable gland | 1.57 | 13.0 |
| R900911357 | WE6../E | 110…120 VAC | Cable gland | 1.4 | 13.0 |
| R900902670 | WE6../E | 110…120 VAC | Cable gland | 1.42 | 13.0 |
| R900736762 | WE6../E | 100 VAC 50/60Hz | Connector, 3-pole (2 + PE) | 1.4 | 13.0 |
| R900734530 | WE6../E | 100 VAC 50/60Hz | Cable gland | 1.42 | 13.0 |
| R901289837 | WE6../E | 100 VAC 50/60Hz | Cable gland | 1.57 | 13.0 |
| R900734529 | WE6../E | 100 VAC 50/60Hz | Cable gland | 1.42 | 13.0 |
| R900921525 | WE6../E | 96 VDC | Connector, 3-pole (2 + PE) | 1.44 | 80.0 |
| R901128196 | WE 6…E..XE | 48 VDC | Cable gland | 2.58 | 20.0 |
| R901479306 | WE6../E | 48 VDC | Connector, 3-pole (2 + PE) | 1.44 | 80.0 |
| R900932218 | WE6../E | 48 VDC | Connector, 3-pole (2 + PE) | 1.44 | 80.0 |
| R901189382 | WE 6…E..XE | 24 VDC | Cable gland | 2.6 | 30.0 |
| R901094249 | WE 6…E..XE | 24 VDC | Cable gland | 2.56 | 30.0 |
| R901445216 | WE6../E | 24 VDC | Connector, 3-pole (2 + PE) | 1.57 | 80.0 |
| R901156264 | WE6../E | 24 VDC | Connector, 3-pole (2 + PE) | 1.46 | 80.0 |
| R900977013 | WE6../E | 24 VDC | Connector, 3-pole (2 + PE) | 1.46 | 80.0 |
| R900957243 | WE6../E | 24 VDC | Connector, 3-pole (2 + PE) | 1.46 | 80.0 |
| R900740646 | WE6../E | 24 VDC | Cable gland | 1.57 | 80.0 |
| R901056452 | WE6../E | 24 VDC | Connector, 2-pole (Junior-Timer) | 1.57 | 80.0 |

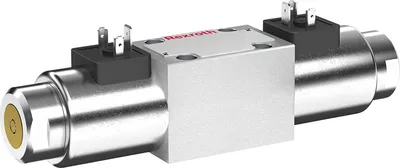

| R901336587 | WE 6…XN | 24 VDC | Connector, 3-pole (2 + PE) | 2.34 | 30.0 |
| R901241230 | WE6../E | 24 VDC | Connector, 4-pole, M12 x 1, coding A | 1.48 | 80.0 |
Common to all listed parts
| Connection diagram | ISO 4401-03-02-0-05 |
| Operating pressure, max. [bar] | 350.0 |
| Spool symbol | Symbol B |
| Size | 6 |
| Type of actuation | with solenoid actuation |
| Number of ports | 3 |
| Number of switching positions | 2 |
