Directional on/off valve Parts
Compare Directional on/off valve
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Max. flow [l/min] | Spool symbol | Supply voltage | Weight [kg] |
|---|---|---|---|---|---|
| R901364237 | WE10../E | 150.0 | Symbol J | 205 VDC | 5.8 |
| R901490161 | WE10../E | 150.0 | Symbol J | 24 VDC | 5.8 |
| R987414161 | WE10../E | 125.0 | Symbol H73 | 205 VDC | 0 |
| R901439718 | WE10../E | 120.0 | Symbol H | 24 VDC | 4 |
| R901411636 | WE10../E | 90.0 | Symbol G | 96 VDC | 5.8 |
| R901362783 | WE10../E | 90.0 | Symbol G | 12 VDC | 5.86 |
| R901463195 | WE10../E | 150.0 | Symbol E | 24 VDC | 5.75 |
| R901390952 | WE10../E | 150.0 | Symbol E | 24 VDC | 5.7 |
| R901232486 | WE10../E | 135.0 | Symbol D | 125 VDC | 5.74 |
| R901468966 | WE10../E | 135.0 | Symbol D | 125 VDC | 5.6 |
| R901518625 | WE10../E | 135.0 | Symbol D | 110 VDC | 5.7 |
| R901500268 | WE10../E | 100.0 | Symbol D | 110 VAC (mit Gleichrichter) | 4.23 |
| R901385372 | WE10../E | 135.0 | Symbol D | 24 VDC | 4.2 |
| R901376297 | WE10../E | 135.0 | Symbol D | 24 VDC | 4.3 |
| R901450316 | WE10../E | 135.0 | Symbol D | 205 VDC | 4.1 |
| R901425026 | WE10../E | 135.0 | Symbol C | 24 VDC | 4.2 |
| R901428572 | W.10 | 73.0 | Symbol B | — | 3.2 |

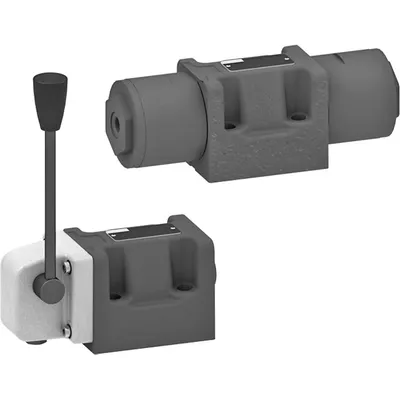

| R901362422 | W.10 | 102.0 | Symbol A | — | 3.2 |
| R901539132 | W.10 | 160.0 | Symbol B | — | 3.7 |
| R901490158 | W.10 | — | Symbol A | — | 4.8 |
| R901582713 | W.10 | 160.0 | Symbol A | — | 3.7 |

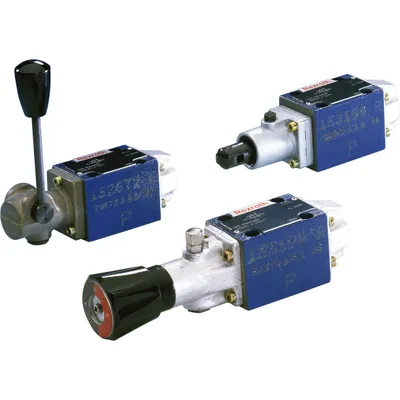

| R900471414 | WM.6 | 60.0 | Symbol A | — | 1.16 |
| R901430446 | WMM10 | — | Symbol B | — | 3.6 |
| R901422970 | WMM10 | — | Symbol B | — | 3.6 |
Common to all listed parts
| Type of connection | Subplate mounting |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
