Directional on/off valve Parts

Bosch Rexroth

R901350296

DIRECTIONAL SPOOL VALVE 4WE10D5X/OEG24N9K4/M

Bosch Rexroth

R901508650

DIRECTIONAL SPOOL VALVE 4WE10D5X/OEG24K4/M

Bosch Rexroth

R901418755

DIRECTIONAL SPOOL VALVE 4WE10D5X/OEG220N9K4/M

Bosch Rexroth

R901486160

DIRECTIONAL SPOOL VALVE 4WE10D5X/OEG205N9K4/M

Bosch Rexroth

R901481165

DIRECTIONAL SPOOL VALVE 4WE10D5X/OEG125N9K4/V

Bosch Rexroth

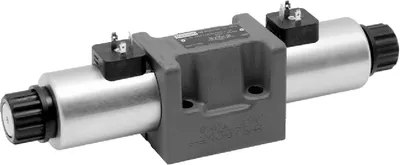

R901432612

DIRECTIONAL SPOOL VALVE 4WE10D5X/HG24N9K4QYBG24/M

Bosch Rexroth

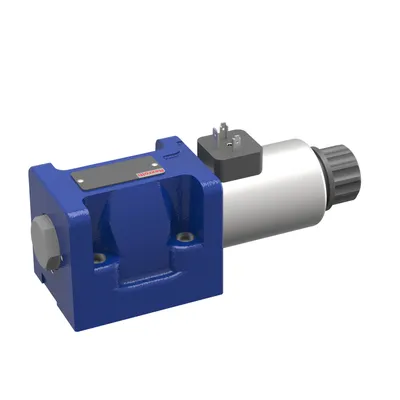

R901391200

DIRECTIONAL SPOOL VALVE 4WE10D5X/HG24N9K4/M

Bosch Rexroth

R901366815

DIRECTIONAL SPOOL VALVE 4WE10D5X/EW230RN9DL/V

Bosch Rexroth

R901376511

DIRECTIONAL SPOOL VALVE 4WE10D5X/EW230RN9DL/M

Bosch Rexroth

R901550934

DIRECTIONAL SPOOL VALVE 4WE10D5X/EW230RN9DL/B12M

Bosch Rexroth

R901578009

DIRECTIONAL SPOOL VALVE 4WE10D5X/EW230RN9DL/B04M

Bosch Rexroth

R901389566

DIRECTIONAL SPOOL VALVE 4WE10D5X/EW230RN9DK6L/M

Bosch Rexroth

R901529623

DIRECTIONAL SPOOL VALVE 4WE10D5X/EW230N9K4/V

Bosch Rexroth

R901483529

DIRECTIONAL SPOOL VALVE 4WE10D5X/EW230N9K4/M

Bosch Rexroth

R901384888

DIRECTIONAL SPOOL VALVE 4WE10D5X/EW200RN9DL/M

Bosch Rexroth

R901552236

DIRECTIONAL SPOOL VALVE 4WE10D5X/EW200RN9DL/B04M

Bosch Rexroth

R901523642

DIRECTIONAL SPOOL VALVE 4WE10D5X/EW200N9K4/M

Bosch Rexroth

R901554129

DIRECTIONAL SPOOL VALVE 4WE10D5X/EW200N9DL/V

Bosch Rexroth

R901554130

DIRECTIONAL SPOOL VALVE 4WE10D5X/EW200N9DL/M

Bosch Rexroth

R901554133

DIRECTIONAL SPOOL VALVE 4WE10D5X/EW200N9DL/B04V

Bosch Rexroth

R901489017

DIRECTIONAL SPOOL VALVE 4WE10D5X/EW120RN9DL/V

Bosch Rexroth

R901406499

DIRECTIONAL SPOOL VALVE 4WE10D5X/EW120RN9DK6L/V

Bosch Rexroth

R901565580

DIRECTIONAL SPOOL VALVE 4WE10D5X/EW120RN9DAL/V

Bosch Rexroth

R901564339

DIRECTIONAL SPOOL VALVE 4WE10D5X/EW120RN9DAL/M

Compare Directional on/off valve

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product family	Max. flow [l/min]	Supply voltage	Electrical connector	Weight [kg]
R901350296	WE10../E	135.0	24 VDC	Connector, 3-pole (2 + PE)	5.48
R901508650	WE10../E	135.0	24 VDC	Connector, 3-pole (2 + PE)	5.49
R901418755	WE10../E	135.0	220 VDC	Connector, 3-pole (2 + PE)	4.2
R901486160	WE10../E	135.0	205 VDC	Connector, 3-pole (2 + PE)	4.4
R901481165	WE10../E	135.0	125 VDC	Connector, 3-pole (2 + PE)	5.5
R901432612	WE10../H	135.0	24 VDC	Connector, 3-pole (2 + PE)	3.45
R901391200	WE10../H	135.0	24 VDC	Connector, 3-pole (2 + PE)	3.29
R901366815	WE10../E	145.0	230 VAC (mit Gleichrichter)	Cable gland	4.07
R901376511	WE10../E	145.0	230 VAC (mit Gleichrichter)	Cable gland	4.7
R901550934	WE10../E	145.0	230 VAC 50/60Hz	Cable gland	4.1
R901578009	WE10../E	145.0	230 VAC 50/60Hz	Cable gland	4.08
R901389566	WE10../E	145.0	230 VAC (mit Gleichrichter)	Connector, 7-pole (6 + PE)	4.1
R901529623	WE10../E	145.0	230 VAC 50/60Hz	Connector, 3-pole (2 + PE)	3.3
R901483529	WE10../E	145.0	230 VAC 50/60Hz	Connector, 3-pole (2 + PE)	3.28
R901384888	WE10../E	145.0	200 VAC (mit Gleichrichter)	Cable gland	4.1
R901552236	WE10../E	145.0	200 VAC 50Hz	Cable gland	4.08
R901523642	WE10../E	145.0	200 VAC 50Hz	Connector, 3-pole (2 + PE)	3.2
R901554129	WE10../E	145.0	200 VAC 50Hz	Cable gland	3.3
R901554130	WE10../E	145.0	200 VAC 50Hz	Cable gland	0
R901554133	WE10../E	145.0	200 VAC 50Hz	Cable gland	0
R901489017	WE10../E	100.0	120 VAC (mit Gleichrichter)	Cable gland	4.08
R901406499	WE10../E	100.0	120 VAC (mit Gleichrichter)	Connector, 7-pole (6 + PE)	4.1
R901565580	WE10../E	100.0	120 VAC 50/60Hz	Cable gland	4.5
R901564339	WE10../E	100.0	120 VAC 50/60Hz	Cable gland	4.5

Common to all listed parts

Connection diagram	ISO 4401-05-04-0-05
Spool symbol	Symbol D
Type of connection	Subplate mounting
Size	10
Type of actuation	with solenoid actuation
Number of ports	4
Number of switching positions	2
Electrical connection description	Connector 3-pole (2 + PE) according to EN 175301-803
