Directional on/off valve Parts

Bosch Rexroth

R901563443

DIRECTIONAL SPOOL VALVE 4WE10J73-5X/DEG12N9K4/M

Bosch Rexroth

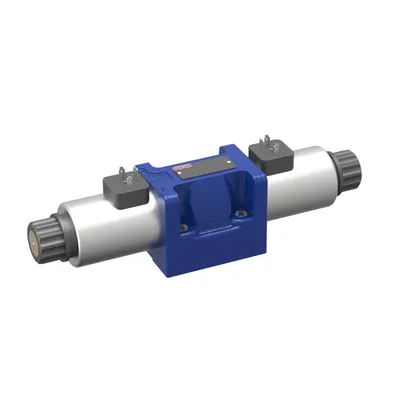

R901401552

DIRECTIONAL SPOOL VALVE 4WE10J5X/HG24N9K4/M

Bosch Rexroth

R901410193

DIRECTIONAL SPOOL VALVE 4WE10J5X/EW230RN9DL/M

Bosch Rexroth

R901396945

DIRECTIONAL SPOOL VALVE 4WE10J5X/EW230RN9DK6L/M

Bosch Rexroth

R901559046

DIRECTIONAL SPOOL VALVE 4WE10J5X/EW230RN9DJL/M

Bosch Rexroth

R901372907

DIRECTIONAL SPOOL VALVE 4WE10J5X/EW230RN9DAL/V

Bosch Rexroth

R901511924

DIRECTIONAL SPOOL VALVE 4WE10J5X/EW230N9K4/V

Bosch Rexroth

R901483526

DIRECTIONAL SPOOL VALVE 4WE10J5X/EW230N9K4/M

Bosch Rexroth

R901542135

DIRECTIONAL SPOOL VALVE 4WE10J5X/EW230N9K4/B40M

Bosch Rexroth

R901569471

DIRECTIONAL SPOOL VALVE 4WE10J5X/EW230N9K4/B10M

Bosch Rexroth

R901523638

DIRECTIONAL SPOOL VALVE 4WE10J5X/EW200N9K4/V

Bosch Rexroth

R901523644

DIRECTIONAL SPOOL VALVE 4WE10J5X/EW200N9K4/M

Bosch Rexroth

R901554108

DIRECTIONAL SPOOL VALVE 4WE10J5X/EW200N9DJL/V

Bosch Rexroth

R901554111

DIRECTIONAL SPOOL VALVE 4WE10J5X/EW200N9DJL/M

Bosch Rexroth

R901448719

DIRECTIONAL SPOOL VALVE 4WE10J5X/EW120RN9DK6L/V

Bosch Rexroth

R901379053

DIRECTIONAL SPOOL VALVE 4WE10J5X/EW120RN9DK6L/MH

Bosch Rexroth

R901366412

DIRECTIONAL SPOOL VALVE 4WE10J5X/EW120RN9DK6L/M

Bosch Rexroth

R901564373

DIRECTIONAL SPOOL VALVE 4WE10J5X/EW120RN9DAL/M

Bosch Rexroth

R901487096

DIRECTIONAL SPOOL VALVE 4WE10J5X/EW120N9K4/V

Bosch Rexroth

R901483525

DIRECTIONAL SPOOL VALVE 4WE10J5X/EW120N9K4/M

Bosch Rexroth

R901509328

DIRECTIONAL SPOOL VALVE 4WE10J5X/EW120N9K4/B12M

Bosch Rexroth

R901530020

DIRECTIONAL SPOOL VALVE 4WE10J5X/EW120N9DAL/M

Bosch Rexroth

R901579526

DIRECTIONAL SPOOL VALVE 4WE10J5X/EW120N9DAL/B08M

Bosch Rexroth

R901369382

DIRECTIONAL SPOOL VALVE 4WE10J5X/EW110RN9DL/V

Compare Directional on/off valve

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Max. flow [l/min]	Supply voltage	Electrical connector	Seals	Weight [kg]
R901563443	160.0	12 VDC	Connector, 3-pole (2 + PE)	NBR	5.56
R901401552	135.0	24 VDC	Connector, 3-pole (2 + PE)	NBR	4.39
R901410193	120.0	230 VAC (mit Gleichrichter)	Cable gland	NBR	5.5
R901396945	120.0	230 VAC (mit Gleichrichter)	Connector, 7-pole (6 + PE)	NBR	5.6
R901559046	120.0	230 VAC 50/60Hz	Cable gland	NBR	5.55
R901372907	120.0	230 VAC (mit Gleichrichter)	Cable gland	FKM	5.6
R901511924	120.0	230 VAC 50/60Hz	Connector, 3-pole (2 + PE)	FKM	3.99
R901483526	120.0	230 VAC 50/60Hz	Connector, 3-pole (2 + PE)	NBR	4
R901542135	120.0	230 VAC 50/60Hz	Connector, 3-pole (2 + PE)	NBR	4
R901569471	120.0	230 VAC 50/60Hz	Connector, 3-pole (2 + PE)	NBR	3.96
R901523638	120.0	200 VAC 50Hz	Connector, 3-pole (2 + PE)	FKM	4.03
R901523644	120.0	200 VAC 50Hz	Connector, 3-pole (2 + PE)	NBR	4
R901554108	120.0	200 VAC 50Hz	Cable gland	FKM	4.13
R901554111	120.0	200 VAC 50Hz	Cable gland	NBR	4.02
R901448719	112.0	120 VAC (mit Gleichrichter)	Connector, 7-pole (6 + PE)	FKM	5.4
R901379053	112.0	120 VAC (mit Gleichrichter)	Connector, 7-pole (6 + PE)	NBR (HFC)	4.78
R901366412	112.0	120 VAC (mit Gleichrichter)	Connector, 7-pole (6 + PE)	NBR	5.6
R901564373	112.0	120 VAC 50/60Hz	Cable gland	NBR	4.5
R901487096	112.0	120 VAC 50/60Hz	Connector, 3-pole (2 + PE)	FKM	3.99
R901483525	112.0	120 VAC 50/60Hz	Connector, 3-pole (2 + PE)	NBR	3.95
R901509328	112.0	120 VAC 50/60Hz	Connector, 3-pole (2 + PE)	NBR	4
R901530020	112.0	120 VAC 50/60Hz	Cable gland	NBR	4.02
R901579526	112.0	120 VAC 50/60Hz	Cable gland	NBR	4.02
R901369382	112.0	110 VAC (mit Gleichrichter)	Cable gland	FKM	5.4

Common to all listed parts

Connection diagram	ISO 4401-05-04-0-05
Type of connection	Subplate mounting
Size	10
Type of actuation	with solenoid actuation
Number of ports	4
Number of switching positions	3
Electrical connection description	Connector 3-pole (2 + PE) according to EN 175301-803
