Directional on/off valve Parts
Compare Directional on/off valve
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Max. flow [l/min] | Spool symbol | Supply voltage | Weight [kg] |
|---|---|---|---|---|---|
| R901467754 | WE6../E | 70.0 | Symbol C | 220 VDC | 1.6 |
| R900970281 | WE6../E | 70.0 | Symbol C | 220 VDC | 1.42 |
| R901076527 | WE6../E | 70.0 | Symbol C | 205 VDC | 1.42 |
| R900902960 | WE6../E | 70.0 | Symbol C | 205 VDC | 1.45 |
| R900937008 | WE6../E | 70.0 | Symbol C | 180 VDC | 1.8 |
| R901095056 | WE6../E | 70.0 | Symbol C | 12 VDC | 1.44 |
| R901486352 | WE6../E | 70.0 | Symbol C | 12 VDC | 1.8 |
| R901024106 | WE6../E | 70.0 | Symbol C | 12 VDC | 1.44 |
| R900903685 | WE6../E | 70.0 | Symbol C | 12 VDC | 1.46 |
| R901004265 | WE6../E | 70.0 | Symbol C | 12 VDC | 1.8 |
| R900951957 | WE6../E | 70.0 | Symbol C | 12 VDC | 1.44 |
| R900958108 | WE6../E | 70.0 | Symbol C | 125 VDC | 1.45 |
| R900970652 | WE6../E | 70.0 | Symbol C | 125 VDC | 1.42 |
| R901257513 | WE6../E | — | Symbol C | 110 VDC | 1.8 |
| R900934857 | WE6../E | 70.0 | Symbol C | 110 VDC | 1.44 |
| R901527976 | WE6../.B.X | 20.0 | Symbol C | 12 VDC | 4.36 |

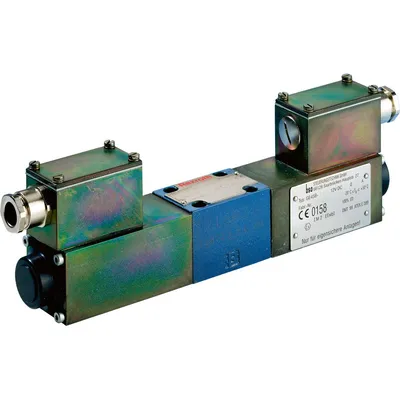

| R901344106 | WE6../.B.X | 20.0 | Symbol C | 12 VDC | 3.02 |
| R901344095 | WE6../.B.X | 20.0 | Symbol C | 12 VDC | 3.02 |
| R901550927 | WE6../E | — | Symbol C22 | 28 VDC | 0 |

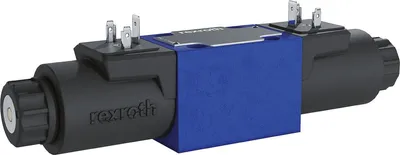

| R988129090 | WE 6...H | 100.0 | Symbol C | 24 VDC | 1.26 |
| R901358309 | WE10../E | 120.0 | Symbol Y73 | 96 VDC | 4.4 |
| R901548009 | WE10../E | 120.0 | Symbol Y73 | 96 VDC | 4.1 |
| R901361445 | WE10../E | 120.0 | Symbol Y73 | 24 VDC | 4 |
| R901562235 | WE10../E | 116.0 | Symbol D73 | 24 VDC | 4.03 |
Common to all listed parts
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Number of switching positions | 2 |
