Directional on/off valve Parts
Compare Directional on/off valve
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Max. flow [l/min] | Supply voltage | Seals | Weight [kg] |
|---|---|---|---|---|---|
| R900939981 | WE6../E | 70.0 | 26 VDC | NBR | 1.44 |
| R901389950 | WE6../E | 70.0 | 26 VDC | NBR | 1.46 |
| R901579145 | WE6../E | — | 26 VDC | NBR | 1.65 |
| R901542961 | WE6../E | 70.0 | 26 VDC | NBR | 1.5 |
| R901315709 | WE 6…E..XE | 70.0 | 24 VDC | FKM | 2.6 |
| R901091387 | WE 6…E..XE | 70.0 | 24 VDC | NBR | 2.6 |
| R901035957 | WE 6…E..XE | 70.0 | 24 VDC | NBR | 2.6 |
| R900959491 | WE6../E | 70.0 | 24 VDC | NBR | 1.64 |
| R901155388 | WE6../E | 70.0 | 24 VDC | FKM | 1.46 |
| R900937112 | WE6../E | 70.0 | 24 VDC | NBR | 1.45 |
| R900938375 | WE6../E | 70.0 | 24 VDC | NBR | 1.46 |
| R901230580 | WE6../E | 70.0 | 24 VDC | NBR | 1.45 |
| R900934789 | WE6../E | 70.0 | 24 VDC | NBR | 1.44 |
| R901467650 | WE6../E | 70.0 | 24 VDC | NBR | 1.8 |
| R900960947 | WE6../E | 70.0 | 24 VDC | NBR | 1.56 |

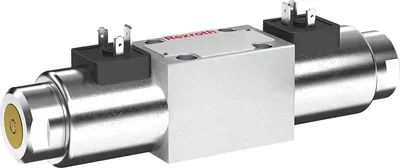

| R901272492 | WE 6…XN | 80.0 | 24 VDC | NBR | 2.2 |
| R901235400 | WE6../E | 70.0 | 24 VDC | NBR | 1.44 |
| R901392855 | WE6../E | 70.0 | 24 VDC | FKM | 1.64 |
| R901255255 | WE6../E | 70.0 | 24 VDC | NBR | 1.64 |
| R901235375 | WE6../E | 70.0 | 24 VDC | NBR | 1.46 |
| R901268788 | WE6../E | 70.0 | 24 VDC | FKM | 1.64 |
| R900909149 | WE6../E | 70.0 | 24 VDC | NBR | 1.64 |
| R901423574 | WE6../E | 70.0 | 24 VDC | FKM | 1.8 |
| R901458695 | WE6../E | 70.0 | 24 VDC | NBR | 1.7 |
Common to all listed parts
| Connection diagram | ISO 4401-03-02-0-05 |
| Operating pressure, max. [bar] | 350.0 |
| Spool symbol | Symbol C |
| Size | 6 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Number of switching positions | 2 |
