Directional on/off valve Parts
Compare Directional on/off valve
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Max. flow [l/min] | Supply voltage | Conformity | Weight [kg] |
|---|---|---|---|---|---|
| R901164581 | WE6../E | 80.0 | 110 VDC | CE; UKCA | 3.14 |
| R901011342 | WE6../E | 80.0 | 110 VDC | CE; UKCA | 2 |
| R900745420 | WE6../E | 80.0 | 110 VDC | CE; UKCA | 1.95 |
| R901125998 | WE6../E | 80.0 | 110 VDC | CE; UKCA | 1.96 |
| R901203045 | WE6../E | — | 110 VDC | CE; UKCA | 2.54 |
| R901187827 | WE6../E | 80.0 | 110 VDC | CE; UKCA | 2.52 |
| R901182866 | WE6../E | 80.0 | 110 VDC | CE; UKCA | 3.26 |
| R900965028 | WE6../E | 80.0 | 110 VDC | CE; UKCA | 1.94 |
| R901401883 | WE6../E | — | 110 VDC | CE; UKCA | 1.94 |
| R901157129 | WE6../E | 80.0 | 110 VDC | CE; UKCA | 1.8 |
| R901394143 | WE6../E | — | 110 VDC | CE; UKCA | 1.8 |
| R901483086 | WE6../E | 80.0 | 110 VDC | CE; UKCA | 1.96 |
| R901415148 | WE6../E | 80.0 | 110 VDC | CE; UKCA | 1.43 |
| R900966555 | WE6../E | 80.0 | 110 VDC | CE; UKCA | 1.94 |
| R901023781 | WE6../E | 80.0 | 110 VDC | CE; UKCA | 1.8 |
| R900972680 | WE6../E | 80.0 | 110 VDC | CE; UKCA | 2 |
| R900918801 | WE6../E | 80.0 | 110 VDC | CE; UKCA | 1.94 |
| R901556688 | WE6../E | — | 110 VDC | CE; UKCA | 2.03 |
| R900574915 | WE6../E | 80.0 | 110 VDC | CE; UKCA | 2.02 |
| R900964355 | WE6../E | 80.0 | 110 VDC | CE; UKCA | 2.04 |
| R900752385 | WE6../E | 80.0 | 110 VDC | CE; UKCA | 1.92 |

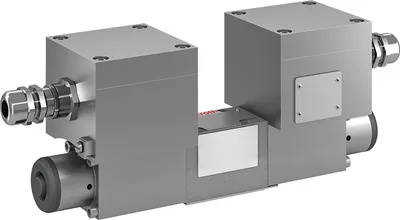

| R901044049 | WE6../.B.XD | 60.0 | 24 VDC | ATEX; CCC-Ex | 9.45 |
| R901202696 | WE 6…E..XE | 70.0 | 230 VAC 50/60Hz | ATEX; CCC-Ex; CE; UKCA | 3.95 |
| R900934073 | WE6../E | 60.0 | 230 VAC 50/60Hz | CE; UKCA | 1.72 |
Common to all listed parts
| Connection diagram | ISO 4401-03-02-0-05 |
| Spool symbol | Symbol D |
| Size | 6 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Number of switching positions | 2 |
