Directional on/off valve Parts
Compare Directional on/off valve
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Spool symbol | Supply voltage | Electrical connector | Weight [kg] |
|---|---|---|---|---|---|
| R900743250 | WE6../E | Symbol EA | 48 VDC | Connector, 3-pole (2 + PE) | 1.42 |
| R900747581 | WE6../E | Symbol E | 48 VDC | Cable gland | 1.8 |
| R900564099 | WE6../E | Symbol EA | 26 VDC | Connector, 3-pole (2 + PE) | 1.44 |
| R901009183 | WE 6…E..XE | Symbol E | 24 VDC | Cable gland | 2.58 |
| R901049927 | WE 6…E..XE | Symbol E | 24 VDC | Cable gland | 2.6 |
| R900619728 | WE6../E | Symbol EA | 24 VDC | Connector, 3-pole (2 + PE) | 1.8 |
| R900909020 | WE6../E | Symbol EA | 24 VDC | Connector, 3-pole (2 + PE) | 1.66 |
| R900920705 | WE6../E | Symbol EA | 24 VDC | Connector, 3-pole (2 + PE) | 1.44 |
| R901448197 | WE6../E | Symbol EA | 24 VDC | Cable gland | 1.56 |

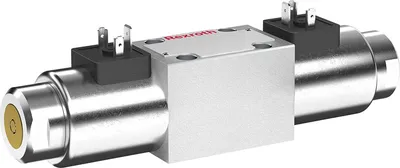

| R901305966 | WE 6…XN | Symbol E | 24 VDC | Connector, 3-pole (2 + PE) | 2.28 |
| R901255260 | WE6../E | Symbol EA | 24 VDC | Connector, 4-pole, M12 x 1, coding A | 1.46 |
| R901265320 | WE6../E | Symbol EA | 24 VDC | Connector, 3-pole (2 + PE) | 2.64 |
| R901338799 | WE6../E | Symbol EA | 24 VDC | Connector, 3-pole (2 + PE) | 1.64 |
| R901079031 | WE6../E | Symbol EA | 24 VDC | Connector, 3-pole (2 + PE) | 1.66 |
| R900748760 | WE6../E | Symbol EA | 24 VDC | Connector, 3-pole (2 + PE) | 1.66 |
| R901338804 | WE6../E | Symbol EA | 24 VDC | Connector, 3-pole (2 + PE) | 1.64 |
| R900926560 | WE6../E | Symbol EA | 24 VDC | Connector, 3-pole (2 + PE) | 1.66 |
| R900707271 | WE6../E | Symbol EA | 24 VDC | Connector, 3-pole (2 + PE) | 1.44 |
| R901490767 | WE6../E | Symbol E | 24 VDC | Connector, 3-pole (2 + PE) | 1.48 |
| R901129199 | WE6../E | Symbol EA | 24 VDC | Connector, 3-pole (2 + PE) | 1.42 |
| R900926155 | WE6../E | Symbol EA | 24 VDC | Connector, 3-pole (2 + PE) | 1.45 |
| R900960849 | WE6../E | Symbol EA | 24 VDC | Connector, 3-pole (2 + PE) | 1.21 |
| R901476710 | WE6../E | Symbol EA | 24 VDC | Connector, 3-pole (2 + PE) | 1.8 |
| R901356656 | WE6../E | Symbol EA | 24 VDC | Connector, 3-pole (2 + PE) | 1.44 |
Common to all listed parts
| Connection diagram | ISO 4401-03-02-0-05 |
| Operating pressure, max. [bar] | 350.0 |
| Size | 6 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Number of switching positions | 2 |
