Directional on/off valve Parts
Compare Directional on/off valve
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Operating pressure, max. [bar] | Max. flow [l/min] | Supply voltage | Weight [kg] |
|---|---|---|---|---|---|
| R900910127 | WE6../E | 350.0 | 80.0 | 110 VDC | 1.8 |
| R901314178 | WE6../E | 350.0 | 80.0 | 110 VDC | 2.25 |

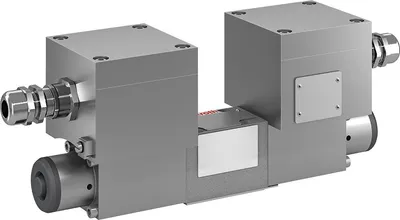

| R901276506 | WE6../.B.XD | 315.0 | 50.0 | 24 VDC | 9.42 |

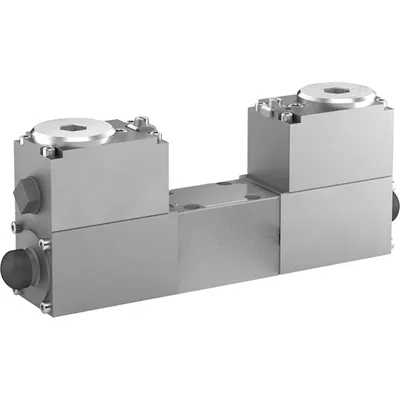

| R901478841 | WE 6../.B..VP1 | 350.0 | 70.0 | 24 VDC | 5.92 |

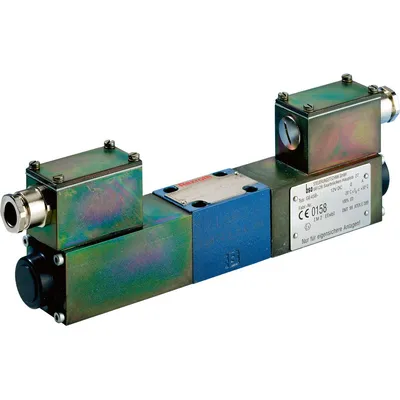

| R901344533 | WE6../.B.X | 210.0 | 20.0 | 12 VDC | 4.31 |
| R900926965 | WE6../E | 350.0 | 40.0 | 230 VAC 50/60Hz | 1.3 |
| R900976164 | WE6../E | 350.0 | 40.0 | 110…120 VAC | 1.32 |
| R901537702 | WE6../E | 350.0 | — | 110 - 120 VAC | 1.32 |
| R900906930 | WE6../E | 350.0 | 40.0 | 110…120 VAC | 1.3 |
| R900906020 | WE6../E | 350.0 | 40.0 | 110…120 VAC | 1.41 |
| R900727062 | WE6../E | 350.0 | 40.0 | 110…120 VAC | 1.8 |
| R901146233 | WE6../E | 350.0 | 40.0 | 110…120 VAC | 1.48 |
| R900787795 | WE6../E | 350.0 | 40.0 | 100 VAC 50/60Hz | 1.38 |
| R901178054 | WE6../E | 350.0 | 80.0 | 96 VDC | 1.42 |
| R901192374 | WE 6…E..XE | 350.0 | — | 24 VDC | 2.58 |
| R900782184 | WE6../E | 350.0 | 80.0 | 24 VDC | 1.46 |
| R901363353 | WE6../E | 350.0 | — | 24 VDC | 1.46 |
| R901385499 | WE6../E | 350.0 | 80.0 | 24 VDC | 1.64 |
| R900929635 | WE6../E | 350.0 | 80.0 | 24 VDC | 1.44 |
| R901561725 | WE6../E | 350.0 | — | 24 VDC | 1.5 |
| R900561285 | WE6../E | 350.0 | 80.0 | 24 VDC | 1.44 |
| R901271514 | WE6../E | 350.0 | 80.0 | 24 VDC | 1.8 |
| R901184520 | WE6../E | 350.0 | 80.0 | 24 VDC | 1.64 |
| R900971290 | WE6../E | 350.0 | 80.0 | 24 VDC | 1.64 |
Common to all listed parts
| Connection diagram | ISO 4401-03-02-0-05 |
| Size | 6 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
